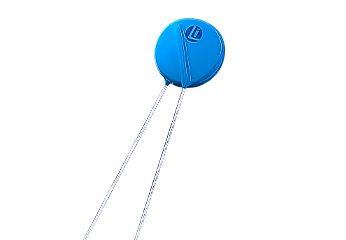

高通流TVS

———

HP6KA-L-SD16

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP6KA-12CL-SD16	8.5 12	14.0 16.0	1	28	6000	5	Axial Lead	预览	样片与订购
HP6KA-15CL-SD16	11 15	17.0 19.0	1	30	6000	5	Axial Lead	预览	样片与订购
HP6KA-20CL-SD16	14 20	22.0 24.5	1	40	6000	5	Axial Lead	预览	样片与订购
HP6KA-25CL-SD16	17 25	28.0 31.0	1	50	6000	5	Axial Lead	预览	样片与订购
HP6KA-30CL-SD16	21 30	33.0 36.5	1	60	6000	5	Axial Lead	预览	样片与订购
HP6KA-33CL-SD16	23 33	35.0 39.0	1	66	6000	5	Axial Lead	预览	样片与订购
HP6KA-38CL-SD16	27 38	40.5 49.5	1	69	6000	5	Axial Lead	预览	样片与订购
HP6KA-42CL-SD16	30 42	47.0 52.0	1	77	6000	5	Axial Lead	预览	样片与订购
HP6KA-58CL-SD16	40 58	64.0 72.0	1	110	6000	5	Axial Lead	预览	样片与订购
HP6KA-66CL-SD16	45 66	70.0 77.5	1	125	6000	5	Axial Lead	预览	样片与订购
HP6KA-76CL-SD16	54 76	85.0 94.0	1	140	6000	5	Axial Lead	预览	样片与订购
HP6KA-100CL-SD16	72 100	110.0 121.5	1	165	6000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP6KA-L-D16

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP6KA-12CL-D16	8.5 12	14.0 16.0	1	28	6000	5	Axial Lead	预览	样片与订购
HP6KA-15CL-D16	11 15	17.0 19.0	1	30	6000	5	Axial Lead	预览	样片与订购
HP6KA-20CL-D16	14 20	22.0 24.5	1	40	6000	5	Axial Lead	预览	样片与订购
HP6KA-25CL-D16	17 25	28.0 31.0	1	50	6000	5	Axial Lead	预览	样片与订购
HP6KA-30CL-D16	21 30	33.0 36.5	1	60	6000	5	Axial Lead	预览	样片与订购
HP6KA-33CL-D16	23 33	35.0 39.0	1	66	6000	5	Axial Lead	预览	样片与订购
HP6KA-38CL-D16	27 38	40.5 49.5	1	69	6000	5	Axial Lead	预览	样片与订购
HP6KA-42CL-D16	30 42	47.0 52.0	1	77	6000	5	Axial Lead	预览	样片与订购
HP6KA-58CL-D16	40 58	64.0 72.0	1	110	6000	5	Axial Lead	预览	样片与订购
HP6KA-66CL-D16	45 66	70.0 77.5	1	125	6000	5	Axial Lead	预览	样片与订购
HP6KA-76CL-D16	54 76	85.0 94.0	1	140	6000	5	Axial Lead	预览	样片与订购
HP6KA-100CL-D16	72 100	110.0 121.5	1	165	6000	5	Axial Lead	预览	样片与订购
HP6KA-133CL-D16	100 133	147.0 162.5	1	220	6000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP6KA-L-S

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP6KA-12CL-S	8.5 12	14.0 16.0	1	28	5	6000	Axial Lead	预览	样片与订购
HP6KA-15CL-S	11 15	17.0 9.0	1	30	5	6000	Axial Lead	预览	样片与订购
HP6KA-20CL-S	14 20	22.0 24.5	1	40	5	6000	Axial Lead	预览	样片与订购
HP6KA-25CL-S	17 25	28.0 31.0	1	50	5	6000	Axial Lead	预览	样片与订购
HP6KA-30CL-S	21 30	33.0 36.5	1	60	5	6000	Axial Lead	预览	样片与订购
HP6KA-33CL-S	23 33	35.0 39.0	1	66	5	6000	Axial Lead	预览	样片与订购
HP6KA-38CL-S	27 38	40.5 49.5	1	69	5	6000	Axial Lead	预览	样片与订购
HP6KA-42CL-S	30 42	47.0 52.0	1	77	5	6000	Axial Lead	预览	样片与订购
HP6KA-58CL-S	40 58	64.0 72.0	1	110	5	6000	Axial Lead	预览	样片与订购
HP6KA-66CL-S	45 66	70.0 77.5	1	125	5	6000	Axial Lead	预览	样片与订购
HP6KA-76CL-S	54 76	85.0 94.0	1	140	5	6000	Axial Lead	预览	样片与订购
HP6KA-100CL-S	72 100	110.0 121.5	1	165	5	6000	Axial Lead	预览	样片与订购
HP6KA-133CL-S	100 133	147.0 162.5	1	220	5	6000	Axial Lead	预览	样片与订购
HP6KA-150CL-S	105 150	165.0 182.5	1	240	5	6000	Axial Lead	预览	样片与订购
HP6KA-170CL-S	130 170	180.0 199.0	1	260	5	6000	Axial Lead	预览	样片与订购
HP6KA-190CL-S	145 190	200.0 221.0	1	290	5	6000	Axial Lead	预览	样片与订购
HP6KA-200CL-S	150 200	222.0 245.5	1	330	5	6000	Axial Lead	预览	样片与订购
HP6KA-240CL-S	180 240	250.0 276.5	1	340	5	6000	Axial Lead	预览	样片与订购

高通流TVS

———

HP3KA-L-D16

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP3KA-12CL-D16	8.5 12	14.0 16.0	1	28	3000	5	Axial Lead	预览	样片与订购
HP3KA-20CL-D16	14 20	22.0 24.5	1	40	3000	5	Axial Lead	预览	样片与订购
HP3KA-25CL-D16	17 25	28.0 31.0	1	50	3000	5	Axial Lead	预览	样片与订购
HP3KA-30CL-D16	21 30	33.0 36.5	1	60	3000	5	Axial Lead	预览	样片与订购
HP3KA-33CL-D16	23 33	35.0 39.0	1	66	3000	5	Axial Lead	预览	样片与订购
HP3KA-38CL-D16	27 38	40.5 49.5	1	69	3000	5	Axial Lead	预览	样片与订购
HP3KA-42CL-D16	30 42	47.0 52.0	1	77	3000	5	Axial Lead	预览	样片与订购
HP3KA-58CL-D16	40 58	64.0 72.0	1	110	3000	5	Axial Lead	预览	样片与订购
HP3KA-66CL-D16	45 66	70.0 77.5	1	125	3000	5	Axial Lead	预览	样片与订购
HP3KA-76CL-D16	54 76	85.0 94.0	1	140	3000	5	Axial Lead	预览	样片与订购
HP3KA-100CL-D16	72 100	110.0 121.5	1	165	3000	5	Axial Lead	预览	样片与订购
HP3KA-133CL-D16	100 133	147.0 162.5	1	220	3000	5	Axial Lead	预览	样片与订购
HP3KA-150CL-D16	105 150	165.0 182.5	1	240	3000	5	Axial Lead	预览	样片与订购
HP3KA-170CL-D16	130 170	180.0 199.0	1	260	3000	5	Axial Lead	预览	样片与订购
HP3KA-190CL-D16	145 190	200.0 221.0	1	290	3000	5	Axial Lead	预览	样片与订购
HP3KA-200CL-D16	150 200	222.0 245.5	1	330	3000	5	Axial Lead	预览	样片与订购
HP3KA-240CL-D16	180 240	250.0 276.5	1	340	3000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP3KA-L-S

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP3KA-12CL-S	8.5 12	14.0 160	1	28	3000	5	Axial Lead	预览	样片与订购
HP3KA-15CL-S	11 15	17.0 19.0	1	30	3000	5	Axial Lead	预览	样片与订购
HP3KA-20CL-S	14 20	22.0 24.5	1	40	3000	5	Axial Lead	预览	样片与订购
HP3KA-25CL-S	17 25	28.0 31.0	1	50	3000	5	Axial Lead	预览	样片与订购
HP3KA-30CL-S	21 30	33.0 36.5	1	60	3000	5	Axial Lead	预览	样片与订购
HP3KA-33CL-S	23 33	35.0 39.0	1	66	3000	5	Axial Lead	预览	样片与订购
HP3KA-38CL-S	27 38	40.5 49.5	1	69	3000	5	Axial Lead	预览	样片与订购
HP3KA-42CL-S	30 42	47.0 52.0	1	77	3000	5	Axial Lead	预览	样片与订购
HP3KA-58CL-S	40 58	64.0 72.0	1	110	3000	5	Axial Lead	预览	样片与订购
HP3KA-66CL-S	45 66	70.0 77.5	1	125	3000	5	Axial Lead	预览	样片与订购
HP3KA-76CL-S	54 76	85.0 94.0	1	140	3000	5	Axial Lead	预览	样片与订购
HP3KA-100CL-S	72 100	110.0 121.5	1	165	3000	5	Axial Lead	预览	样片与订购
HP3KA-133CL-S	100 133	147.0 162.5	1	220	3000	5	Axial Lead	预览	样片与订购
HP3KA-150CL-S	105 150	165.0 182.5	1	240	3000	5	Axial Lead	预览	样片与订购
HP3KA-170CL-S	130 170	180.0 199.0	1	260	3000	5	Axial Lead	预览	样片与订购
HP3KA-190CL-S	145 190	200.0 221.0	1	290	3000	5	Axial Lead	预览	样片与订购
HP3KA-200CL-S	150 200	222.0 245.5	1	330	3000	5	Axial Lead	预览	样片与订购
HP3KA-240CL-S	180 240	250 276.5	1	340	3000	5	Axial Lead	预览	样片与订购

工业级TVS

———

SM4F

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
		6.4 7.0			43.6	500	SOD-123FL	预览	样片与订购
SM4F64A	64.0	71.1 78.6	1	103.0	3.9	1	SOD-123FL	预览	样片与订购
SM4F60A	60.0	66.7 73.7	1	96.8	4.1	1	SOD-123FL	预览	样片与订购
SM4F58A	58.0	64.4 71.2	1	93.6	4.3	1	SOD-123FL	预览	样片与订购
SM4F54A	54.0	60.0 66.3	1	87.1	4.6	1	SOD-123FL	预览	样片与订购
SM4F51A	51.0	56.7 62.7	1	82.4	4.9	1	SOD-123FL	预览	样片与订购
SM4F48A	48.0	53.3 58.9	1	77.4	5.2	1	SOD-123FL	预览	样片与订购
SM4F45A	45.0	50.0 55.3	1	72.7	5.5	1	SOD-123FL	预览	样片与订购
SM4F43A	43.0	47.8 52.8	1	69.4	5.8	1	SOD-123FL	预览	样片与订购
SM4F40A SM4F40CA	40.0	44.4 49.1	1	64.5	6.2	1	SOD-123FL	预览	样片与订购
SM4F36A SM4F36CA	36.0	40.0 44.2	1	58.1	7.0	1	SOD-123FL	预览	样片与订购
SM4F33A SM4F33CA	33.0	36.7 40.6	1	53.3	7.6	1	SOD-123FL	预览	样片与订购
SM4F30A SM4F30CA	30.0	33.3 36.8	1	48.4	8.4	1	SOD-123FL	预览	样片与订购
SM4F28A SM4F28CA	28.0	31.1 34.4	1	45.4	8.8	1	SOD-123FL	预览	样片与订购
SM4F26A SM4F26CA	26.0	28.9 31.9	1	42.1	9.6	1	SOD-123FL	预览	样片与订购
SM4F24A SM4F24CA	24.0	26.7 29.5	1	38.9	10.4	1	SOD-123FL	预览	样片与订购
SM4F22A SM4F22CA	22.0	24.4 26.9	1	35.5	11.4	1	SOD-123FL	预览	样片与订购
SM4F20A SM4F20CA	20.0	22.2 24.5	1	32.4	12.4	1	SOD-123FL	预览	样片与订购
SM4F18A SM4F18CA	18.0	20.0 22.1	1	29.2	13.8	1	SOD-123FL	预览	样片与订购
SM4F17A SM4F17CA	17.0	18.9 20.9	1	27.6	14.6	1	SOD-123FL	预览	样片与订购
SM4F16A SM4F16CA	16.0	17.8 19.7	1	26.0	15.4	1	SOD-123FL	预览	样片与订购
SM4F15A SM4F15CA	15.0	16.7 18.5	1	24.4	16.4	1	SOD-123FL	预览	样片与订购
SM4F14A SM4F14CA	14.0	15.6 17.2	1	23.2	17.2	1	SOD-123FL	预览	样片与订购
SM4F12A SM4F12CA	12.0	13.3 14.7	1	19.9	20.2	1	SOD-123FL	预览	样片与订购
SM4F11A SM4F11CA	11.0	12.2 13.5	1	18.2	22.0	3	SOD-123FL	预览	样片与订购
SM4F10A SM4F10CA	10.0	11.1 12.3	1	17.0	23.6	5	SOD-123FL	预览	样片与订购
SM4F9.0A SM4F9.0CA	9.0	10.0 11.1	1	15.4	26.0	10	SOD-123FL	预览	样片与订购
SM4F8.5A SM4F8.5CA	8.5	9.44 10.4	1	14.4	27.8	20	SOD-123FL	预览	样片与订购
SM4F8.0A SM4F8.0CA	8.0	8.89 9.83	1	13.6	29.4	50	SOD-123FL	预览	样片与订购
SM4F7.5A SM4F7.5CA	7.5	8.33 9.21	1	12.9	31.0	100	SOD-123FL	预览	样片与订购
SM4F7.0A SM4F7.0CA	7.0	7.78 8.6	10	12.0	33.4	200	SOD-123FL	预览	样片与订购
SM4F6.5A SM4F6.5CA	6.5	7.22 7.98	10	11.2	35.8	350	SOD-123FL	预览	样片与订购
SM4F6.0A SM4F6.0CA	6.0	6.67 7.37	10	10.3	38.8	400	SOD-123FL	预览	样片与订购
SM4F5.0A SM4F5.0CA	5.0	6.4 7.0	10	9.2	43.6	500	SOD-123FL	预览	样片与订购

高通流TVS

———

HP-D

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP10KA-190CD	145 190	200 221	1	290	10000	5	Cell	预览	样片与订购
HP10KA-170CD	130 170	180 199	1	260	10000	5	Cell	预览	样片与订购
HP10KA-150CD	105 150	165 182.5	1	240	10000	5	Cell	预览	样片与订购
HP10KA-133CD	100 133	147 162.5	1	220	10000	5	Cell	预览	样片与订购
HP10KA-100CD	72 100	110 121.5	1	165	10000	5	Cell	预览	样片与订购
HP10KA-76CD	54 76	85 94	1	140	10000	5	Cell	预览	样片与订购
HP10KA-66CD	45 66	70 77.5	1	125	10000	5	Cell	预览	样片与订购
HP10KA-58CD	40 58	64 72	1	110	10000	5	Cell	预览	样片与订购
HP10KA-42CD	30 42	47 52	1	77	10000	5	Cell	预览	样片与订购
HP10KA-38CD	27 38	40.5 49.5	1	69	10000	5	Cell	预览	样片与订购
HP10KA-33CD	23 33	35 39	1	66	10000	5	Cell	预览	样片与订购
HP10KA-30CD	21 30	33 36.5	1	60	10000	5	Cell	预览	样片与订购
HP10KA-25CD	17 25	28 31	1	50	10000	5	Cell	预览	样片与订购
HP10KA-20CD	14 20	22 24.5	1	40	10000	5	Cell	预览	样片与订购
HP10KA-15CD	11 15	17 19	1	30	10000	5	Cell	预览	样片与订购
HP10KA-12CD	8.5 12	14 16	1	28	10000	5	Cell	预览	样片与订购
HP6KA-650CD	460 650	680 751.5	1	900	6000	5	Cell	预览	样片与订购
HP6KA-500CD	385 500	558 617	1	868	6000	5	Cell	预览	样片与订购
HP6KA-460CD	330 460	500 552.5	1	770	6000	5	Cell	预览	样片与订购
HP6KA-430CD	310 430	440 486.5	1	625	6000	5	Cell	预览	样片与订购
HP6KA-380CD	275 380	401 443.5	1	520	6000	5	Cell	预览	样片与订购
HP6KA-300CD	230 300	330 365	1	470	6000	5	Cell	预览	样片与订购
HP6KA-275CD	210 275	300 331.5	1	435	6000	5	Cell	预览	样片与订购
HP6KA-240CD	180 240	250 276.5	1	340	6000	5	Cell	预览	样片与订购
HP6KA-200CD	150 200	222 245.5	1	330	6000	5	Cell	预览	样片与订购
HP6KA-190CD	145 190	200 221	1	290	6000	5	Cell	预览	样片与订购
HP6KA-170CD	130 170	180 199	1	260	6000	5	Cell	预览	样片与订购
HP6KA-150CD	105 150	165 182.5	1	240	6000	5	Cell	预览	样片与订购
HP6KA-133CD	100 133	147 162.5	1	220	6000	5	Cell	预览	样片与订购
HP6KA-100CD	72 100	110 121.5	1	165	6000	5	Cell	预览	样片与订购
HP6KA-76CD	54 76	85 94	1	140	6000	5	Cell	预览	样片与订购
HP6KA-66CD	45 66	70 77.5	1	125	6000	5	Cell	预览	样片与订购
HP6KA-58CD	40 58	64 72	1	110	6000	5	Cell	预览	样片与订购
HP6KA-42CD	30 42	47 52	1	77	6000	5	Cell	预览	样片与订购
HP6KA-38CD	27 38	40.5 49.5	1	69	6000	5	Cell	预览	样片与订购
HP6KA-33CD	23 33	35 39	1	66	6000	5	Cell	预览	样片与订购
HP6KA-30CD	21 30	33 36.5	1	60	6000	5	Cell	预览	样片与订购
HP6KA-25CD	17 25	28 31	1	50	6000	5	Cell	预览	样片与订购
HP6KA-15CD	11 15	17 19	1	30	6000	5	Cell	预览	样片与订购
HP6KA-12CD	8.5 12	14 16	1	28	6000	5	Cell	预览	样片与订购

高通流TVS

———

HP-C

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP20KA-42CC	30 42	47 52	1	77	20000	5	Cell	预览	样片与订购
HP20KA-38CC	27 38	40.5 49.5	1	69	20000	5	Cell	预览	样片与订购
HP20KA-33CC	23 33	35 39	1	66	20000	5	Cell	预览	样片与订购
HP20KA-30CC	21 30	33 36.5	1	60	20000	5	Cell	预览	样片与订购
HP20KA-25CC	17 25	28 31	1	50	20000	5	Cell	预览	样片与订购
HP20KA-20CC	14 20	22 24.5	1	40	20000	5	Cell	预览	样片与订购
HP20KA-15CC	11 15	17 19	1	30	20000	5	Cell	预览	样片与订购
HP20KA-12CC	8.5 12	14 16	1	28	20000	5	Cell	预览	样片与订购
HP16KA-460CC	330 460	500 552.5	1	770	16000	5	Cell	预览	样片与订购
HP16KA-430CC	310 430	440 486.5	1	625	16000	5	Cell	预览	样片与订购
HP16KA-380CC	275 380	401 443.5	1	520	16000	5	Cell	预览	样片与订购
HP16KA-300CC	230 300	330 365	1	470	16000	5	Cell	预览	样片与订购
HP16KA-275CC	210 275	300 331.5	1	435	16000	5	Cell	预览	样片与订购
HP16KA-240CC	180 240	250 276.5	1	340	16000	5	Cell	预览	样片与订购
HP16KA-200CC	150 200	222 245.5	1	330	16000	5	Cell	预览	样片与订购
HP16KA-190CC	145 190	200 221	1	290	16000	5	Cell	预览	样片与订购
HP16KA-170CC	130 170	180 199	1	260	16000	5	Cell	预览	样片与订购
HP16KA-150CC	105 150	165 182.5	1	240	16000	5	Cell	预览	样片与订购
HP16KA-133CC	100 133	147 162.5	1	220	16000	5	Cell	预览	样片与订购
HP16KA-100CC	72 100	110 121.5	1	165	16000	5	Cell	预览	样片与订购
HP16KA-76CC	54 76	85 94	1	140	16000	5	Cell	预览	样片与订购
HP16KA-66CC	45 66	70 77.5	1	125	16000	5	Cell	预览	样片与订购
HP16KA-58CC	40 58	64 72	1	110	16000	5	Cell	预览	样片与订购
HP16KA-42CC	30 42	47 52	1	77	16000	5	Cell	预览	样片与订购
HP16KA-38CC	27 38	40.5 49.5	1	69	16000	5	Cell	预览	样片与订购
HP16KA-33CC	23 33	35 39	1	66	16000	5	Cell	预览	样片与订购
HP16KA-30CC	21 30	33 36.5	1	60	16000	5	Cell	预览	样片与订购
HP16KA-25CC	17 25	28 31	1	50	16000	5	Cell	预览	样片与订购
HP16KA-25CC	17 25	28 31	1	50	16000	5	Cell	预览	样片与订购
HP16KA-20CC	14 20	22 24.5	1	40	16000	5	Cell	预览	样片与订购
HP16KA-15CC	11 15	17 19	1	30	16000	5	Cell	预览	样片与订购
HP16KA-12CC	8.5 12	14 16	1	28	16000	5	Cell	预览	样片与订购
HP10KA-650CC	460 650	680 751.5	1	900	10000	5	Cell	预览	样片与订购
HP10KA-500CC	385 500	558 617	1	868	10000	5	Cell	预览	样片与订购
HP10KA-460CC	330 460	500 552.5	1	770	10000	5	Cell	预览	样片与订购
HP10KA-430CC	310 430	440 486.5	1	625	10000	5	Cell	预览	样片与订购
HP10KA-380CC	275 380	401 443.5	1	520	10000	5	Cell	预览	样片与订购
HP10KA-300CC	230 300	330 365	1	470	10000	5	Cell	预览	样片与订购
HP10KA-275CC	210 275	300 331.5	1	435	10000	5	Cell	预览	样片与订购
HP10KA-240CC	180 240	250 276.5	1	340	10000	5	Cell	预览	样片与订购
HP10KA-200CC	150 200	222 245.5	1	330	10000	5	Cell	预览	样片与订购
HP10KA-190CC	145 190	200 221	1	290	10000	5	Cell	预览	样片与订购
HP10KA-170CC	130 170	180 199	1	260	10000	5	Cell	预览	样片与订购
HP10KA-150CC	105 150	165 182.5	1	240	10000	5	Cell	预览	样片与订购
HP10KA-133CC	100 133	147 162.5	1	220	10000	5	Cell	预览	样片与订购
HP10KA-100CC	72 100	110 121.5	1	165	10000	5	Cell	预览	样片与订购
HP10KA-76CC	54 76	85 94	1	140	10000	5	Cell	预览	样片与订购
HP10KA-66CC	45 66	70 77.5	1	125	10000	5	Cell	预览	样片与订购
HP10KA-58CC	40 58	64 72	1	110	10000	5	Cell	预览	样片与订购
HP10KA-42CC	30 42	47 52	1	77	10000	5	Cell	预览	样片与订购
HP10KA-38CC	27 38	40.5 49.5	1	69	10000	5	Cell	预览	样片与订购
HP10KA-33CC	23 33	35 39	1	66	10000	5	Cell	预览	样片与订购
HP10KA-30CC	21 30	33 36.5	1	60	10000	5	Cell	预览	样片与订购
HP10KA-25CC	17 25	28 31	1	50	10000	5	Cell	预览	样片与订购
HP10KA-20CC	14 20	22 24.5	1	40	10000	5	Cell	预览	样片与订购
HP10KA-15CC	11 15	17 19	1	30	10000	5	Cell	预览	样片与订购
HP10KA-12CC	8.5 12	14 16	1	28	10000	5	Cell	预览	样片与订购
HP6KA-650CC	460 650	680 751.5	1	900	6000	5	Cell	预览	样片与订购
HP6KA-500CC	385 500	558 617	1	868	6000	5	Cell	预览	样片与订购
HP6KA-460CC	330 460	500 552.5	1	770	6000	5	Cell	预览	样片与订购
HP6KA-430CC	310 430	440 486.5	1	625	6000	5	Cell	预览	样片与订购
HP6KA-380CC	275 380	401 443.5	1	520	6000	5	Cell	预览	样片与订购
HP6KA-300CC	230 300	330 365	1	470	6000	5	Cell	预览	样片与订购
HP6KA-275CC	210 275	300 331.5	1	435	6000	5	Cell	预览	样片与订购
HP6KA-240CC	180 240	250 276.5	1	340	6000	5	Cell	预览	样片与订购
HP6KA-200CC	150 200	222 245.5	1	330	6000	5	Cell	预览	样片与订购
HP6KA-190CC	145 190	200 221	1	290	6000	5	Cell	预览	样片与订购
HP6KA-170CC	130 170	180 199	1	260	6000	5	Cell	预览	样片与订购
HP6KA-150CC	105 150	165 182.5	1	240	6000	5	Cell	预览	样片与订购
HP6KA-133CC	100 133	147 162.5	1	220	6000	5	Cell	预览	样片与订购
HP6KA-100CC	72 100	110 121.5	1	165	6000	5	Cell	预览	样片与订购
HP6KA-76CC	54 76	85 94	1	140	6000	5	Cell	预览	样片与订购
HP6KA-66CC	45 66	70 77.5	1	125	6000	5	Cell	预览	样片与订购
HP6KA-58CC	40 58	64 72	1	110	6000	5	Cell	预览	样片与订购
HP6KA-42CC	30 42	47 52	1	77	6000	5	Cell	预览	样片与订购
HP6KA-38CC	27 38	40.5 49.5	1	69	6000	5	Cell	预览	样片与订购
HP6KA-33CC	23 33	35 39	1	66	6000	5	Cell	预览	样片与订购
HP6KA-30CC	21 30	33 36.5	1	60	6000	5	Cell	预览	样片与订购
HP6KA-25CC	17 25	28 31	1	50	6000	5	Cell	预览	样片与订购

高通流TVS

———

HP20KA-L

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP20KA-42CL	30 42	47 52	1	77	20000	5	Axial Lead	预览	样片与订购
HP20KA-38CL	27 38	40.5 49.5	1	69	20000	5	Axial Lead	预览	样片与订购
HP20KA-33CL	23 33	35 39	1	66	20000	5	Axial Lead	预览	样片与订购
HP20KA-30CL	21 30	33 36.5	1	60	20000	5	Axial Lead	预览	样片与订购
HP20KA-25CL	17 25	28 31	1	50	20000	5	Axial Lead	预览	样片与订购
HP20KA-20CL	14 20	22 24.5	1	40	20000	5	Axial Lead	预览	样片与订购
HP20KA-15CL	11 15	17 19	1	30	20000	5	Axial Lead	预览	样片与订购
HP20KA-12CL	8.5 12	14 16	1	28	20000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP16KA-L

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP16KA-460CL	330 460	500 552.5	1	770	16000	5	Axial Lead	预览	样片与订购
HP16KA-430CL	310 430	440 486.5	1	625	16000	5	Axial Lead	预览	样片与订购
HP16KA-380CL	275 380	401 443.5	1	520	16000	5	Axial Lead	预览	样片与订购
HP16KA-300CL	230 300	330 365	1	470	16000	5	Axial Lead	预览	样片与订购
HP16KA-275CL	210 275	300 331.5	1	435	16000	5	Axial Lead	预览	样片与订购
HP16KA-240CL	180 240	250 276.5	1	340	16000	5	Axial Lead	预览	样片与订购
HP16KA-200CL	150 200	222 245.5	1	330	16000	5	Axial Lead	预览	样片与订购
HP16KA-190CL	145 190	200 221	1	290	16000	5	Axial Lead	预览	样片与订购
HP16KA-170CL	130 170	180 199	1	260	16000	5	Axial Lead	预览	样片与订购
HP16KA-150CL	105 150	165 182.5	1	240	16000	5	Axial Lead	预览	样片与订购
HP16KA-133CL	100 133	147 162.5	1	220	16000	5	Axial Lead	预览	样片与订购
HP16KA-100CL	72 100	110 121.5	1	165	16000	5	Axial Lead	预览	样片与订购
HP16KA-76CL	54 76	85 94	1	140	16000	5	Axial Lead	预览	样片与订购
HP16KA-66CL	45 66	70 77.5	1	125	16000	5	Axial Lead	预览	样片与订购
HP16KA-58CL	40 58	64 72	1	110	16000	5	Axial Lead	预览	样片与订购
HP16KA-42CL	30 42	47 52	1	77	16000	5	Axial Lead	预览	样片与订购
HP16KA-38CL	27 38	40.5 49.5	1	69	16000	5	Axial Lead	预览	样片与订购
HP16KA-33CL	23 33	35 39	1	66	16000	5	Axial Lead	预览	样片与订购
HP16KA-30CL	21 30	33 36.5	1	60	16000	5	Axial Lead	预览	样片与订购
HP16KA-25CL	17 25	28 31	1	50	16000	5	Axial Lead	预览	样片与订购
HP16KA-20CL	14 20	22 24.5	1	40	16000	5	Axial Lead	预览	样片与订购
HP16KA-15CL	11 15	17 19	1	30	16000	5	Axial Lead	预览	样片与订购
HP16KA-12CL	8.5 12	14 16	1	28	16000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP10KA-L

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP10KA-650CL	460 650	680 751.5	1	900	10000	5	Axial Lead	预览	样片与订购
HP10KA-500CL	385 500	558 617	1	868	10000	5	Axial Lead	预览	样片与订购
HP10KA-460CL	330 460	500 552.5	1	770	10000	5	Axial Lead	预览	样片与订购
HP10KA-430CL	310 430	440 486.5	1	625	10000	5	Axial Lead	预览	样片与订购
HP10KA-395CL	280 395	440 490	1	540	10000	5	Axial Lead	预览	样片与订购
HP10KA-380CL	275 380	401 443.5	1	520	10000	5	Axial Lead	预览	样片与订购
HP10KA-300CL	230 300	330 365	1	470	10000	5	Axial Lead	预览	样片与订购
HP10KA-275CL	210 275	300 331.5	1	435	10000	5	Axial Lead	预览	样片与订购
HP10KA-240CL	180 240	250 276.5	1	340	10000	5	Axial Lead	预览	样片与订购
HP10KA-200CL	150 200	222 245.5	1	330	10000	5	Axial Lead	预览	样片与订购
HP10KA-190CL	145 190	200 221	1	290	10000	5	Axial Lead	预览	样片与订购
HP10KA-170CL	130 170	180 199	1	260	10000	5	Axial Lead	预览	样片与订购
HP10KA-150CL	105 150	165 182.5	1	240	10000	5	Axial Lead	预览	样片与订购
HP10KA-133CL	100 133	147 162.5	1	220	10000	5	Axial Lead	预览	样片与订购
HP10KA-105CL	75 105	115 130	1	175	10000	5	Axial Lead	预览	样片与订购
HP10KA-100CL	72 100	110 121.5	1	165	10000	5	Axial Lead	预览	样片与订购
HP10KA-76CL	54 76	85 94	1	140	10000	5	Axial Lead	预览	样片与订购
HP10KA-66CL	45 66	70 77.5	1	125	10000	5	Axial Lead	预览	样片与订购
HP10KA-58CL	40 58	64 72	1	110	10000	5	Axial Lead	预览	样片与订购
HP10KA-42CL	30 42	47 52	1	77	10000	5	Axial Lead	预览	样片与订购
HP10KA-38CL	27 38	40.5 49.5	1	69	10000	5	Axial Lead	预览	样片与订购
HP10KA-33CL	23 33	35 39	1	66	10000	5	Axial Lead	预览	样片与订购
HP10KA-30CL	21 30	33 36.5	1	60	10000	5	Axial Lead	预览	样片与订购
HP10KA-25CL	17 25	28 31	1	50	10000	5	Axial Lead	预览	样片与订购
HP10KA-20CL	14 20	22 24.5	1	40	10000	5	Axial Lead	预览	样片与订购
HP10KA-15CL	11 15	17 19	1	30	10000	5	Axial Lead	预览	样片与订购
HP10KA-12CL	8.5 12	14 16	1	28	10000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP6KA-L

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP6KA-650CL	460 650	680 751.5	1	900	10000	5	Axial Lead	预览	样片与订购
HP6KA-500CL	385 500	558 617	1	868	6000	5	Axial Lead	预览	样片与订购
HP6KA-460CL	330 460	500 552.5	1	770	6000	5	Axial Lead	预览	样片与订购
HP6KA-430CL	310 430	440 486.5	1	625	6000	5	Axial Lead	预览	样片与订购
HP6KA-380CL	275 380	401 443.5	1	520	6000	5	Axial Lead	预览	样片与订购
HP6KA-300CL	230 300	330 365	1	470	6000	5	Axial Lead	预览	样片与订购
HP6KA-275CL	210 275	300 331.5	1	435	6000	5	Axial Lead	预览	样片与订购
HP6KA-240CL	180 240	250 276.5	1	340	6000	5	Axial Lead	预览	样片与订购
HP6KA-200CL	150 200	222 245.5	1	330	6000	5	Axial Lead	预览	样片与订购
HP6KA-190CL	145 190	200 221	1	290	6000	5	Axial Lead	预览	样片与订购
HP6KA-170CL	130 170	180 199	1	260	6000	5	Axial Lead	预览	样片与订购
HP6KA-150CL	105 150	165 182.5	1	240	6000	5	Axial Lead	预览	样片与订购
HP6KA-133CL	100 133	147 162.5	1	220	6000	5	Axial Lead	预览	样片与订购
HP6KA-100CL	72 100	110 121.5	1	165	6000	5	Axial Lead	预览	样片与订购
HP6KA-76CL	54 76	85 94	1	140	6000	5	Axial Lead	预览	样片与订购
HP6KA-66CL	45 66	70 77.5	1	125	6000	5	Axial Lead	预览	样片与订购
HP6KA-58CL	40 58	64 72	1	110	6000	5	Axial Lead	预览	样片与订购
HP6KA-42CL	30 42	47 52	1	77	6000	5	Axial Lead	预览	样片与订购
HP6KA-38CL	27 38	40.5 49.5	1	69	6000	5	Axial Lead	预览	样片与订购
HP6KA-33CL	23 33	35 39	1	66	6000	5	Axial Lead	预览	样片与订购
HP6KA-30CL	21 30	33 36.5	1	60	6000	5	Axial Lead	预览	样片与订购
HP6KA-25CL	17 25	28 31	1	50	6000	5	Axial Lead	预览	样片与订购
HP6KA-20CL	14 20	22 24.5	1	40	6000	5	Axial Lead	预览	样片与订购
HP6KA-15CL	11 15	17 19	1	30	6000	5	Axial Lead	预览	样片与订购
HP6KA-12CL	8.5 12	14 16	1	28	6000	5	Axial Lead	预览	样片与订购

高通流TVS

———

HP3KA-L

Part Number	Reverse Stand-Off Voltage VAC(V) VDC(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Current Rating @8/20μs IPP(A)	Reverse Leakage @VDC IR(μA)	Package	specification
HP3KA-1200CL	849 1200	1300 1502	1	2180	3000	5	Axial Lead	预览	样片与订购
HP3KA-1100CL	770 1100	1200 1326.5	1	2000	3000	5	Axial Lead	预览	样片与订购
HP3KA-650CL	460 650	680 751.5	1	900	3000	5	Axial Lead	预览	样片与订购
HP3KA-500CL	385 500	558 617	1	868	3000	5	Axial Lead	预览	样片与订购
HP3KA-460CL	330 460	500 552.5	1	770	3000	5	Axial Lead	预览	样片与订购
HP3KA-430CL	310 430	440 486.5	1	625	3000	5	Axial Lead	预览	样片与订购
HP3KA-380CL	275 380	401 443.5	1	520	3000	5	Axial Lead	预览	样片与订购
HP3KA-300CL	230 300	330 365	1	470	3000	5	Axial Lead	预览	样片与订购
HP3KA-275CL	210 275	300 331.5	1	435	3000	5	Axial Lead	预览	样片与订购
HP3KA-240CL	180 240	250 276.5	1	340	3000	5	Axial Lead	预览	样片与订购
HP3KA-200CL	150 200	222 245.5	1	330	3000	5	Axial Lead	预览	样片与订购
HP3KA-190CL	145 190	200 221	1	290	3000	5	Axial Lead	预览	样片与订购
HP3KA-170CL	130 170	180 199	1	260	3000	5	Axial Lead	预览	样片与订购
HP3KA-150CL	105 150	165 182.5	1	240	3000	5	Axial Lead	预览	样片与订购
HP3KA-133CL	100 133	147 162.5	1	220	3000	5	Axial Lead	预览	样片与订购
HP3KA-100CL	72 100	110 121.5	1	165	3000	5	Axial Lead	预览	样片与订购
HP3KA-76CL	54 76	85 94	1	140	3000	5	Axial Lead	预览	样片与订购
HP3KA-66CL	45 66	70 77.5	1	125	3000	5	Axial Lead	预览	样片与订购
HP3KA-58CL	40 58	64 72	1	110	3000	5	Axial Lead	预览	样片与订购
HP3KA-42CL	30 42	47 52	1	77	3000	5	Axial Lead	预览	样片与订购
HP3KA-38CL	27 38	40.5 49.5	1	69	3000	5	Axial Lead	预览	样片与订购
HP3KA-33CL	23 33	35 39	1	66	3000	5	Axial Lead	预览	样片与订购
HP3KA-30CL	21 30	33 36.5	1	60	3000	5	Axial Lead	预览	样片与订购
HP3KA-25CL	17 25	28 31	1	50	3000	5	Axial Lead	预览	样片与订购
HP3KA-20CL	14 20	22 24.5	1	40	3000	5	Axial Lead	预览	样片与订购
HP3KA-15CL	11 15	17 19	1	30	3000	5	Axial Lead	预览	样片与订购
HP3KA-12CL	8.5 12	14 16	1	28	3000	5	Axial Lead	预览	样片与订购

双向可控硅

———

LTH40-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH40 3Q	800	40	35mA/50mA	-40to+125	TO-3P/TO-247	预览	样片与订购

双向可控硅

———

LT41-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LT41 3Q	800	41	35mA/50mA	-40to+125	TO-3P/TO-247	预览	样片与订购

双向可控硅

———

LTH25-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH25 3Q	800	25	35mA/50mA	-40to+125	TO-263/TO-220C/ TO-220F/ITO-220	预览	样片与订购

双向可控硅

———

LTH20-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH20 3Q	800	20	35mA/50mA	-40to+125	TO-263/TO-220/ TO-220F/ITO-220	预览	样片与订购

双向可控硅

———

LTH16-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH16 3Q	800	16	35mA/50mA	-40to+150	TO-252/TO-220C/ TO-220F/ITO-220/ TO-263	预览	样片与订购

双向可控硅

———

LTH12-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH12 3Q	800	12	35mA/50mA	-40to+150	TO-252/TO-220/ TO-220F/ITO-220	预览	样片与订购

双向可控硅

———

LTH8-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH8 3Q	800	8	10mA/35mA	-40to+150	TO-252/TO-251/ TO-220/TO-220F/ ITO-220	预览	样片与订购

双向可控硅

———

LTH6-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH6 3Q	800	6	5mA/10mA	-40to+150	TO-252/TO-251/ TO-220/ITO-220/ TO-220F/TO-162	预览	样片与订购

双向可控硅

———

LTH4-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH4 3Q	800	4	5mA/10mA	-40to+150	TO-252/TO-251/ TO-220/ITO-220/ TO-220F/TO-162	预览	样片与订购

双向可控硅

———

LTH1-10

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH1 3Q	1000	1	5mA/10mA	-40to+150	TO-92/SOT-223/SO-89	预览	样片与订购

双向可控硅

———

LTH1-08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT3(mA)	Tj(℃)	Package	specification
LTH1 3Q	800	1	5mA/10mA	-40to+125	TO-92/SOT-223/SO-89	预览	样片与订购

单向可控硅

———

LC55

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT(mA)	Tj(℃)	Package	specification
LC55	800	55	50	-40to+125	TO-3P/ITO-3P	预览	样片与订购

单向可控硅

———

LC12

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT(mA)	Tj(℃)	Package	specification
LC12	800	12	10	-40to+125	TO-220/ITO-220	预览	样片与订购

单向可控硅

———

LC8

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT(mA)	Tj(℃)	Package	specification
LC8	800	8	10	-40to+125	TO-220/ITO-220	预览	样片与订购

单向可控硅

———

LC08

Part Number	VDRM/ VRRM(V)	IT(RMS)(A)	IGT(mA)	Tj(℃)	Package	specification
LC08	600	0.8	0.1	-40to+125	TO-92/SOT-223/SO-89/SOT-23	预览	样片与订购

TSS

———

Pxxx0SC

Part Number	Marking	VS @100KV/S V MAX	IS_LMT mA	VT @ IT V MAX	IT A	ID @ VD UA MAX	VD V	CO@1MHz,2VDC pF TYP	IH mA MIN	specification
P4500SC	P45C	550	800	4	2.2	5	400	45	120	预览	样片与订购
P3500SC	P35C	400	800	4	2.2	5	320	60	120	预览	样片与订购
P3100SC	P31C	350	800	4	2.2	5	275	65	120	预览	样片与订购
P2600SC	P26C	300	800	4	2.2	5	220	70	120	预览	样片与订购
P2300SC	P23B	260	800	4	2.2	5	190	75	120	预览	样片与订购
P1800SC	P18C	220	800	4	2.2	5	170	80	120	预览	样片与订购
P1500SC	P15C	180	800	4	2.2	5	140	85	120	预览	样片与订购
P1300SC	P13C	160	800	4	2.2	5	120	90	120	预览	样片与订购
P1100SC	P11C	130	800	4	2.2	5	90	90	120	预览	样片与订购
P0900SC	P09C	98	800	4	2.2	5	75	95	120	预览	样片与订购
P0720SC	P07C	88	800	4	2.2	5	65	95	120	预览	样片与订购
P0640SC	P06C	77	800	4	2.2	5	58	95	120	预览	样片与订购
P0300SC	P03C	40	500	4	2.2	5	25	100	40	预览	样片与订购
P0220SC	P02C	30	500	4	2.2	5	15	105	40	预览	样片与订购
P0080SC	E-8C	25	500	4	2.2	5	6	105	40	预览	样片与订购

TSS

———

Pxxx0SB

Part Number	Marking	VS @100KV/S V MAX	IS_LMT mA	VT @ IT V MAX	IT A	ID @ VD UA MAX	VD V	CO@1MHz,2VDC pF TYP	IH mA MIN	specification
P4500SB	P45B	530	800	4	2.2	5	400	36	120	预览	样片与订购
P3500SB	P35B	400	800	4	2.2	5	320	48	120	预览	样片与订购
P3100SB	P31B	350	800	4	2.2	5	275	52	120	预览	样片与订购
P2600SB	P26B	300	800	4	2.2	5	220	56	120	预览	样片与订购
P2300SB	P23B	260	800	4	2.2	5	190	60	120	预览	样片与订购
P1800SB	P18B	220	800	4	2.2	5	170	64	120	预览	样片与订购
P1500SB	P15B	180	800	4	2.2	5	140	68	120	预览	样片与订购
P1300SB	P13B	160	800	4	2.2	5	120	72	120	预览	样片与订购
P1100SB	P11B	130	800	4	2.2	5	90	72	120	预览	样片与订购
P0900SB	P09B	98	800	4	2.2	5	75	76	120	预览	样片与订购
P0720SB	P07B	88	800	4	2.2	5	65	76	120	预览	样片与订购
P0640SB	P06B	77	800	4	2.2	5	58	76	120	预览	样片与订购
P0300SB	P03B	40	500	4	2.2	5	25	80	40	预览	样片与订购
P0220SB	P02B	30	500	4	2.2	5	15	84	40	预览	样片与订购
P0080SB	P008B	25	500	4	2.2	5	6	84	40	预览	样片与订购

TSS

———

Pxxx0TA

Part Number	Marking	VS @100KV/S V MAX	IS_LMT mA	VT @ IT V MAX	IT A	ID @ VD UA MAX	VD V	CO@1MHz,2VDC pF TYP	IH mA MIN	specification
P4200TA	P42A	550	800	4	2.2	5	400	23	120	预览	样片与订购
P3500TA	P35A	400	800	4	2.2	5	320	30	120	预览	样片与订购
P3100TA	P31A	350	800	4	2.2	5	275	33	120	预览	样片与订购
P2600TA	P26A	300	800	4	2.2	5	220	35	120	预览	样片与订购
P2300TA	P23A	260	800	4	2.2	5	190	38	120	预览	样片与订购
P1800TA	P18A	220	800	4	2.2	5	170	40	120	预览	样片与订购
P1500TA	P15A	180	800	4	2.2	5	140	43	120	预览	样片与订购
P1300TA	P13A	160	800	4	2.2	5	120	45	120	预览	样片与订购
P1100TA	P11A	130	800	4	2.2	5	90	45	120	预览	样片与订购
P0900TA	P09A	98	800	4	2.2	5	75	48	120	预览	样片与订购
P0720TA	P07A	88	800	4	2.2	5	65	48	120	预览	样片与订购
P0640TA	P06A	77	800	4	2.2	5	58	48	120	预览	样片与订购
P0300TA	P03A	40	500	4	2.2	5	25	50	30	预览	样片与订购
P0220TA	P02A	30	500	4	2.2	5	15	53	30	预览	样片与订购
P0080TA	P008A	25	500	4	2.2	5	6	53	30	预览	样片与订购

单路ESD

———

LY523CA03

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523CA03	300	27	150	30	30	3.3		SOD-523	预览	样片与订购

多路ESD

———

LY563AA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY563AA05UL	100	5	0.8	25	20	5	5	SOT-563	预览	样片与订购

单路ESD

———

LY523AA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523AA05UL	75	5	0.8	25	20	5		SOD-523	预览	样片与订购

多路ESD

———

LY553AA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY553AA05	100	8	60	30	30	5	4	SOT-553	预览	样片与订购

单路ESD

———

LY523FA07

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523FA07	250	18	160	30	30	7		SOD-523	预览	样片与订购

多路ESD

———

LYT52AC05L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYT52AC05L	70	6	30	30	30	5	2	SOT-523	预览	样片与订购

单路ESD

———

LY523FA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523FA05	300	22	160	30	30	5		SOD-523	预览	样片与订购

多路ESD

———

LYT52AA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYT52AA05UL	80	5	0.8	25	20	5	2	SOT-523	预览	样片与订购

单路ESD

———

LY523DC05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523DC05	200	15	50	30	30	5		SOD-523	预览	样片与订购

多路ESD

———

LY363AA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY363AA05UL	75	5	0.8	30	25	5	5	SOT-363	预览	样片与订购

单路ESD

———

LY523DA15

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523DA15	320	10	50	30	30	15		SOD-523	预览	样片与订购

多路ESD

———

LY363AA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY363AA05	100	8	60	30	30	5	5	SOT-363	预览	样片与订购

单路ESD

———

LY523BA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523BA05	100	8	60	30	30	5		SOD-523	预览	样片与订购

单路ESD

———

LY523AC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523AC05UL	100	4	0.5	25	22	5		SOD-523	预览	样片与订购

多路ESD

———

LY236EA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236EA05UL	500	25	5	30	30	5	5	SOT23-6	预览	样片与订购

单路ESD

———

LY523AC05L1

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523AC05L1	80	8	20	30	30	5		SOD-523	预览	样片与订购

多路ESD

———

LY236DA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236DA05UL	75	5	0.8	25	20	5	5	SOT23-6	预览	样片与订购

单路ESD

———

LY523AC05L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523AC05L	80	8	20	30	30	5		SOD-523	预览	样片与订购

多路ESD

———

LY236CA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236CA05UL	300	12	3	30	30	5	5	SOT23-6	预览	样片与订购

单路ESD

———

LY523AC03L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY523AC03L	80	8	25	30	30	3.3		SOD-523	预览	样片与订购

多路ESD

———

LY236AA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236AA05	100	8	60	30	30	5	5	SOT23-6	预览	样片与订购

单路ESD

———

LY323LA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY323LA05	1800	120	450	30	30	5		SOD-323	预览	样片与订购

多路ESD

———

LY236AA03UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236AA03UL	100	5	0.8	25	20	3.3	5	SOT23-6	预览	样片与订购

单路ESD

———

LY323EC03UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY323EC03UL	500	30	1	30	30	3.3		SOD-323	预览	样片与订购

单路ESD

———

LY323EA36

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY323EA36	500	6	35-45	15	8	36		SOD-323	预览	样片与订购

多路ESD

———

LY236DA05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236DA05	300	23	160	30	30	5	4	SOT23-6	预览	样片与订购

单路ESD

———

LY323DCXX

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	Package	specification
LY323DC36	300	4	12	30	30	36	SOD-323	预览	样片与订购
LY323DC24	300	5	15	30	30	24	SOD-323	预览	样片与订购
LY323DC18	500	13	60	30	30	18	SOD-323	预览	样片与订购
LY323DC15	450	18	1	30	30	15	SOD-323	预览	样片与订购
LY323DC12	300	12	32	30	30	12	SOD-323	预览	样片与订购
LY323DC05	300	20	80	30	30	5	SOD-323	预览	样片与订购
LY323DC03	300	25	100	30	30	3.3	SOD-323	预览	样片与订购

多路ESD

———

LY236BA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY236BA05UL	75	5	0.8	25	20	5	3	SOT23-6	预览	样片与订购

单路ESD

———

LY323DCXXUL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	Package	specification
LY323DC24UL	360	6	1	30	30	24	SOD-323	预览	样片与订购
LY323DC15UL	300	10	1	30	30	15	SOD-323	预览	样片与订购
LY323DC12UL	350	14	1	30	30	12	SOD-323	预览	样片与订购
LY323DC08UL	350	18	1	30	30	8	SOD-323	预览	样片与订购
LY323DC05UL	360	18	1	30	30	5	SOD-323	预览	样片与订购
LY323DC03UL	340	21	1	30	30	3.3	SOD-323	预览	样片与订购

多路ESD

———

LY712

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY712	325	13	40	30	30	7/12	2	SOT-23	预览	样片与订购

多路ESD

———

LY23EAXX

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY23EA36	300	4	35	30	30	36	2	SOT-23	预览	样片与订购
LY23EA24	270	6	40	30	30	24	2	SOT-23	预览	样片与订购
LY23EA15	300	10	48	30	30	15	2	SOT-23	预览	样片与订购
LY23EA12	350	13	40	30	30	12	2	SOT-23	预览	样片与订购
LY23EA05	320	23	160	30	30	5	2	SOT-23	预览	样片与订购
LY23EA03	300	25	200	30	30	3.3	2	SOT-23	预览	样片与订购

多路ESD

———

LY23DCXX

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY23DC36	300	4	20	30	30	36	2	SOT-23	预览	样片与订购
LY23DC24	300	5	30	30	30	24	2	SOT-23	预览	样片与订购
LY23DC15	300	8	40	30	30	15	2	SOT-23	预览	样片与订购
LY23DC12	300	12	50	30	30	12	2	SOT-23	预览	样片与订购
LY23DC05	300	20	80	30	30	5	2	SOT-23	预览	样片与订购
LY23DC03	300	25	100	30	30	3.3	2	SOT-23	预览	样片与订购

多路ESD

———

LY23DC24H1-Q

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY23DC24H1-Q	300	9	18	30	30	24	2	SOT-23	预览	样片与订购

多路ESD

———

LY23BA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY23BA05UL	80	5	0.8	25	20	5	2	SOT-23	预览	样片与订购
LY23BA05UL	80	5	0.8	25	20	5	2	SOT-23	预览	样片与订购

单路ESD

———

LY323DAXX

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	Package	specification
LY323DA36	300	4	35	30	30	36	SOD-323	预览	样片与订购
LY323DA24	300	5	60	30	30	24	SOD-323	预览	样片与订购
LY323DA15	300	10	70	30	30	15	SOD-323	预览	样片与订购
LY323DA12	300	12	80	30	30	12	SOD-323	预览	样片与订购
LY323DA08	300	18	120	30	30	8	SOD-323	预览	样片与订购
LY323DA05	300	25	160	30	30	5	SOD-323	预览	样片与订购
LY323DA03	300	25	160	30	30	3.3	SOD-323	预览	样片与订购

多路ESD

———

LY23AC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY23AC05UL	/	1	3	15	8	5	2	SOT-23	预览	样片与订购

多路ESD

———

LY143EA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY143EA05UL	400	20	6	30	30	5	3	SOT-143	预览	样片与订购

多路ESD

———

LY143DA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY143DA05UL	75	5	0.8	25	20	5	3	SOT-143	预览	样片与订购

多路ESD

———

LYA2.8-4

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYA2.8-4	600	30	3	30	30	2.8	4	SO-8	预览	样片与订购

多路ESD

———

LYS08LA03L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYS08LA03L	1800	100	25	30	30	3.3	2	SO-8	预览	样片与订购

单路ESD

———

LY323BC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY323BC05UL	100	4	0.5	25	22	5		SOD-323	预览	样片与订购

多路ESD

———

LYQ10BA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYQ10BA05UL	80	5	0.8	25	20	5	4	DFN2510-10	预览	样片与订购

单路ESD

———

LY03LAXX

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	Package	specification
LY03LA36	1875	25	150	30	30	36	DFN1610-2	预览	样片与订购
LY03LA24	1875	35	200	30	30	24	DFN1610-2	预览	样片与订购
LY03LA18	1875	50	350	30	30	18	DFN1610-2	预览	样片与订购
LY03LA15	1875	60	450	30	30	15	DFN1610-2	预览	样片与订购
LY03LA12	1875	75	500	30	30	12	DFN1610-2	预览	样片与订购
LY03LA09	1875	90	525	30	30	9	DFN1610-2	预览	样片与订购
LY03LA07	1875	115	550	30	30	7	DFN1610-2	预览	样片与订购
LY03LA05	1875	125	650	30	30	5	DFN1610-2	预览	样片与订购
LY03LA03	1875	150	750	30	30	3.3	DFN1610-2	预览	样片与订购

多路ESD

———

LYQ10BA03UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYQ10BA03UL	80	5	0.8	25	20	3.3	4	DFN2510-10	预览	样片与订购

多路ESD

———

LYD20AA05UL04

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYD20AA05UL04	100	5	0.3	25	20	5	5	DFN2010-5L	预览	样片与订购

多路ESD

———

LYQ06CA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LYQ06CA05UL	240	11	1	30	30	5	5	DFN1616-6	预览	样片与订购

多路ESD

———

LY8AC05L02

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC05L02	100	8	18	30	30	5	2	DFN1006-3	预览	样片与订购

单路ESD

———

LY03AC5UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY03AC5UL	100	4	0.5	25	22	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8CC24L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8CC24L	300	5	20	30	25	24		DFN1006-2	预览	样片与订购

单路ESD

———

LY8CC18L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8CC18L	300	7	20	30	30	18		DFN1006-2	预览	样片与订购

单路ESD

———

LY8CC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8CC05UL	280	9	0.3	30	30	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8CC05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8CC05	300	25	60	30	25	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8BC24L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8BC24L	180	3	10	25	20	24		DFN1006-2	预览	样片与订购

单路ESD

———

LY8BC15L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8BC15L	150	6	5	30	30	15		DFN1006-2	预览	样片与订购

单路ESD

———

LY8BC12L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8BC12L	180	8	30	30	30	12		DFN1006-2	预览	样片与订购

单路ESD

———

LY8BC05

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8BC05	200	15	50	30	30	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC24UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC24UL	80	1.5	0.3	15	8	24		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC15UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC15UL	90	2.5	0.5	20	15	15		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC12L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC12L	100	5	10	30	30	12		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC07L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC07L	80	6	15	30	30	7		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC05UL	100	4	0.5	25	22	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC05L2

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC05L2	45	4	9	30	30	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC05L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC05L	100	8	15	30	30	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AC03UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AC03UL	100	5	0.3	25	20	3.3		DFN1006-2	预览	样片与订购

单路ESD

———

LY8AA05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY8AA05UL	80	5	0.8	25	20	5		DFN1006-2	预览	样片与订购

单路ESD

———

LY02AC05UL

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY02AC05UL	100	4	0.5	25	22	5		DFN0603-2	预览	样片与订购

单路ESD

———

LY02AC05L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY02AC05L	80	8	20	30	30	5		DFN0603-2	预览	样片与订购

单路ESD

———

LY02AC05UL4

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY02AC05UL4	55	3.5	0.3	20	15	5		DFN0603-2	预览	样片与订购

单路ESD

———

LY02AC03L

Part Number	PPP(W)	IPP(A)	CJ(pF)	Air(kV)	Contact(kV)	VRWM(V)	保护路数	Package	specification
LY02AC03L	80	8	25	30	30	3.3		DFN0603-2	预览	样片与订购

气体放电管GDT

———

3R-8S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
3R600PM-8S	SMD	600V±20%	1200V	20KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R470PM-8S	SMD	470V±20%	900V	20KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R400PM-8S	SMD	400V±20%	900V	20KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R350PM-8S	SMD	350V±20%	850V	20KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R300PM-8S	SMD	300V±20%	800V	20KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R250PM-8S	SMD	250V±20%	700V	20KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R230PM-8S	SMD	230V±20%	700V	20KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R150PM-8S	SMD	150V±20%	700V	20KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R090PM-8S	SMD	90V±20%	700V	20KA	50VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R075PM-8S	SMD	75V±20%	700V	20KA	25VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R600MM-8S	SMD	600V±20%	1200V	10KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R470MM-8S	SMD	470V±20%	900V	10KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R400MM-8S	SMD	400V±20%	900V	10KA	250VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R350MM-8S	SMD	350V±20%	850V	10KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R300MM-8S	SMD	300V±20%	800V	10KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R250MM-8S	SMD	250V±20%	700V	10KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R230MM-8S	SMD	230V±20%	700V	10KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R150MM-8S	SMD	150V±20%	700V	10KA	100VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R090MM-8S	SMD	90V±20%	700V	10KA	50VDC 1	1.5pF	8.08.010.0	预览	样片与订购
3R075MM-8S	SMD	75V±20%	700V	10KA	25VDC 1	1.5pF	8.08.010.0	预览	样片与订购

气体放电管GDT

———

3R-8

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
3R600PM-8	SMD	600V±20%	1200V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R470PM-8	SMD	470V±20%	900V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R400PM-8	SMD	400V±20%	900V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R350PM-8	SMD	350V±20%	850V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R300PM-8	SMD	300V±20%	800V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R250PM-8	SMD	250V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R230PM-8	SMD	230V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R150PM-8	SMD	150V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R090PM-8	SMD	90V±20%	700V	20KA	20VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R075PM-8	SMD	75V±20%	700V	20KA	25VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R600MM-8	SMD	600V±20%	1200V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R470MM-8	SMD	470V±20%	900V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R400MM-8	SMD	400V±20%	900V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R350MM-8	SMD	350V±20%	850V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R300MM-8	SMD	300V±20%	800V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R250MM-8	SMD	250V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R230MM-8	SMD	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R150MM-8	SMD	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R090MM-8	SMD	90V±20%	700V	10KA	50VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R075MM-8	SMD	75V±20%	700V	10KA	25VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R600PL-8	DIP	600V±20%	1200V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R470PL-8	DIP	470V±20%	900V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R400PL-8	DIP	400V±20%	900V	20KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R350PL-8	DIP	350V±20%	850V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R300PL-8	DIP	300V±20%	800V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R250PL-8	DIP	250V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R230PL-8	DIP	230V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R150PL -8	DIP	150V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R090PL-8	DIP	90V±20%	700V	20KA	20VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R075PL-8	DIP	75V±20%	700V	20KA	25VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R600ML-8	DIP	600V±20%	1200V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R470ML-8	DIP	470V±20%	900V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R400ML-8	DIP	400V±20%	900V	10KA	250VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R350ML-8	DIP	350V±20%	850V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R300ML-8	DIP	300V±20%	800V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R250ML-8	DIP	250V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R230ML-8	DIP	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R150ML -8	DIP	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R090ML-8	DIP	90V±20%	700V	10KA	50VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购
3R075ML-8	DIP	75V±20%	700V	10KA	25VDC 1	1.5pF	Φ8.0*10.0	预览	样片与订购

气体放电管GDT

———

3R-6S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
3R600MM-6S	SMD	600V±20%	1300V	10KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R470MM-6S	SMD	470V±20%	1100V	10KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R400MM-6S	SMD	400V±20%	1000V	10KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R350MM-6S	SMD	350V±20%	900V	10KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R300MM-6S	SMD	300V±20%	800V	10KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R250MM-6S	SMD	250V±20%	700V	10KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R230MM-6S	SMD	230V±20%	700V	10KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R150MM-6S	SMD	150V±20%	700V	10KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R090MM-6S	SMD	90V±20%	700V	10KA	50VDC 1	2pF	6.06.08.5	预览	样片与订购
3R075MM-6S	SMD	75V±20%	700V	10KA	25VDC 1	2pF	6.06.08.5	预览	样片与订购
3R600LM-6S	SMD	600V±20%	1300V	5KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R470LM-6S	SMD	470V±20%	1100V	5KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R400LM-6S	SMD	400V±20%	1000V	5KA	250VDC 1	2pF	6.06.08.5	预览	样片与订购
3R350LM-6S	SMD	350V±20%	900V	5KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R300LM-6S	SMD	300V±20%	800V	5KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R250LM-6S	SMD	250V±20%	700V	5KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R230LM-6S	SMD	230V±20%	700V	5KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R150LM-6S	SMD	150V±20%	700V	5KA	100VDC 1	2pF	6.06.08.5	预览	样片与订购
3R090LM-6S	SMD	90V±20%	700V	5KA	50VDC 1	2pF	6.06.08.5	预览	样片与订购
3R075LM-6S	SMD	75V±20%	700V	5KA	25VDC 1	2pF	6.06.08.5	预览	样片与订购

气体放电管GDT

———

3R-6

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
3R600MM-6	SMD	600V±20%	1300V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R470MM-6	SMD	470V±20%	1100V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R400MM-6	SMD	400V±20%	1000V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R350MM-6	SMD	350V±20%	900V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R300MM-6	SMD	300V±20%	800V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R250MM-6	SMD	250V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R230MM-6	SMD	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R150MM-6	SMD	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R090MM-6	SMD	90V±20%	700V	10KA	50VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R075MM-6	SMD	75V±20%	700V	10KA	25VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R600LM-6	SMD	600V±20%	1300V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R470LM-6	SMD	470V±20%	1100V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R400LM-6	SMD	400V±20%	1000V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R350LM-6	SMD	350V±20%	900V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R300LM-6	SMD	300V±20%	800V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R250LM-6	SMD	250V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R230LM-6	SMD	230V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R150LM-6	SMD	150V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R090LM-6	SMD	90V±20%	700V	5KA	50VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R075LM-6	SMD	75V±20%	700V	5KA	25VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R600ML-6	DIP	600V±20%	1300V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R470ML-6	DIP	470V±20%	1100V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R400ML-6	DIP	400V±20%	1000V	10KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R350ML-6	DIP	350V±20%	900V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R300ML-6	DIP	300V±20%	800V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R250ML-6	DIP	250V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R230ML-6	DIP	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R150ML-6	DIP	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R090ML-6	DIP	90V±20%	700V	10KA	50VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R075ML-6	DIP	75V±20%	700V	10KA	25VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R600LL-6	DIP	600V±20%	1300V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R470LL-6	DIP	470V±20%	1100V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R400LL-6	DIP	400V±20%	1000V	5KA	250VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R350LL-6	DIP	350V±20%	900V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R300LL-6	DIP	300V±20%	800V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R250LL-6	DIP	250V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R230LL-6	DIP	230V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R150LL-6	DIP	150V±20%	700V	5KA	100VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R090LL-6	DIP	90V±20%	700V	5KA	50VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R075LL-6	DIP	75V±20%	700V	5KA	25VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购
3R075LL-6	DIP	75V±20%	700V	5KA	25VDC 1	1.5pF	Φ6.0*8.5	预览	样片与订购

气体放电管GDT

———

3R-5S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
3R600LM-5S	SMD	600V±20%	1200V	5KA	250VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R470LM-5S	SMD	470V±20%	1000V	5KA	250VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R400LM-5S	SMD	400V±20%	950V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R350LM-5S	SMD	350V±20%	900V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R300LM-5S	SMD	300V±20%	800V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R250LM-5S	SMD	250V±20%	700V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R230LM-5S	SMD	230V±20%	700V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R150LM-5S	SMD	150V±20%	600V	5KA	100VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R090LM-5S	SMD	90V±20%	600V	5KA	50VDC 1	1.5pF	5.05.07.2	预览	样片与订购
3R075LM-5S	SMD	75V±20%	600V	5KA	25VDC 1	1.5pF	5.05.07.2	预览	样片与订购

气体放电管GDT

———

2R-8S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800PM-8S	SMD	800V±20%	1400V	20KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R600PM-8S	SMD	600V±20%	1200V	20KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R470PM-8S	SMD	470V±20%	1000V	20KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R400PM-8S	SMD	400V±20%	950V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R350PM-8S	SMD	350V±20%	900V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R300PM-8S	SMD	300V±20%	850V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R250PM-8S	SMD	250V±20%	800V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R230PM-8S	SMD	230V±20%	700V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R150PM-8S	SMD	150V±20%	700V	20KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R090PM-8S	SMD	90V±20%	600V	20KA	50VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R075PM-8S	SMD	75V±20%	600V	20KA	25VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R800MM-8S	SMD	800V±20%	1400V	10KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R600MM-8S	SMD	600V±20%	1200V	10KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R470MM-8S	SMD	470V±20%	1000V	10KA	250VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R400MM-8S	SMD	400V±20%	950V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R350MM-8S	SMD	350V±20%	900V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R300MM-8S	SMD	300V±20%	850V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R250MM-8S	SMD	250V±20%	800V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R230MM-8S	SMD	230V±20%	700V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R150MM-8S	SMD	150V±20%	700V	10KA	100VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R090MM-8S	SMD	90V±20%	600V	10KA	50VDC 1	1.5pF	8.38.36.0	预览	样片与订购
2R075MM-8S	SMD	75V±20%	600V	10KA	25VDC 1	1.5pF	8.38.36.0	预览	样片与订购

气体放电管GDT

———

2R-8L

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R3600KM-8L	SMD	3600V±20%	5200V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R3500KM-8L	SMD	3500V±20%	5000V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R3000KM-8L	SMD	3000V±20%	4200V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2700KM-8L	SMD	2700V±20%	4000V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2500LM-8L	SMD	2500V±20%	3600V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2000LM-8L	SMD	2000V±20%	3000V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1600LM-8L	SMD	1600V±20%	2300V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1500LM-8L	SMD	1500V±20%	2300V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1400LM-8L	SMD	1400V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1200LM-8L	SMD	1200V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1000LM-8L	SMD	1000V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R3600KL-8L	DIP	3600V±20%	5200V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R3500KL-8L	DIP	3500V±20%	5000V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R3000KL-8L	DIP	3000V±20%	4200V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2700KL-8L	DIP	2700V±20%	4000V	3KA	1000VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2500LL-8L	DIP	2500V±20%	3600V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R2000LL-8L	DIP	2000V±20%	3000V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1600LL-8L	DIP	1600V±20%	2300V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1500LL-8L	DIP	1500V±20%	2300V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1400LL-8L	DIP	1400V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1200LL-8L	DIP	1200V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购
2R1000LL-8L	DIP	1000V±20%	2200V	5KA	500VDC 1	1.5pF	Φ8.0*8.0	预览	样片与订购

气体放电管GDT

———

2R-8

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800PM-8	SMD	800V±20%	1500V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R600PM-8	SMD	600V±20%	1300V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R470PM-8	SMD	470V±20%	1100V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R400PM-8	SMD	400V±20%	1000V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R350PM-8	SMD	350V±20%	900V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R300PM-8	SMD	300V±20%	900V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R250PM-8	SMD	250V±20%	800V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R230PM-8	SMD	230V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R150PM-8	SMD	150V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R090PM-8	SMD	90V±20%	600V	20KA	50VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R075PM-8	SMD	75V±20%	600V	20KA	25VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R3000LM -8	SMD	3000V±20%	4200V	5KA	1000VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2700LM -8	SMD	2700V±20%	4000V	5KA	1000VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2500LM -8	SMD	2500V±20%	3800V	5KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2000LM -8	SMD	2000V±20%	3200V	5KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1600MM-8	SMD	1600V±20%	2400V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1500MM-8	SMD	1500V±20%	2300V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1400MM-8	SMD	1400V±20%	2200V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1200MM-8	SMD	1200V±20%	2000V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1000MM-8	SMD	1000V±20%	1900V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R800MM-8	SMD	800V±20%	1500V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R600MM-8	SMD	600V±20%	1300V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R470MM-8	SMD	470V±20%	1100V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R400MM-8	SMD	400V±20%	1000V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R350MM-8	SMD	350V±20%	900V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R300MM-8	SMD	300V±20%	900V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R250MM-8	SMD	250V±20%	800V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R230MM-8	SMD	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R150MM-8	SMD	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R090MM-8	SMD	90V±20%	600V	10KA	50VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R075MM-8	SMD	75V±20%	600V	10KA	25VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R800PL-8	DIP	800V±20%	1500V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R600PL-8	DIP	600V±20%	1300V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R470PL-8	DIP	470V±20%	1100V	20KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R400PL-8	DIP	400V±20%	1000V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R350PL-8	DIP	350V±20%	900V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R300PL-8	DIP	300V±20%	900V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R250PL-8	DIP	250V±20%	800V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R230PL-8	DIP	230V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R150PL-8	DIP	150V±20%	700V	20KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R090PL-8	DIP	90V±20%	600V	20KA	50VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R075PL-8	DIP	75V±20%	600V	20KA	25VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R3600LL -8	DIP	3000V±20%	5200V	5KA	1000VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R3000LL -8	DIP	3000V±20%	4200V	5KA	1000VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2700LL -8	DIP	2700V±20%	4000V	5KA	1000VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2500LL -8	DIP	2500V±20%	3800V	5KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R2000LL -8	DIP	2000V±20%	3200V	5KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1600ML-8	DIP	1600V±20%	2400V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1500ML-8	DIP	1500V±20%	2300V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1400ML-8	DIP	1400V±20%	2200V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1200ML-8	DIP	1200V±20%	2000V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R1000ML-8	DIP	1000V±20%	1900V	10KA	500VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R800ML-8	DIP	800V±20%	1500V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R600ML-8	DIP	600V±20%	1300V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R470ML-8	DIP	470V±20%	1100V	10KA	250VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R400ML-8	DIP	400V±20%	1000V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R350ML-8	DIP	350V±20%	900V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R300ML-8	DIP	300V±20%	900V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R250ML-8	DIP	250V±20%	800V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R230ML-8	DIP	230V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R150ML-8	DIP	150V±20%	700V	10KA	100VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R090ML-8	DIP	90V±20%	600V	10KA	50VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购
2R075ML-8	DIP	75V±20%	600V	10KA	25VDC 1	1.5pF	Φ8.0*6.0	预览	样片与订购

气体放电管GDT

———

2R-6

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800LM-6	SMD	800V±20%	1400V	5KA	250VDC 1	1pF	6.26.24.2	预览	样片与订购
2R600LM-6	SMD	600V±20%	1000V	5KA	250VDC 1	1pF	6.26.24.2	预览	样片与订购
2R470LM-6	SMD	470V±20%	900V	5KA	250VDC 1	1pF	6.26.24.2	预览	样片与订购
2R400LM-6	SMD	400V±20%	900V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R350LM-6	SMD	350V±20%	850V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R300LM-6	SMD	300V±20%	800V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R250LM-6	SMD	250V±20%	700V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R230LM-6	SMD	230V±20%	700V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R150LM-6	SMD	150V±20%	700V	5KA	100VDC 1	1pF	6.26.24.2	预览	样片与订购
2R090LM-6	SMD	90V±20%	700V	5KA	50VDC 1	1pF	6.26.24.2	预览	样片与订购
2R075LM-6	SMD	75V±20%	700V	5KA	25VDC 1	1pF	6.26.24.2	预览	样片与订购

气体放电管GDT

———

2R-5T

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800LM-5T	SMD	800V±20%	1600V	5KA	250VDC 1	1pF	4.25.05.0	预览	样片与订购
2R600LM-5T	SMD	600V±20%	1200V	5KA	250VDC 1	1pF	4.25.05.0	预览	样片与订购
2R470LM-5T	SMD	470V±20%	1000V	5KA	250VDC 1	1pF	4.25.05.0	预览	样片与订购
2R400LM-5T	SMD	400V±20%	900V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R350LM-5T	SMD	350V±20%	850V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R300LM-5T	SMD	300V±20%	800V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R250LM-5T	SMD	250V±20%	700V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R230LM-5T	SMD	230V±20%	700V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R150LM-5T	SMD	150V±20%	700V	5KA	100VDC 1	1pF	4.25.05.0	预览	样片与订购
2R090LM-5T	SMD	90V±20%	650V	5KA	50VDC 1	1pF	4.25.05.0	预览	样片与订购
2R075LM-5T	SMD	75V±20%	700V	5KA	25VDC 1	1pF	4.25.05.0	预览	样片与订购

气体放电管GDT

———

2R-5S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R2500KM-5S	SMD	2500V±20%	3600V	3KA	1000VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R2000KM-5S	SMD	2000V±20%	3200V	3KA	500VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R1600KM-5S	SMD	1600V±20%	2800V	3KA	500VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R1400KM-5S	SMD	1400V±20%	2600V	3KA	500VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R1200KM-5S	SMD	1200V±20%	2200V	3KA	500VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R1000KM-5S	SMD	1000V±20%	1900V	3KA	500VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R800LM-5S	SMD	800V±20%	1500V	5KA	250VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R600LM-5S	SMD	600V±20%	1300V	5KA	250VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R470LM-5S	SMD	470V±20%	1100V	5KA	250VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R400LM-5S	SMD	400V±20%	1000V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R350LM-5S	SMD	350V±20%	900V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R300LM-5S	SMD	300V±20%	900V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R250LM-5S	SMD	250V±20%	800V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R230LM-5S	SMD	230V±20%	700V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R150LM-5S	SMD	150V±20%	700V	5KA	100VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R090LM-5S	SMD	90V±20%	600V	5KA	50VDC 1	1.5pF	5.55.56.0	预览	样片与订购
2R075LM-5S	SMD	75V±20%	600V	5KA	25VDC 1	1.5pF	5.55.56.0	预览	样片与订购

气体放电管GDT

———

2R-5

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800LM-5	SMD	800V±20%	1500V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R600LM-5	SMD	600V±20%	1300V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R470LM-5	SMD	470V±20%	1100V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R400LM-5	SMD	400V±20%	1000V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R350LM-5	SMD	350V±20%	900V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R300LM-5	SMD	300V±20%	900V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R250LM-5	SMD	250V±20%	800V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R230LM-5	SMD	230V±20%	700V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R150LM-5	SMD	150V±20%	700V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R090LM-5	SMD	90V±20%	600V	5KA	50VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R075LM-5	SMD	75V±20%	600V	5KA	25VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R800LL-5	DIP	800V±20%	1500V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R600LL-5	DIP	600V±20%	1300V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R470LL-5	DIP	470V±20%	1100V	5KA	250VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R400LL-5	DIP	400V±20%	1000V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R350LL-5	DIP	350V±20%	900V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R300LL-5	DIP	300V±20%	900V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R250LL-5	DIP	250V±20%	800V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R230LL-5	DIP	230V±20%	700V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R150LL-5	DIP	150V±20%	700V	5KA	100VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R090LL-5	DIP	90V±20%	600V	5KA	50VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购
2R075LL-5	DIP	75V±20%	600V	5KA	25VDC 1	1.5pF	Φ5.5*6.0	预览	样片与订购

气体放电管GDT

———

2R-4H

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R470KM-4H	SMD	470V±30%	1000V	3KA	250VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R400KM-4H	SMD	400V±30%	900V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R350KM-4H	SMD	350V±30%	850V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R300KM-4H	SMD	300V±30%	850V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R250KM-4H	SMD	250V±30%	750V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R200KM-4H	SMD	200V±30%	750V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R150KM-4H	SMD	150V±30%	650V	3KA	100VDC 1	0.5pF	4.03.53.5	预览	样片与订购
2R090KM-4H	SMD	90V±30%	650V	3KA	50VDC 1	0.5pF	4.03.53.5	预览	样片与订购

气体放电管GDT

———

2R-4

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R800KM-4	SMD	800V±20%	1400V	3KA	250VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R600KM-4	SMD	600V±20%	1200V	3KA	250VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R470KM-4	SMD	470V±20%	1000V	3KA	250VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R400KM-4	SMD	400V±20%	900V	3KA	100VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R350KM-4	SMD	350V±20%	850V	3KA	100VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R300KM-4	SMD	300V±20%	800V	3KA	100VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R250KM-4	SMD	250V±20%	700V	3KA	100VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R230KM-4	SMD	230V±20%	700V	3KA	100VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R090KM-4	SMD	90V±20%	700V	3KA	50VDC 1	0.8pF	4.24.04.0	预览	样片与订购
2R075KM-4	SMD	75V±20%	700V	3KA	25VDC 1	0.8pF	4.24.04.0	预览	样片与订购

气体放电管GDT

———

2R-3S

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R500EM-3S	SMD	500V±30%	1300V	1KA	100VDC 1	0.5pF	3.52.82.8	预览	样片与订购
2R400EM-3S	SMD	400V±30%	1100V	1KA	100VDC 1	0.5pF	3.52.82.8	预览	样片与订购
2R300EM-3S	SMD	300V±30%	900V	1KA	100VDC 1	0.5pF	3.52.82.8	预览	样片与订购
2R200EM-3S	SMD	200V±30%	700V	1KA	100VDC 1	0.5pF	3.52.82.8	预览	样片与订购
2R090EM-3S	SMD	90V±30%	650V	1KA	50VDC 1	0.5pF	3.52.82.8	预览	样片与订购

气体放电管GDT

———

2R-G

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R600SM-G	SMD	600V±30%	1200V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R470SM-G	SMD	470V±30%	1100V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R400SM-G	SMD	400V±30%	1000V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R350SM-G	SMD	350V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R300SM-G	SMD	300V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R230SM-G	SMD	230V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R200SM-G	SMD	200V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R150SM-G	SMD	150V±30%	700V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R090SM-G	SMD	90V±30%	700V	2KA	50VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R075SM-G	SMD	75V±30%	600V	2KA	25VDC 1	0.5pF	4.53.22.7	预览	样片与订购

气体放电管GDT

———

2R-G-B0

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R600SM-G-B0	SMD	600V±30%	1200V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R470SM-G-B0	SMD	470V±30%	1100V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R400SM-G-B0	SMD	400V±30%	1000V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R350SM-G-B0	SMD	350V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R300SM-G-B0	SMD	300V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R230SM-G-B0	SMD	230V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R200SM-G-B0	SMD	200V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R150SM-G-B0	SMD	150V±30%	700V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R090SM-G-B0	SMD	90V±30%	700V	2KA	50VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R075SM-G-B0	SMD	75V±30%	600V	2KA	25VDC 1	0.5pF	4.53.22.7	预览	样片与订购

气体放电管GDT

———

2R-GB

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R600SM-GB	SMD	600V±30%	1200V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R470SM-GB	SMD	470V±30%	1100V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R400SM-GB	SMD	400V±30%	1000V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R350SM-GB	SMD	350V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R300SM-GB	SMD	300V±30%	900V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R230SM-GB	SMD	230V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R200SM-GB	SMD	200V±30%	750V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R150SM-GB	SMD	150V±30%	700V	2KA	100VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R090SM-GB	SMD	90V±30%	700V	2KA	50VDC 1	0.5pF	4.53.22.7	预览	样片与订购
2R075SM-GB	SMD	75V±30%	600V	2KA	25VDC 1	0.5pF	4.53.22.7	预览	样片与订购

气体放电管GDT

———

2R-EH

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R400SM-EH	SMD	400V±30%	950V	1KA	100VDC 1	0.5pF	3.22.52.5	预览	样片与订购
2R300SM-EH	SMD	300V±30%	850V	1KA	100VDC 1	0.5pF	3.22.52.5	预览	样片与订购
2R200SM-EH	SMD	200V±30%	800V	1KA	100VDC 1	0.5pF	3.22.52.5	预览	样片与订购
2R150SM-EH	SMD	150V±30%	750V	1KA	100VDC 1	0.5pF	3.22.52.5	预览	样片与订购
2R090SM-EH	SMD	90V±30%	700V	1KA	50VDC 1	0.5pF	3.22.52.5	预览	样片与订购

气体放电管GDT

———

2R-E

Part Number	Type	DC Spark-over Voltage 100V/s	Maximum Impulse Spark-over Vol 1000V/µs	Nominal Impulse Discharge Curr 8/20µs, 10 times	Minimum Insulation Resistance Test Voltage GΩ	Maximum Capacitance 1MHz	Size(mm)	specification
2R470SM-E	SMD	470V±30%	1100V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R420SM-E	SMD	420V±30%	1000V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R400SM-E	SMD	400V±30%	1000V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R350SM-E	SMD	350V±30%	950V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R300SM-E	SMD	300V±30%	900V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R230SM-E	SMD	230V±30%	850V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R200SM-E	SMD	200V±30%	850V	500A	100VDC 1	0.5pF	3.21.61.6	预览	样片与订购
2R150SM-E	SMD	150V±30%	750V	500A	50VDC 1	0.5pF	3.21.61.6	预览	样片与订购

玻璃放电管SPG

———

GS41-DIP

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS41-402ML	4000V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-362ML	3600V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-302ML	3000V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-272ML	2700V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-242ML	2400V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-202ML	2000V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-182ML	1800V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-152ML	1500V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购
GS41-102ML	1000V±20%	500V 100MΩ	1.0pF	3000A	/	Φ4.1*9.5	预览	样片与订购

玻璃放电管SPG

———

GS31-SMD

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS31-102MM	1000V±20%	500V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-701MM	700V±20%	250V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-501MM	500V±20%	250V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-401MM	400V±20%	250V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-301MM	300V±20%	100V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-201MM	200V±20%	100V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购
GS31-141NM	140V±30%	50V 100MΩ	0.8pF	2000A	4000V	Φ3.1*6.0	预览	样片与订购

玻璃放电管SPG

———

GS31-DIP

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS31-701ML	700V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-601ML	600V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-501ML	500V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-401ML	400V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-301ML	300V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-201ML	200V±20%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购
GS31-141NL	140V±30%	250V 100MΩ	0.8pF	3000A	4000V	Φ3.1*4.0	预览	样片与订购

玻璃放电管SPG

———

GS26-SMD

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS26-102MM	1000V±20%	500V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-701MM	700V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-601MM	600V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-501MM	500V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-401MM	400V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-301MM	300V±20%	100V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-201MM	200V±20%	100V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购
GS26-141NM	140V±30%	50V 100MΩ	1.0pF	1000A	2000V	Φ2.6*5.0	预览	样片与订购

玻璃放电管SPG

———

GS26-DIP

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS26-701ML	700V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-601ML	600V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-501ML	500V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-401ML	400V±20%	250V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-301ML	300V±20%	100V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-201ML	200V±20%	100V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购
GS26-141NL	140V±30%	50V 100MΩ	1.0pF	1000A	2000V	Φ2.6*4.3	预览	样片与订购

玻璃放电管SPG

———

GS20-SMD

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS20-102MM	1000V±20%	500V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-701MM	700V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-601MM	600V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-501MM	500V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-401MM	400V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-301MM	300V±20%	100V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-201MM	200V±20%	100V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购
GS20-141NM	140V±30%	50V 100MΩ	0.8pF	500A	2000V	Φ2.1*4.0	预览	样片与订购

玻璃放电管SPG

———

GS20-DIP

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS20-701ML	700V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-601ML	600V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-501ML	500V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-401ML	400V±20%	250V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-301ML	300V±20%	100V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-201ML	200V±20%	100V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购
GS20-141NL	140V±30%	50V 100MΩ	0.8pF	500A	2000V	Φ2.0*4.0	预览	样片与订购

玻璃放电管SPG

———

GS14

Part Number	DC Spark-over Voltage VS	Minimum Insulation Resistance Test Voltage IROHM	Maximum Capacitance (1KHz-6VMA C	Surge Current Capacity @8/20μs	Surge Voltage Capacity @10/700μs	Size(mm)	specification
GS14-301MM	300V±20%	100V 100MΩ	0.8pF	300A	/	Φ1.4*3.4	预览	样片与订购
GS14-201MM	200V±20%	100V 100MΩ	0.8pF	300A	/	Φ1.4*3.4	预览	样片与订购
GS14-141NM	140V±30%	50V 100MΩ	0.8pF	300A	/	Φ1.4*3.4	预览	样片与订购

固体放电管TSS

———

PXXXXSA

Part Number	Peak Off-state Voltage VDRM max.(V)	Off-state Current IDRM max.(μA)	Switching Voltage VS max.(V)	Switching Current IS max.(mA)	On-state Voltage VT max.(V)	On-state Current IT max.(A)	Holding Current IH typ.(mA)	Off-state Capacitance @2V, 1MH CO typ.(pF)	Package	specification
P3500SC	320	5	400	800	4	2.2	150	65	SMB	预览	样片与订购
P3500SB	320	5	400	800	4	2.2	150	40	SMB	预览	样片与订购
P3500SA	320	5	400	800	4	2.2	150	30	SMB	预览	样片与订购
P3100SC	275	5	350	800	4	2.2	150	65	SMB	预览	样片与订购
P3100SB	275	5	350	800	4	2.2	150	45	SMB	预览	样片与订购
P3100SA	275	5	350	800	4	2.2	150	30	SMB	预览	样片与订购
P2600SC	220	5	300	800	4	2.2	150	80	SMB	预览	样片与订购
P2600SB	220	5	300	800	4	2.2	150	50	SMB	预览	样片与订购
P2600SA	220	5	300	800	4	2.2	150	35	SMB	预览	样片与订购
P2300SC	190	5	260	800	4	2.2	150	80	SMB	预览	样片与订购
P2300SB	190	5	260	800	4	2.2	150	55	SMB	预览	样片与订购
P2300SA	190	5	260	800	4	2.2	150	35	SMB	预览	样片与订购
P1800SC	170	5	220	800	4	2.2	150	85	SMB	预览	样片与订购
P1800SB	170	5	220	800	4	2.2	150	60	SMB	预览	样片与订购
P1800SA	170	5	220	800	4	2.2	150	40	SMB	预览	样片与订购
P1500SC	140	5	180	800	4	2.2	150	85	SMB	预览	样片与订购
P1500SB	140	5	180	800	4	2.2	150	60	SMB	预览	样片与订购
P1500SA	140	5	180	800	4	2.2	150	40	SMB	预览	样片与订购
P1300SC	120	5	160	800	4	2.2	150	90	SMB	预览	样片与订购
P1300SB	120	5	160	800	4	2.2	150	55	SMB	预览	样片与订购
P1300SA	120	5	160	800	4	2.2	150	45	SMB	预览	样片与订购
P1100SC	90	5	130	800	4	2.2	150	90	SMB	预览	样片与订购
P1100SB	90	5	130	800	4	2.2	150	55	SMB	预览	样片与订购
P1100SA	90	5	130	800	4	2.2	150	45	SMB	预览	样片与订购
P0900SC	75	5	98	800	4	2.2	150	90	SMB	预览	样片与订购
P0900SB	75	5	98	800	4	2.2	150	55	SMB	预览	样片与订购
P0900SA	75	5	98	800	4	2.2	150	45	SMB	预览	样片与订购
P0720SC	65	5	88	800	4	2.2	150	100	SMB	预览	样片与订购
P0720SB	65	5	88	800	4	2.2	150	60	SMB	预览	样片与订购
P0720SA	65	5	88	800	4	2.2	150	50	SMB	预览	样片与订购
P0640SC	58	5	77	800	4	2.2	150	100	SMB	预览	样片与订购
P0640SB	58	5	77	800	4	2.2	150	60	SMB	预览	样片与订购
P0640SA	58	5	77	800	4	2.2	150	50	SMB	预览	样片与订购
P0300SC	25	5	40	800	4	2.2	50	100	SMB	预览	样片与订购
P0300SB	25	5	40	800	4	2.2	50	70	SMB	预览	样片与订购
P0300SA	25	5	40	800	4	2.2	50	70	SMB	预览	样片与订购
P0080SC	6	5	25	800	4	2.2	50	100	SMB	预览	样片与订购
P0080SB	6	5	25	800	4	2.2	50	70	SMB	预览	样片与订购
P0080SA	6	5	25	800	4	2.2	50	50	SMB	预览	样片与订购

热保护压敏电阻TMOV

———

TMOV-20D

Part Number	Varistor Voltage V1mA (V)	Maximum Allowable Voltage VAC (V) VDC (V)	Maximum Clamping Voltage IP (A) VC (V)	Surge Current I (A)	Maximum Energy (10/1000μs) E (J)	Maximum Leakage Current @83% o IR (μA)	Rated Power P (W)	Typical Capacitance (Reference @1KHz (pF)	Size(mm)	specification
----	18(15~21.6)	11 14	20 36	3000	13	50	0.2	28500	Φ20	预览	样片与订购

整流二极管

———

LRD

Part Number	LY Model	Chip Size[mm] X Y	VDRM/VRRM [V] Min	IT [A]	VTM [V] @3IT Max	沟槽	表面金属	specification
11	LRD200-18	16.50 16.50	1800	200	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
10	LRD150-18	13.5 13.5	1800	150	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
9	LRD110-18	11.5 11.5	1800	110	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
8	LRD90-18	8.9 8.9	1800	90	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
7	LRD70-18	7.6 7.6	1800	70	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
6	LRD60-16	9.3 6.3	1600	60	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
5	LRD50-18	6.4 6.4	1800	50	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
4	LRD35-18	5.5 5.5	1800	35	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
3	LRD25-18	5 5	1800	25	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
2	LRD15-18	4.3 4.3	1800	35	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
11	LRD200-18	16.50 16.50	1800	200	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
10	LRD150-18	13.5 13.5	1800	150	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
9	LRD110-18	11.5 11.5	1800	110	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
8	LRD90-18	8.9 8.9	1800	90	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
7	LRD70-18	7.6 7.6	1800	70	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
6	LRD60-16	9.3 6.3	1600	60	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
5	LRD50-18	6.4 6.4	1800	50	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
4	LRD35-18	5.5 5.5	1800	35	1.25	外沟槽	正铝背银/双面银	预览	样片与订购
3	LRD25-18	5 5	1800	25	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
2	LRD15-18	4.3 4.3	1800	35	1.25	外沟槽	正铝背银/双面银	预览	样片与订购

整流二极管

———

整流二极管

Part Number	LY Model	Chip Size[mm] X Y	VDRM/VRRM [V] Min	IT [A]	VTM [V] @3IT Max	沟槽	表面金属	specification
1	LRD10-18	3.9 3.9	1800	10	1.25	内沟槽	正铝背银/双面银	预览	样片与订购
1	LRD10-18	3.9 3.9	1800	10	1.25	内沟槽	正铝背银/双面银	预览	样片与订购

车规级TVS

———

10KP-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
10KP11A 10KP11CA	11.0	12.2 13.5	50	18.2	549.5	3000	P600	预览	样片与订购
10KP12A 10KP12CA	12.0	13.3 14.7	50	19.9	502.5	2000	P600	预览	样片与订购
10KP13A 10KP13CA	13.0	14.4 15.9	50	21.5	465.1	1000	P600	预览	样片与订购
10KP14A 10KP14CA	14.0	15.6 17.2	50	23.2	431.0	800	P600	预览	样片与订购
10KP15A 10KP15CA	15.0	16.7 18.5	5	24.4	409.8	500	P600	预览	样片与订购
10KP16A 10KP16CA	16.0	17.8 19.7	5	26.0	384.6	100	P600	预览	样片与订购
10KP17A 10KP17CA	17.0	18.9 20.9	5	27.6	362.3	45	P600	预览	样片与订购
10KP18A 10KP18CA	18.0	20.0 22.1	5	29.2	342.5	20	P600	预览	样片与订购
10KP20A 10KP20CA	20.0	22.2 24.5	5	32.4	308.6	5	P600	预览	样片与订购
10KP22A 10KP22CA	22.0	24.4 26.9	5	35.5	281.7	3	P600	预览	样片与订购
10KP24A 10KP24CA	24.0	26.7 29.5	5	38.9	257.1	2	P600	预览	样片与订购
10KP26A 10KP26CA	26.0	28.9 31.9	5	42.1	237.5	2	P600	预览	样片与订购
10KP28A 10KP28CA	28.0	31.1 34.4	5	45.4	220.3	2	P600	预览	样片与订购
10KP30A 10KP30CA	30.0	33.3 36.8	5	48.4	206.6	2	P600	预览	样片与订购
10KP33A 10KP33CA	33.0	36.7 40.6	5	53.3	187.6	2	P600	预览	样片与订购
10KP36A 10KP36CA	40.0	44.4 49.1	5	64.5	155	2	P600	预览	样片与订购
10KP40A 10KP40CA	40.0	44.4 49.1	5	64.5	155	2	P600	预览	样片与订购

车规级TVS

———

5.0SMDJ-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
5.0SMDJ11A 5.0SMDJ11CA	11.0	12.20 13.50	10	18.2	275.0	800	SMD	预览	样片与订购
5.0SMDJ12A 5.0SMDJ12CA	12.0	13.30 14.70	10	19.9	252.0	800	SMD	预览	样片与订购
5.0SMDJ13A 5.0SMDJ13CA	13.0	14.40 15.90	10	21.5	233.0	500	SMD	预览	样片与订购
5.0SMDJ14A 5.0SMDJ14CA	14.0	15.60 17.20	10	23.2	216.0	200	SMD	预览	样片与订购
5.0SMDJ15A 5.0SMDJ15CA	15.0	16.70 18.50	1	24.4	205.0	100	SMD	预览	样片与订购
5.0SMDJ16A 5.0SMDJ16CA	16.0	17.80 19.70	1	26.0	193.0	50	SMD	预览	样片与订购
5.0SMDJ17A 5.0SMDJ17CA	17.0	18.90 20.90	1	27.6	181.0	20	SMD	预览	样片与订购
5.0SMDJ18A 5.0SMDJ18CA	18.0	20.00 22.10	1	29.2	172.0	10	SMD	预览	样片与订购
5.0SMDJ20A 5.0SMDJ20CA	20.0	22.20 24.50	1	32.4	155.0	5	SMD	预览	样片与订购
5.0SMDJ22A 5.0SMDJ22CA	22.0	24.40 26.90	1	35.5	141.0	5	SMD	预览	样片与订购
5.0SMDJ24A 5.0SMDJ24CA	24.0	26.70 29.50	1	38.9	129.0	5	SMD	预览	样片与订购
5.0SMDJ26A 5.0SMDJ26CA	26.0	28.90 31.90	1	42.1	119.0	5	SMD	预览	样片与订购
5.0SMDJ28A 5.0SMDJ28CA	28.0	31.10 34.40	1	45.4	110.0	5	SMD	预览	样片与订购
5.0SMDJ30A 5.0SMDJ30CA	30.0	33.30 36.80	1	48.4	103.0	5	SMD	预览	样片与订购
5.0SMDJ33A 5.0SMDJ33CA	33.0	36.70 40.60	1	53.3	93.9	5	SMD	预览	样片与订购
5.0SMDJ36A 5.0SMDJ36CA	36.0	40.00 44.20	1	58.1	86.1	5	SMD	预览	样片与订购
5.0SMDJ40A 5.0SMDJ40CA	40.0	44.40 49.10	1	64.5	77.6	5	SMD	预览	样片与订购
5.0SMDJ43A 5.0SMDJ43CA	43.0	47.80 52.80	1	69.4	72.1	5	SMD	预览	样片与订购
5.0SMDJ45A 5.0SMDJ45CA	45.0	50.00 55.30	1	72.7	68.8	5	SMD	预览	样片与订购
5.0SMDJ48A 5.0SMDJ48CA	48.0	53.30 58.90	1	77.4	64.7	5	SMD	预览	样片与订购
5.0SMDJ51A 5.0SMDJ51CA	51.0	56.70 62.70	1	82.4	60.7	5	SMD	预览	样片与订购
5.0SMDJ54A 5.0SMDJ54CA	54.0	60.00 66.30	1	87.1	57.5	5	SMD	预览	样片与订购
5.0SMDJ58A 5.0SMDJ58CA	58.0	64.40 71.20	1	93.6	53.5	5	SMD	预览	样片与订购
5.0SMDJ60A 5.0SMDJ60CA	60.0	66.70 73.70	1	96.8	51.7	5	SMD	预览	样片与订购
5.0SMDJ64A 5.0SMDJ64CA	64.0	71.10 78.60	1	103.0	48.6	5	SMD	预览	样片与订购
5.0SMDJ70A 5.0SMDJ70CA	70.0	77.80 86.00	1	113.0	44.3	5	SMD	预览	样片与订购
5.0SMDJ75A 5.0SMDJ75CA	75.0	83.30 92.10	1	121.0	41.4	5	SMD	预览	样片与订购
5.0SMDJ78A 5.0SMDJ78CA	78.0	86.70 95.80	1	126.0	39.7	5	SMD	预览	样片与订购
5.0SMDJ85A 5.0SMDJ85CA	85.0	94.40 104.00	1	137.0	36.5	5	SMD	预览	样片与订购
5.0SMDJ90A 5.0SMDJ90CA	90.0	100.00 111.00	1	146.0	34.3	5	SMD	预览	样片与订购
5.0SMDJ100A 5.0SMDJ100CA	100.0	111.00 123.00	1	162.0	30.9	5	SMD	预览	样片与订购
5.0SMDJ110A 5.0SMDJ110CA	110.0	122.00 135.00	1	177.0	28.3	5	SMD	预览	样片与订购
5.0SMDJ120A 5.0SMDJ120CA	120.0	133.00 147.00	1	193.0	26.0	5	SMD	预览	样片与订购
5.0SMDJ130A 5.0SMDJ130CA	130.0	144.00 159.00	1	209.0	24.0	5	SMD	预览	样片与订购
5.0SMDJ150A 5.0SMDJ150CA	150.0	167.00 185.00	1	243.0	20.6	5	SMD	预览	样片与订购
5.0SMDJ160A 5.0SMDJ160CA	160.0	178.00 197.00	1	259.0	19.3	5	SMD	预览	样片与订购
5.0SMDJ170A 5.0SMDJ170CA	170.0	189.00 209.00	1	275.0	18.2	5	SMD	预览	样片与订购

车规级TVS

———

1.0SMB-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
1.0SMB6.8A-Q 1.0SMB6.8CA-Q	5.80	6.45 7.14	10	10.5	96.8	1000	SMB	预览	样片与订购
1.0SMB7.5A-Q 1.0SMB7.5CA-Q	6.40	7.13 7.88	10	11.3	90.0	500	SMB	预览	样片与订购
1.0SMB8.2A-Q 1.0SMB8.2CA-Q	7.02	7.79 8.61	10	12.1	84.0	200	SMB	预览	样片与订购
1.0SMB9.1A-Q 1.0SMB9.1CA-Q	7.78	8.65 9.55	1	13.4	75.8	50	SMB	预览	样片与订购
1.0SMB10A-Q 1.0SMB10CA-Q	8.55	9.50 10.50	1	14.5	70.2	10	SMB	预览	样片与订购
1.0SMB11A-Q 1.0SMB11CA-Q	9.40	10.50 11.60	1	15.6	65.2	5	SMB	预览	样片与订购
1.0SMB12A-Q 1.0SMB12CA-Q	10.20	11.40 12.60	1	16.7	60.8	5	SMB	预览	样片与订购
1.0SMB13A-Q 1.0SMB13CA-Q	11.10	12.40 13.70	1	18.2	55.8	1	SMB	预览	样片与订购
1.0SMB15A-Q 1.0SMB15CA-Q	12.80	14.30 15.80	1	21.2	48.0	1	SMB	预览	样片与订购
1.0SMB16A-Q 1.0SMB16CA-Q	13.60	15.20 16.80	1	22.5	45.2	1	SMB	预览	样片与订购
1.0SMB18A-Q 1.0SMB18CA-Q	15.30	17.10 18.90	1	25.2	40.3	1	SMB	预览	样片与订购
1.0SMB20A-Q 1.0SMB20CA-Q	17.10	19.00 21.00	1	27.7	36.7	1	SMB	预览	样片与订购
1.0SMB22A-Q 1.0SMB22CA-Q	18.80	20.90 23.10	1	30.6	33.2	1	SMB	预览	样片与订购
1.0SMB24A-Q 1.0SMB24CA-Q	20.50	22.80 25.20	1	33.2	30.7	1	SMB	预览	样片与订购
1.0SMB27A-Q 1.0SMB27CA-Q	23.10	25.70 28.40	1	37.5	27.2	1	SMB	预览	样片与订购
1.0SMB30A-Q 1.0SMB30CA-Q	25.60	28.50 31.50	1	41.4	24.5	1	SMB	预览	样片与订购
1.0SMB33A-Q 1.0SMB33CA-Q	28.20	31.40 34.70	1	45.7	22.2	1	SMB	预览	样片与订购
1.0SMB36A-Q 1.0SMB36CA-Q	30.80	34.20 37.80	1	49.9	20.3	1	SMB	预览	样片与订购
1.0SMB39A-Q 1.0SMB39CA-Q	33.30	37.10 41.00	1	53.9	18.8	1	SMB	预览	样片与订购
1.0SMB43A-Q 1.0SMB43CA-Q	36.80	40.90 45.20	1	59.3	17.2	1	SMB	预览	样片与订购
1.0SMB47A-Q 1.0SMB47CA-Q	40.20	44.70 49.40	1	64.8	15.7	1	SMB	预览	样片与订购
1.0SMB51A-Q 1.0SMB51CA-Q	43.60	48.50 53.60	1	70.1	14.5	1	SMB	预览	样片与订购
1.0SMB56A-Q 1.0SMB56CA-Q	47.80	53.20 58.80	1	77.0	13.2	1	SMB	预览	样片与订购
1.0SMB62A-Q 1.0SMB62CA-Q	53.00	58.90 65.10	1	85.0	12.0	1	SMB	预览	样片与订购
1.0SMB68A-Q 1.0SMB68CA-Q	58.10	64.60 71.40	1	92.0	11.0	1	SMB	预览	样片与订购

车规级TVS

———

1.0SMBJ-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
1.0SMBJ5.0A-Q 1.0SMBJ5.0CA-Q	5.0	6.40 7.00	10	9.2	108.70	800	SMB	预览	样片与订购
1.0SMBJ6.0A-Q 1.0SMBJ6.0CA-Q	6.0	6.67 7.37	10	10.3	97.10	800	SMB	预览	样片与订购
1.0SMBJ6.5A-Q 1.0SMBJ6.5CA-Q	6.5	7.22 7.98	10	11.2	89.30	500	SMB	预览	样片与订购
1.0SMBJ7.0A-Q 1.0SMBJ7.0CA-Q	7.0	7.78 8.60	10	12.0	83.40	200	SMB	预览	样片与订购
1.0SMBJ7.5A-Q 1.0SMBJ7.5CA-Q	7.5	8.33 9.21	1	12.9	77.60	100	SMB	预览	样片与订购
1.0SMBJ8.0A-Q 1.0SMBJ8.0CA-Q	8.0	8.89 9.83	1	13.6	73.60	50	SMB	预览	样片与订购
1.0SMBJ8.5A-Q 1.0SMBJ8.5CA-Q	8.5	9.44 10.40	1	14.4	69.50	20	SMB	预览	样片与订购
1.0SMBJ9.0A-Q 1.0SMBJ9.0CA-Q	9.0	10.00 11.10	1	15.4	65.00	10	SMB	预览	样片与订购
1.0SMBJ10A-Q 1.0SMBJ10CA-Q	10.0	11.10 12.30	1	17.0	58.90	5	SMB	预览	样片与订购
1.0SMBJ11A-Q 1.0SMBJ11CA-Q	11.0	12.20 13.50	1	18.2	55.00	1	SMB	预览	样片与订购
1.0SMBJ12A-Q 1.0SMBJ12CA-Q	12.0	13.30 14.70	1	19.9	50.30	1	SMB	预览	样片与订购
1.0SMBJ13A-Q 1.0SMBJ13CA-Q	13.0	14.40 15.90	1	21.5	46.60	1	SMB	预览	样片与订购
1.0SMBJ14A-Q 1.0SMBJ14CA-Q	15.0	15.60 17.20	1	23.2	43.20	1	SMB	预览	样片与订购
1.0SMBJ15A-Q 1.0SMBJ15CA-Q	15.0	16.70 18.50	1	24.4	41.00	1	SMB	预览	样片与订购
1.0SMBJ16A-Q 1.0SMBJ16CA-Q	16.0	17.80 19.70	1	26.0	38.50	1	SMB	预览	样片与订购
1.0SMBJ17A-Q 1.0SMBJ17CA-Q	17.0	18.90 20.90	1	27.6	36.30	1	SMB	预览	样片与订购
1.0SMBJ18A-Q 1.0SMBJ18CA-Q	18.0	20.00 22.10	1	29.2	34.30	1	SMB	预览	样片与订购
1.0SMBJ18A-Q 1.0SMBJ18CA-Q	18.0	20.00 22.10	1	29.2	34.30	1	SMB	预览	样片与订购
1.0SMBJ20A-Q 1.0SMBJ20CA-Q	20.0	22.20 24.50	1	32.4	30.90	1	SMB	预览	样片与订购
1.0SMBJ22A-Q 1.0SMBJ22CA-Q	22.0	24.40 26.90	1	35.5	28.20	1	SMB	预览	样片与订购
1.0SMBJ24A-Q 1.0SMBJ24CA-Q	24.0	26.70 29.50	1	38.9	25.80	1	SMB	预览	样片与订购
1.0SMBJ26A-Q 1.0SMBJ26CA-Q	26.0	28.90 31.90	1	42.1	23.80	1	SMB	预览	样片与订购
1.0SMBJ28A-Q 1.0SMBJ28CA-Q	28.0	31.10 34.40	1	45.4	22.10	1	SMB	预览	样片与订购
1.0SMBJ30A-Q 1.0SMBJ30CA-Q	30.0	33.30 36.80	1	48.4	20.70	1	SMB	预览	样片与订购
1.0SMBJ33A-Q 1.0SMBJ33CA-Q	33.0	36.70 40.60	1	53.3	18.80	1	SMB	预览	样片与订购
1.0SMBJ36A-Q 1.0SMBJ36CA-Q	36.0	40.0 44.20	1	58.1	17.30	1	SMB	预览	样片与订购
1.0SMBJ40A-Q 1.0SMBJ40CA-Q	40.0	44.40 44.40	1	64.5	15.60	1	SMB	预览	样片与订购
1.0SMBJ43A-Q 1.0SMBJ43CA-Q	43.0	47.80 52.80	1	69.4	14.50	1	SMB	预览	样片与订购
1.0SMBJ45A-Q 1.0SMBJ45CA-Q	45.0	50.00 55.30	1	72.7	13.80	1	SMB	预览	样片与订购
1.0SMBJ48A-Q 1.0SMBJ48CA-Q	48.0	53.30 58.90	1	77.4	13.00	1	SMB	预览	样片与订购
1.0SMBJ51A-Q 1.0SMBJ51CA-Q	51.0	56.70 62.70	1	82.4	12.20	1	SMB	预览	样片与订购
1.0SMBJ54A-Q 1.0SMBJ54CA-Q	54.0	60.00 66.30	1	87.1	11.50	1	SMB	预览	样片与订购
1.0SMBJ58A-Q 1.0SMBJ58CA-Q	58.0	64.40 71.20	1	93.6	10.70	1	SMB	预览	样片与订购
1.0SMBJ60A-Q 1.0SMBJ60CA-Q	60.0	66.70 73.70	1	96.8	10.40	1	SMB	预览	样片与订购

工业级TVS

———

10KP

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
10KP11A 10KP11CA	11.0	12.2 13.5	50	18.2	549.5	3000	P600	预览	样片与订购
10KP12A 10KP12CA	12.0	13.3 14.7	50	19.9	502.5	2000	P600	预览	样片与订购
10KP13A 10KP13CA	13.0	14.4 15.9	50	21.5	465.1	1000	P600	预览	样片与订购
10KP14A 10KP14CA	14.0	15.6 17.2	50	23.2	431.0	800	P600	预览	样片与订购
10KP15A 10KP15CA	15.0	16.7 18.5	5	24.4	409.8	500	P600	预览	样片与订购
10KP16A 10KP16CA	16.0	17.8 19.7	5	26.0	384.6	100	P600	预览	样片与订购
10KP17A 10KP17CA	17.0	18.9 20.9	5	27.6	362.3	45	P600	预览	样片与订购
10KP18A 10KP18CA	18.0	20.0 22.1	5	29.2	342.5	20	P600	预览	样片与订购
10KP20A 10KP20CA	20.0	22.2 24.5	5	32.4	308.6	5	P600	预览	样片与订购
10KP22A 10KP22CA	22.0	24.4 26.9	5	35.5	281.7	3	P600	预览	样片与订购
10KP24A 10KP24CA	24.0	26.7 29.5	5	38.9	257.1	2	P600	预览	样片与订购
10KP26A 10KP26CA	26.0	28.9 31.9	5	42.1	237.5	2	P600	预览	样片与订购
10KP28A 10KP28CA	28.0	31.1 34.4	5	45.4	220.3	2	P600	预览	样片与订购
10KP30A 10KP30CA	30.0	33.3 36.8	5	48.4	206.6	2	P600	预览	样片与订购
10KP33A 10KP33CA	33.0	36.7 40.6	5	53.3	187.6	2	P600	预览	样片与订购
10KP36A 10KP36CA	36.0	40.0 44.2	5	58.1	172.1	2	P600	预览	样片与订购
10KP40A 10KP40CA	40.0	44.4 49.1	5	64.5	155.0	2	P600	预览	样片与订购
10KP43A 10KP43CA	43.0	47.8 52.8	5	69.4	144.1	2	P600	预览	样片与订购
10KP45A 10KP45CA	45.0	50.0 55.3	5	72.7	137.6	2	P600	预览	样片与订购
10KP48A 10KP48CA	48.0	53.3 58.9	5	77.4	129.2	2	P600	预览	样片与订购
10KP51A 10KP51CA	51.0	56.7 62.7	5	82.4	121.4	2	P600	预览	样片与订购
10KP54A 10KP54CA	54.0	60.0 66.3	5	87.1	114.8	2	P600	预览	样片与订购
10KP58A 10KP58CA	58.0	64.4 71.2	5	93.6	106.8	2	P600	预览	样片与订购
10KP60A 10KP60CA	60.0	66.7 73.7	5	96.8	103.3	2	P600	预览	样片与订购
10KP64A 10KP64CA	64.0	71.1 78.6	5	103.0	97.1	2	P600	预览	样片与订购
10KP70A 10KP70CA	70.0	77.8 86.0	5	113.0	88.5	2	P600	预览	样片与订购
10KP75A 10KP75CA	75.0	83.3 92.1	5	121.0	82.6	2	P600	预览	样片与订购
10KP78A 10KP78CA	78.0	86.7 95.8	5	126.0	79.4	2	P600	预览	样片与订购
10KP85A 10KP85CA	85.0	94.4 104.0	5	137.0	73.0	2	P600	预览	样片与订购
10KP90A 10KP90CA	90.0	100.0 111.0	5	146.0	68.5	2	P600	预览	样片与订购
10KP100A 10KP100CA	100.0	111.0 123.0	5	162.0	61.7	2	P600	预览	样片与订购
10KP110A 10KP110CA	110.0	122.0 135.0	5	177.0	56.5	2	P600	预览	样片与订购
10KP120A 10KP120CA	120.0	133.0 147.0	5	193.0	51.8	2	P600	预览	样片与订购
10KP130A 10KP13C0A	130.0	144.0 159.0	5	209.0	47.8	2	P600	预览	样片与订购
10KP150A 10KP150CA	150.0	167.0 185.0	5	243.0	41.2	2	P600	预览	样片与订购
10KP160A 10KP160CA	160.0	178.0 197.0	5	259.0	38.6	2	P600	预览	样片与订购
10KP170A 10KP170CA	170.0	189.0 209.0	5	275.0	36.4	2	P600	预览	样片与订购
10KP180A 10KP180CA	180.0	201.0 221.0	5	292.0	34.2	2	P600	预览	样片与订购
10KP190A 10KP190CA	190.0	211.0 233.0	5	310.0	32.3	2	P600	预览	样片与订购
10KP200A 10KP200CA	200.0	224.0 246.0	5	329.2	30.4	2	P600	预览	样片与订购
10KP210A 10KP210CA	210.0	237.0 258.0	5	349.5	28.6	2	P600	预览	样片与订购
10KP220A 10KP220CA	220.0	246.0 270.0	5	371.1	26.9	2	P600	预览	样片与订购
10KP250A 10KP250CA	250.0	279.0 306.0	5	425.0	23.5	2	P600	预览	样片与订购

工业级TVS

———

8.0SMDJ

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
8.0SMDJ22A 8.0SMDJ22CA	22.0	24.40 26.90	1	35.5	225.4	5	SMD	预览	样片与订购
8.0SMDJ24A 8.0SMDJ24CA	24.0	26.70 29.50	1	38.9	205.7	5	SMD	预览	样片与订购
8.0SMDJ26A 8.0SMDJ26CA	26.0	28.90 31.90	1	42.1	190.1	5	SMD	预览	样片与订购
8.0SMDJ28A 8.0SMDJ28CA	28.0	31.10 34.40	1	45.4	176.2	5	SMD	预览	样片与订购
8.0SMDJ30A 8.0SMDJ30CA	30.0	33.30 36.80	1	48.4	165.3	5	SMD	预览	样片与订购
8.0SMDJ33A 8.0SMDJ33CA	33.0	36.70 40.60	1	53.3	150.1	5	SMD	预览	样片与订购
8.0SMDJ36A 8.0SMDJ36CA	36.0	40.00 44.20	1	58.1	137.8	5	SMD	预览	样片与订购
8.0SMDJ40A 8.0SMDJ40CA	40.0	44.40 49.10	1	64.5	124.2	5	SMD	预览	样片与订购
8.0SMDJ43A 8.0SMDJ43CA	43.0	47.80 52.80	1	69.4	115.4	5	SMD	预览	样片与订购
8.0SMDJ45A 8.0SMDJ45CA	45.0	50.00 55.30	1	72.7	110.1	5	SMD	预览	样片与订购
8.0SMDJ48A	48.0	53.30 58.90	1	77.4	103.6	5	SMD	预览	样片与订购
8.0SMDJ51A	51.0	56.70 62.70	1	82.4	97.0	5	SMD	预览	样片与订购
8.0SMDJ54A	54.0	60.00 66.30	1	87.1	92.0	5	SMD	预览	样片与订购
8.0SMDJ58A	58.0	64.40 71.20	1	93.6	85.6	5	SMD	预览	样片与订购
8.0SMDJ60A	60.0	66.70 73.70	1	96.8	82.8	5	SMD	预览	样片与订购
8.0SMDJ64A	64.0	71.10 78.60	1	103.0	77.8	5	SMD	预览	样片与订购
8.0SMDJ70A	70.0	77.80 86.00	1	113.0	70.9	5	SMD	预览	样片与订购
8.0SMDJ75A	75.0	83.30 92.10	1	121.0	66.3	5	SMD	预览	样片与订购
8.0SMDJ78A	78.0	86.70 95.80	1	126.0	63.6	5	SMD	预览	样片与订购
8.0SMDJ85A	85.0	94.40 104.00	1	137.0	58.4	5	SMD	预览	样片与订购
8.0SMDJ90A	90.0	100.00 111.00	1	146.0	54.9	5	SMD	预览	样片与订购
8.0SMDJ100A	100.0	111.00 123.00	1	162.0	49.4	5	SMD	预览	样片与订购

车规级TVS

———

P6SMA-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
P6SMA6.8A-Q P6SMA6.8CA-Q	5.80	6.45 7.14	10	10.5	58.1	1000	SMA	预览	样片与订购
P6SMA7.5A-Q P6SMA7.5CA-Q	6.40	7.13 7.88	10	11.3	54.0	500	SMA	预览	样片与订购
P6SMA8.2A-Q P6SMA8.2CA-Q	7.02	7.79 8.61	10	12.1	50.4	200	SMA	预览	样片与订购
P6SMA9.1A-Q P6SMA9.1CA-Q	7.78	8.65 9.55	1	13.4	45.5	50	SMA	预览	样片与订购
P6SMA10A-Q P6SMA10CA-Q	8.55	9.50 10.50	1	14.5	42.1	10	SMA	预览	样片与订购
P6SMA11A-Q P6SMA11CA-Q	9.40	10.50 11.60	1	15.6	39.1	5	SMA	预览	样片与订购
P6SMA12A-Q P6SMA12CA-Q	10.20	11.40 12.60	1	16.7	36.5	5	SMA	预览	样片与订购
P6SMA13A-Q P6SMA13CA-Q	11.10	12.40 13.70	1	18.2	33.5	1	SMA	预览	样片与订购
P6SMA15A-Q P6SMA15CA-Q	12.80	14.30 15.80	1	21.2	28.8	1	SMA	预览	样片与订购
P6SMA16A-Q P6SMA16CA-Q	13.60	15.20 16.80	1	22.5	27.1	1	SMA	预览	样片与订购
P6SMA18A-Q P6SMA18CA-Q	15.30	17.10 18.90	1	25.2	24.2	1	SMA	预览	样片与订购
P6SMA20A-Q P6SMA20CA-Q	17.10	19.00 21.00	1	27.7	22.0	1	SMA	预览	样片与订购
P6SMA22A-Q P6SMA22CA-Q	18.80	20.90 23.10	1	30.6	19.9	1	SMA	预览	样片与订购
P6SMA24A-Q P6SMA24CA-Q	20.50	22.80 25.20	1	33.2	18.4	1	SMA	预览	样片与订购
P6SMA27A-Q P6SMA27CA-Q	23.10	25.70 28.40	1	37.5	16.3	1	SMA	预览	样片与订购
P6SMA30A-Q P6SMA30CA-Q	25.60	28.50 31.50	1	41.4	14.7	1	SMA	预览	样片与订购
P6SMA33A-Q P6SMA33CA-Q	28.20	31.40 34.70	1	45.7	13.2	1	SMA	预览	样片与订购
P6SMA36A-Q P6SMA36CA-Q	30.80	34.20 37.80	1	49.9	12.2	1	SMA	预览	样片与订购
P6SMA39A-Q P6SMA39CA-Q	33.30	37.10 41.00	1	53.9	11.3	1	SMA	预览	样片与订购
P6SMA43A-Q P6SMA43CA-Q	36.80	40.90 45.20	1	59.3	10.3	1	SMA	预览	样片与订购
P6SMA47A-Q P6SMA47CA-Q	40.20	44.70 49.40	1	64.8	9.4	1	SMA	预览	样片与订购

车规级TVS

———

SMF-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
SMF5.0A-Q SMF5.0CA-Q	5.0	6.40 7.00	10	9.2	21.8	500	SMF	预览	样片与订购
SMF6.0A-Q SMF6.0CA-Q	6.0	6.67 7.37	10	10.3	19.4	400	SMF	预览	样片与订购
SMF6.5A-Q SMF6.5CA-Q	6.5	7.22 7.98	10	11.2	17.9	350	SMF	预览	样片与订购
SMF7.0A-Q SMF7.0CA-Q	7.0	7.78 8.60	10	12.0	16.7	200	SMF	预览	样片与订购
SMF7.5A-Q SMF7.5CA-Q	7.5	8.33 9.21	1	12.9	15.5	100	SMF	预览	样片与订购
SMF8.0A-Q SMF8.0CA-Q	8.0	8.89 9.83	1	13.6	14.7	50	SMF	预览	样片与订购
SMF8.5A-Q SMF8.5CA-Q	8.5	9.44 10.40	1	14.4	13.9	20	SMF	预览	样片与订购
SMF9.0A-Q SMF9.0CA-Q	9.0	10.00 11.10	1	15.4	13.0	10	SMF	预览	样片与订购
SMF10A-Q SMF10CA-Q	10.0	11.10 12.30	1	17.0	11.8	5	SMF	预览	样片与订购
SMF11A-Q SMF11CA-Q	11.0	12.20 13.50	1	18.2	11.0	3	SMF	预览	样片与订购
SMF12A-Q SMF12CA-Q	12.0	13.30 14.70	1	19.9	10.1	1	SMF	预览	样片与订购
SMF13A-Q SMF13CA-Q	13.0	14.40 15.90	1	21.5	9.3	1	SMF	预览	样片与订购
SMF14A-Q SMF14CA-Q	14.0	15.60 17.20	1	23.2	8.6	1	SMF	预览	样片与订购
SMF15A-Q SMF15CA-Q	15.0	16.70 18.50	1	24.4	8.2	1	SMF	预览	样片与订购
SMF16A-Q SMF16CA-Q	16.0	17.80 19.70	1	26.0	7.7	1	SMF	预览	样片与订购
SMF17A-Q SMF17CA-Q	17.0	18.90 20.90	1	27.6	7.3	1	SMF	预览	样片与订购
SMF18A-Q SMF18CA-Q	18.0	20.00 22.10	1	29.2	6.9	1	SMF	预览	样片与订购
SMF20A-Q SMF20CA-Q	20.0	22.20 24.50	1	32.4	6.2	1	SMF	预览	样片与订购
SMF22A-Q SMF22CA-Q	22.0	24.40 26.90	1	35.5	5.7	1	SMF	预览	样片与订购
SMF24A-Q SMF24CA-Q	24.0	26.70 29.50	1	38.9	5.2	1	SMF	预览	样片与订购
SMF26A-Q SMF26CA-Q	26.0	28.90 31.90	1	42.1	4.8	1	SMF	预览	样片与订购
SMF28A-Q SMF28CA-Q	28.0	31.10 34.40	1	45.4	4.4	1	SMF	预览	样片与订购
SMF30A-Q SMF30A-Q	30.0	33.30 36.80	1	48.4	4.2	1	SMF	预览	样片与订购
SMF33A-Q SMF33CA-Q	33.0	36.70 40.60	1	53.3	3.8	1	SMF	预览	样片与订购
SMF36A-Q SMF36CA-Q	36.0	40.00 44.20	1	58.1	3.5	1	SMF	预览	样片与订购
SMF40A-Q SMF40CA-Q	40.0	44.40 49.10	1	64.5	3.1	1	SMF	预览	样片与订购
SMF43A-Q SMF43CA-Q	43.0	47.80 52.80	1	69.4	2.9	1	SMF	预览	样片与订购
SMF45A-Q SMF45CA-Q	45.0	50.00 55.30	1	72.7	2.8	1	SMF	预览	样片与订购
SMF48A-Q SMF48CA-Q	48.0	53.30 58.90	1	77.4	2.6	1	SMF	预览	样片与订购
SMF51A-Q SMF51CA-Q	51.0	56.70 62.70	1	82.4	2.5	1	SMF	预览	样片与订购
SMF54A-Q SMF54CA-Q	54.0	60.00 66.30	1	87.1	2.3	1	SMF	预览	样片与订购
SMF58A-Q SMF58CA-Q	58.0	64.40 71.20	1	93.6	2.2	1	SMF	预览	样片与订购
SMF60A-Q SMF60CA-Q	60.0	66.70 73.70	1	96.8	2.1	1	SMF	预览	样片与订购
SMF64A-Q SMF64CA-Q	64.0	71.10 78.60	1	103.0	2	1	SMF	预览	样片与订购
SMF70A-Q SMF70CA-Q	70.0	77.80 86.00	1	113.0	1.8	1	SMF	预览	样片与订购
SMF75A-Q SMF75CA-Q	75.0	83.30 92.10	1	121.0	1.7	1	SMF	预览	样片与订购
SMF78A-Q SMF78CA-Q	78.0	86.70 95.80	1	126.0	1.6	1	SMF	预览	样片与订购
SMF85A-Q SMF85CA-Q	85.0	94.40 104.00	1	137.0	1.5	1	SMF	预览	样片与订购
SMF90A-Q SMF90CA-Q	90.0	100.00 111.00	1	146.0	1.4	1	SMF	预览	样片与订购
SMF100A-Q SMF100CA-Q	100.0	111.00 123.00	1	162.0	1.3	1	SMF	预览	样片与订购
SMF110A-Q SMF110CA-Q	110.0	122.00 135.00	1	177.0	1.2	1	SMF	预览	样片与订购
SMF120A-Q SMF120CA-Q	120.0	133.00 147.00	1	193.0	1.1	1	SMF	预览	样片与订购
SMF130A-Q SMF130CA-Q	130.0	144.00 159.00	1	209.0	1	1	SMF	预览	样片与订购
SMF150A-Q SMF150CA-Q	150.0	167.00 185.00	1	243.0	0.8	1	SMF	预览	样片与订购
SMF160A-Q SMF160CA-Q	160.0	178.00 197.00	1	259.0	0.8	1	SMF	预览	样片与订购
SMF170A-Q SMF170CA-Q	170.0	189.00 209.00	1	275.0	0.8	1	SMF	预览	样片与订购
SMF180A-Q SMF180CA-Q	180.0	201.00 222.00	1	292.0	0.7	1	SMF	预览	样片与订购

工业级TVS

———

1.0SMBJ

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
1.0SMBJ5.0A 1.0SMBJ5.0CA	5.0	6.40 7.00	10	9.2	108.70	800	SMB	预览	样片与订购
1.0SMBJ6.0A 1.0SMBJ6.0CA	6.0	6.67 7.37	10	10.3	97.10	800	SMB	预览	样片与订购
1.0SMBJ6.5A 1.0SMBJ6.5CA	6.5	7.22 7.98	10	11.2	89.30	500	SMB	预览	样片与订购
1.0SMBJ7.0A 1.0SMBJ7.0CA	7.0	7.78 8.60	10	12.0	83.40	200	SMB	预览	样片与订购
1.0SMBJ7.5A 1.0SMBJ7.5CA	7.5	8.33 9.21	1	12.9	77.60	100	SMB	预览	样片与订购
1.0SMBJ8.0A 1.0SMBJ8.0CA	8.0	8.89 9.83	1	13.6	73.60	50	SMB	预览	样片与订购
1.0SMBJ8.5A 1.0SMBJ8.5CA	8.5	9.44 10.40	1	14.4	69.50	20	SMB	预览	样片与订购
1.0SMBJ9.0A 1.0SMBJ9.0CA	9.0	10.00 11.10	1	15.4	65.00	10	SMB	预览	样片与订购
1.0SMBJ10A 1.0SMBJ10CA	10.0	11.10 12.30	1	17.0	58.90	5	SMB	预览	样片与订购
1.0SMBJ11A 1.0SMBJ11CA	11.0	12.20 13.50	1	18.2	55.00	1	SMB	预览	样片与订购
1.0SMBJ12A 1.0SMBJ12CA	12.0	13.30 14.70	1	19.9	50.30	1	SMB	预览	样片与订购
1.0SMBJ13A 1.0SMBJ13CA	13.0	14.40 15.90	1	21.5	46.60	1	SMB	预览	样片与订购
1.0SMBJ15A 1.0SMBJ15CA	15.0	16.70 18.50	1	24.4	41.00	1	SMB	预览	样片与订购
1.0SMBJ16A 1.0SMBJ16CA	16.0	17.80 19.70	1	26.0	38.50	1	SMB	预览	样片与订购
1.0SMBJ17A 1.0SMBJ17CA	17.0	18.90 20.90	1	27.6	36.30	1	SMB	预览	样片与订购
1.0SMBJ18A 1.0SMBJ18CA	18.0	20.00 22.10	1	29.2	34.30	1	SMB	预览	样片与订购
1.0SMBJ20A 1.0SMBJ20CA	20.0	22.20 24.50	1	32.4	30.90	1	SMB	预览	样片与订购
1.0SMBJ22A 1.0SMBJ22CA	22.0	24.40 26.90	1	35.5	28.20	1	SMB	预览	样片与订购
1.0SMBJ24A 1.0SMBJ24CA	24.0	26.70 29.50	1	38.9	25.80	1	SMB	预览	样片与订购
1.0SMBJ26A 1.0SMBJ26CA	26.0	28.90 31.90	1	42.1	23.80	1	SMB	预览	样片与订购
1.0SMBJ28A 1.0SMBJ28CA	28.0	31.10 34.40	1	45.4	22.10	1	SMB	预览	样片与订购
1.0SMBJ30A 1.0SMBJ30CA	30.0	33.30 36.80	1	48.4	20.70	1	SMB	预览	样片与订购
1.0SMBJ33A 1.0SMBJ33CA	33.0	36.70 40.60	1	53.3	18.80	1	SMB	预览	样片与订购
1.0SMBJ36A 1.0SMBJ36CA	36.0	40.00 44.20	1	58.1	17.30	1	SMB	预览	样片与订购
1.0SMBJ40A 1.0SMBJ40CA	40.0	44.40 49.10	1	64.5	15.60	1	SMB	预览	样片与订购
1.0SMBJ43A 1.0SMBJ43CA	43.0	47.80 52.80	1	69.4	14.50	1	SMB	预览	样片与订购
1.0SMBJ45A 1.0SMBJ45CA	45.0	50.00 55.30	1	72.7	13.80	1	SMB	预览	样片与订购
1.0SMBJ48A 1.0SMBJ48CA	48.0	53.30 58.90	1	77.4	13.00	1	SMB	预览	样片与订购
1.0SMBJ51A 1.0SMBJ51CA	51.0	56.70 62.70	1	82.4	12.20	1	SMB	预览	样片与订购
1.0SMBJ54A 1.0SMBJ54CA	54.0	60.00 66.30	1	87.1	11.50	1	SMB	预览	样片与订购
1.0SMBJ58A 1.0SMBJ58CA	58.0	64.40 71.20	1	93.6	10.70	1	SMB	预览	样片与订购
1.0SMBJ60A 1.0SMBJ60CA	60.0	66.70 73.70	1	96.8	10.40	1	SMB	预览	样片与订购

工业级TVS

———

P6SMA

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
P6SMA6.8A P6SMA6.8CA	5.80	6.45 7.14	10	10.5	58.1	1000	SMA	预览	样片与订购
P6SMA7.5A P6SMA7.5CA	6.40	7.13 7.88	10	11.3	54.0	500	SMA	预览	样片与订购
P6SMA8.2A P6SMA8.2CA	7.02	7.79 8.61	10	12.1	50.4	200	SMA	预览	样片与订购
P6SMA9.1A P6SMA9.1CA	7.78	8.65 9.55	1	13.4	45.5	50	SMA	预览	样片与订购
P6SMA10A P6SMA10CA	8.55	9.50 10.50	1	14.5	42.1	10	SMA	预览	样片与订购
P6SMA11A P6SMA11CA	9.40	10.50 11.60	1	15.6	39.1	5	SMA	预览	样片与订购
P6SMA12A P6SMA12CA	10.20	11.40 12.60	1	16.7	36.5	5	SMA	预览	样片与订购
P6SMA13A P6SMA13CA	11.10	12.40 13.70	1	18.2	33.5	1	SMA	预览	样片与订购
P6SMA15A P6SMA15CA	12.80	14.30 15.80	1	21.2	28.8	1	SMA	预览	样片与订购
P6SMA16A P6SMA16CA	13.60	15.20 16.80	1	22.5	27.1	1	SMA	预览	样片与订购
P6SMA18A P6SMA18CA	15.30	17.10 18.90	1	25.2	24.2	1	SMA	预览	样片与订购
P6SMA20A P6SMA20CA	17.10	19.00 21.00	1	27.7	22.0	1	SMA	预览	样片与订购
P6SMA22A P6SMA22CA	18.80	20.90 23.10	1	30.6	19.9	1	SMA	预览	样片与订购
P6SMA24A P6SMA24CA	20.50	22.80 25.20	1	33.2	18.4	1	SMA	预览	样片与订购
P6SMA27A P6SMA27CA	23.10	25.70 28.40	1	37.5	16.3	1	SMA	预览	样片与订购
P6SMA30A P6SMA30CA	25.60	28.50 31.50	1	41.4	14.7	1	SMA	预览	样片与订购
P6SMA33A P6SMA33CA	28.20	31.40 34.70	1	45.7	13.2	1	SMA	预览	样片与订购
P6SMA36A P6SMA36CA	30.80	34.20 37.80	1	49.9	12.2	1	SMA	预览	样片与订购
P6SMA39A P6SMA39CA	33.30	37.10 41.00	1	53.9	11.3	1	SMA	预览	样片与订购
P6SMA43A P6SMA43CA	36.80	40.90 45.20	1	59.3	10.3	1	SMA	预览	样片与订购
P6SMA47A P6SMA47CA	40.20	44.70 49.40	1	64.8	9.4	1	SMA	预览	样片与订购

工业级TVS

———

30KP

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
30KP288A 30KP288CA	288	321.7 355.56	5	469.9	64.5	2	P600	预览	样片与订购
30KP300A 30KP300CA	300	334 367.4	5	484	62	2	P600	预览	样片与订购
30KP320A 30KP320CA	320	357.4 391.4	5	530	57.2	2	P600	预览	样片与订购
30KP350A 30KP350CA	350	391 428.1	5	567	53.4	2	P600	预览	样片与订购
30KP360A 30KP360CA	360	402.1 440.3	5	640	47.3	2	P600	预览	样片与订购
30KP280A 30KP280CA	280	312.8 345.73	5	464	65.3	2	P600	预览	样片与订购
30KP270A 30KP270CA	270	301.6 333.35	5	436.2	69.5	2	P600	预览	样片与订购
30KP260A 30KP260CA	260	290.4 320.97	5	416	72.8	2	P600	预览	样片与订购
30KP258A 30KP258CA	258	288.2 318.54	5	416.4	72.8	2	P600	预览	样片与订购
30KP240A 30KP240CA	240	268.1 296.32	5	387	78.3	2	P600	预览	样片与订购
30KP216A 30KP216CA	216	241.3 266.7	5	348.6	86.9	2	P600	预览	样片与订购
30KP198A 30KP198CA	198	221.2 244.48	5	319.8	94.7	2	P600	预览	样片与订购
30KP180A 30KP180CA	180	201.1 222.27	5	290.4	104.3	2	P600	预览	样片与订购
30KP170A 30KP170CA	170	189.9 209.89	5	275	110.2	2	P600	预览	样片与订购
30KP168A 30KP168CA	168	187.7 207.46	5	272.4	111.2	2	P600	预览	样片与订购
30KP160A 30KP160CA	160	178.7 197.51	5	252.6	120	2	P600	预览	样片与订购
30KP156A 30KP156CA	156	174.3 192.65	5	245	123.7	2	P600	预览	样片与订购
30KP150A 30KP150CA	150	167.6 185.24	5	233.4	129.8	2	P600	预览	样片与订购
30KP144A 30KP144CA	144	160.8 177.73	5	223.2	135.8	2	P600	预览	样片与订购
30KP132A 30KP132CA	132	147.4 162.92	5	213	142.3	2	P600	预览	样片与订购
30KP120A 30KP120CA	120	134 148.11	5	194.4	155.9	2	P600	预览	样片与订购
30KP108A 30KP108CA	108	120.6 133.29	5	175.2	172.9	2	P600	预览	样片与订购
30KP102A 30KP102CA	102	113.9 125.89	5	165.6	183	2	P600	预览	样片与订购
30KP96A 30KP96CA	96	107.2 118.48	5	156	194.2	2	P600	预览	样片与订购
30KP90A 30KP90CA	90	100.5 111.08	5	146.4	207	2	P600	预览	样片与订购
30KP84A 30KP84CA	84	93.8 103.67	5	139.2	217.7	2	P600	预览	样片与订购
30KP78A 30KP78CA	78	87.1 96.27	5	129	234.9	2	P600	预览	样片与订购
30KP78A 30KP78CA	78	87.1 96.27	5	129	234.9	2	P600	预览	样片与订购
30KP75A 30KP75CA	75	83.8 92.62	5	119.4	253.8	2	P600	预览	样片与订购
30KP72A 30KP72CA	72	80.4 88.86	5	114	265.8	2	P600	预览	样片与订购
30KP71A 30KP71CA	71	79.3 87.65	5	111.5	271.7	2	P600	预览	样片与订购
30KP70A 30KP70CA	70	78.2 86.43	5	109	278	2	P600	预览	样片与订购
30KP66A 30KP66CA	66	73.7 81.46	5	107	283.2	2	P600	预览	样片与订购
30KP64A 30KP64CA	64	71.5 79.03	5	104	291.3	5	P600	预览	样片与订购
30KP60A 30KP60CA	60	67 74.05	5	102	297.1	5	P600	预览	样片与订购
30KP58A 30KP58CA	58	64.8 71.62	5	92.4	327.9	5	P600	预览	样片与订购
30KP54A 30KP54CA	54	60.3 66.65	5	91.4	331.5	5	P600	预览	样片与订购
30KP51A 30KP51CA	51	57 63	5	86.4	350.7	10	P600	预览	样片与订购
30KP48A 30KP48CA	48	53.6 59.24	5	81.6	371.3	15	P600	预览	样片与订购
30KP45A 30KP45CA	45	50.3 55.59	5	77.4	391.5	30	P600	预览	样片与订购
30KP43A 30KP43CA	43	48 53.05	10	73	415.1	150	P600	预览	样片与订购
30KP42A 30KP42CA	42	46.9 51.84	10	72	420.8	200	P600	预览	样片与订购
30KP39A 30KP39CA	39	43.6 48.19	20	67.2	450.9	800	P600	预览	样片与订购
30KP36A 30KP36CA	36	40.2 44.43	50	61.8	490.3	1000	P600	预览	样片与订购
30KP33A 30KP33CA	33	36.9 40.78	50	58.5	517.9	1500	P600	预览	样片与订购
30KP30A 30KP30CA	30	33.51 37.04	50	55.2	548.9	2000	P600	预览	样片与订购
30KP28A 30KP28CA	28	31.28 34.57	50	50	606	2500	P600	预览	样片与订购

车规级TVS

———

15KP-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
15KP280A-Q 15KP280CA-Q	280	312.8 349.45	5	454.5	33.2	2	P600	预览	样片与订购
15KP260A-Q 15KP260CA-Q	260	290.4 324.49	5	416.7	36.2	2	P600	预览	样片与订购
15KP240A-Q 15KP240CA-Q	240	268.1 299.53	5	384.6	39.3	2	P600	预览	样片与订购
15KP220A-Q 15KP220CA-Q	220	245.7 274.57	5	352.5	42.8	2	P600	预览	样片与订购
15KP220A-Q 15KP200CA-Q	200	223.4 249.61	5	319.1	47.3	2	P600	预览	样片与订购
15KP180A-Q 15KP180CA-Q	180	201.1 224.65	5	288.5	52.3	2	P600	预览	样片与订购
15KP170A-Q 15KP170CA-Q	170	189.9 212.17	5	272.7	55.4	2	P600	预览	样片与订购
15KP160A-Q 15KP160CA-Q	160	178.7 199.69	5	258.6	58.4	2	P600	预览	样片与订购
15KP150A-Q 15KP150CA-Q	150	167.6 187.21	5	241.9	62.4	2	P600	预览	样片与订购
15KP130A-Q 15KP130CA-Q	130	145.2 162.25	5	208.3	72.5	2	P600	预览	样片与订购
15KP120A-Q 15KP120CA-Q	120	134 149.76	5	192.3	78.5	2	P600	预览	样片与订购
15KP110A-Q 15KP110CA-Q	110	122.9 137.28	5	178.6	84.5	2	P600	预览	样片与订购
15KP100A-Q 15KP100CA-Q	100	111.7 124.8	5	161.3	93.6	2	P600	预览	样片与订购
15KP90A-Q 15KP90CA-Q	90	100.5 112.32	5	145.6	103.7	2	P600	预览	样片与订购
15KP85A-Q 15KP85CA-Q	85	94.9 106.08	5	137.6	109.7	2	P600	预览	样片与订购
15KP78A-Q 15KP78CA-Q	78	87.1 97.35	5	126.1	119.7	2	P600	预览	样片与订购
15KP75A-Q 15KP75CA-Q	75	83.8 93.6	5	122	123.8	2	P600	预览	样片与订购
15KP70A-Q 15KP70CA-Q	70	78.2 87.36	5	113.6	132.9	2	P600	预览	样片与订购
15KP64A-Q 15KP64CA-Q	64	71.5 79.87	5	104.2	144.9	2	P600	预览	样片与订购
15KP60A-Q 15KP60CA-Q	60	67 74.88	5	97.4	155	2	P600	预览	样片与订购
15KP58A-Q 15KP58CA-Q	58	64.8 72.39	5	93.8	161	2	P600	预览	样片与订购
15KP54A-Q 15KP54CA-Q	54	60.3 67.39	5	87.7	172.2	2	P600	预览	样片与订购
15KP51A-Q 15KP51CA-Q	51	57 63.65	5	82.9	182.1	2	P600	预览	样片与订购
15KP48A-Q 15KP48CA-Q	48	53.6 59.91	5	77.7	194.3	2	P600	预览	样片与订购
15KP45A-Q 15KP45CA-Q	45	50.3 56.16	5	72.8	207.4	2	P600	预览	样片与订购
15KP43A-Q 15KP43CA-Q	43	48 53.67	5	69.8	216.3	2	P600	预览	样片与订购
15KP40A-Q 15KP40CA-Q	40	44.7 49.92	5	65.8	229.5	2	P600	预览	样片与订购
15KP36A-Q 15KP36CA-Q	36	40.2 44.93	5	59.8	252.5	2	P600	预览	样片与订购
15KP33A-Q 15KP33CA-Q	33	36.9 41.19	5	54.7	276.1	2	P600	预览	样片与订购
15KP30A-Q 15KP30CA-Q	30	33.51 37.44	5	50.7	297.8	10	P600	预览	样片与订购
15KP28A-Q 15KP28CA-Q	28	31.28 34.95	5	47.5	317.9	25	P600	预览	样片与订购
15KP26A-Q 15KP26CA-Q	26	29.04 32.45	5	40.7	371	150	P600	预览	样片与订购
15KP22A-Q 15KP22CA-Q	22	24.57 27.46	10	37.1	407	500	P600	预览	样片与订购
15KP20A-Q 15KP20CA-Q	20	22.34 24.96	20	34.3	440.2	1000	P600	预览	样片与订购
15KP18A-Q 15KP18CA-Q	18	20.11 22.65	50	30.9	488.7	1500	P600	预览	样片与订购
15KP17A-Q 15KP17CA-Q	17	18.99 21.22	50	29.3	515.4	2500	P600	预览	样片与订购

车规级TVS

———

5KP-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
5KP250A-Q 5KP250CA-Q	250	277 306	5	425	12	2	P600	预览	样片与订购
5KP220A-Q 5KP220CA-Q	220	246 272	5	371.1	13.7	2	P600	预览	样片与订购
5KP210A-Q 5KP210CA-Q	210	237 263	5	349.5	14.6	2	P600	预览	样片与订购
5KP200A-Q 5KP200CA-Q	200	224 247	5	329.2	15.5	2	P600	预览	样片与订购
5KP190A-Q 5KP190CA-Q	190	211 233	5	310	16.5	2	P600	预览	样片与订购
5KP180A-Q 5KP180CA-Q	180	201 222	5	292	17.5	2	P600	预览	样片与订购
5KP170A-Q 5KP170CA-Q	170	189 209	5	275	18.5	2	P600	预览	样片与订购
5KP160A-Q 5KP160CA-Q	160	178 197	5	259	19.7	2	P600	预览	样片与订购
5KP150A-Q 5KP150CA-Q	150	167 185	5	243	21	2	P600	预览	样片与订购
5KP130A-Q 5KP130CA-Q	130	144 159	5	209	24.4	2	P600	预览	样片与订购
5KP120A-Q 5KP120CA-Q	120	133 147	5	193	26.4	2	P600	预览	样片与订购
5KP110A-Q 5KP110CA-Q	110	122 135	5	177	28.8	2	P600	预览	样片与订购
5KP100A-Q 5KP100CA-Q	100	110 123	5	162	31.5	2	P600	预览	样片与订购
5KP90A-Q 5KP90CA-Q	90	100 111	5	146	34.9	2	P600	预览	样片与订购
5KP85A-Q 5KP85CA-Q	85	94.4 104	5	137	37.2	2	P600	预览	样片与订购
5KP78A-Q 5KP78CA-Q	78	86.7 95.8	5	126	40.5	2	P600	预览	样片与订购
5KP75A-Q 5KP75CA-Q	75	83.3 92.1	5	121	42.1	2	P600	预览	样片与订购
5KP70A-Q 5KP70CA-Q	70	77.8 86	5	113	45.1	2	P600	预览	样片与订购
5KP64A-Q 5KP64CA-Q	64	71.1 78.6	5	96.8	52.7	2	P600	预览	样片与订购
5KP58A-Q 5KP58CA-Q	58	64.4 71.2	5	93.6	54.5	2	P600	预览	样片与订购
5KP54A-Q 5KP54CA-Q	54	60 66.3	5	87.1	58.6	2	P600	预览	样片与订购
5KP51A-Q 5KP51CA-Q	51	56.7 62.7	5	82.4	61.9	2	P600	预览	样片与订购
5KP48A-Q 5KP48CA-Q	48	53.3 58.9	5	77.4	65.9	2	P600	预览	样片与订购
5KP45A-Q 5KP45CA-Q	45	50 55.3	5	72.7	70.2	2	P600	预览	样片与订购
5KP43A-Q 5KP43CA-Q	43	47.8 52.8	5	69.4	73.5	2	P600	预览	样片与订购
5KP40A-Q 5KP40CA-Q	40	44.4 49.1	5	64.5	79.1	2	P600	预览	样片与订购
5KP36A-Q 5KP36CA-Q	36	40 44.2	5	58.1	87.8	2	P600	预览	样片与订购
5KP33A-Q 5KP33CA-Q	33	36.7 40.6	5	53.3	95.7	2	P600	预览	样片与订购
5KP30A-Q 5KP30CA-Q	30	33.3 36.8	5	48.4	105.4	2	P600	预览	样片与订购
5KP28A-Q 5KP28CA-Q	28	31.1 34.4	5	45.4	112.3	2	P600	预览	样片与订购
5KP26A-Q 5KP26CA-Q	26	28.9 28.9	5	42.1	121.1	2	P600	预览	样片与订购
5KP24A-Q 5KP24CA-Q	24	26.7 29.5	5	38.9	131.1	2	P600	预览	样片与订购
5KP22A-Q 5KP22CA-Q	22	24.4 26.9	5	35.5	143.7	2	P600	预览	样片与订购
5KP20A-Q 5KP20CA-Q	20	22.2 24.5	5	32.4	157.4	2	P600	预览	样片与订购
5KP18A-Q 5KP18CA-Q	18	20 22.1	5	29.2	174.7	2	P600	预览	样片与订购
5KP17A-Q 5KP17CA-Q	17	18.9 20.9	5	27.6	184.8	2	P600	预览	样片与订购
5KP16A-Q 5KP16CA-Q	16	17.8 19.7	5	26	196.2	2	P600	预览	样片与订购
5KP15A-Q 5KP15CA-Q	15	16.7 18.5	5	24.4	209	2	P600	预览	样片与订购
5KP14A-Q 5KP14CA-Q	14	15.6 17.2	5	23.2	219.8	2	P600	预览	样片与订购
5KP13A-Q 5KP13CA-Q	13	14.4 15.9	5	21.5	237.2	2	P600	预览	样片与订购
5KP12A-Q 5KP12CA-Q	12	13.3 14.7	5	19.9	256.3	2	P600	预览	样片与订购
5KP11A-Q 5KP11CA-Q	11	12.2 13.5	5	18.2	280.2	2	P600	预览	样片与订购
5KP10A-Q 5KP10CA-Q	10	11.1 12.3	5	17	300	10	P600	预览	样片与订购
5KP9.0A-Q 5KP9.0CA-Q	9	10 11.1	5	15.4	331.2	20	P600	预览	样片与订购
5KP8.5A-Q 5KP8.5CA-Q	8.5	9.44 10.4	5	14.4	354.2	50	P600	预览	样片与订购
5KP8.0A-Q 5KP8.0CA-Q	8	8.89 9.83	5	13.6	375	150	P600	预览	样片与订购
5KP7.5A-Q 5KP7.5CA-Q	7.5	8.33 9.21	5	12.9	395.3	250	P600	预览	样片与订购
5KP7.0A-Q 5KP7.0CA-Q	7	7.78 8.6	50	12	425	800	P600	预览	样片与订购
5KP6.5A-Q 5KP6.5CA-Q	6.5	7.22 7.98	50	11.2	455.4	1000	P600	预览	样片与订购
5KP6.0A-Q 5KP6.0CA-Q	6	6.67 7.37	50	10.3	495.1	2000	P600	预览	样片与订购
5KP5.0A-Q 5KP5.0CA-Q	5	6.4 7	50	9.2	554.3	3000	P600	预览	样片与订购

工业级TVS

———

20KP

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
20KP300A 20KP300CA	300	335.1 374.08	5	483	41.8	2	P600	预览	样片与订购
20KP280A 20KP280CA	280	312.8 349.18	5	451	44.8	2	P600	预览	样片与订购
20KP256A 20KP256CA	256	286 319.27	5	412	49	2	P600	预览	样片与订购
20KP240A 20KP240CA	240	268.1 299.28	5	387	52.2	2	P600	预览	样片与订购
20KP232A 20KP232CA	232	259.1 289.24	5	374	54	2	P600	预览	样片与订购
20KP216A 20KP216CA	216	241.3 269.37	5	348	58	2	P600	预览	样片与订购
20KP204A 20KP204CA	204	227.9 254.41	5	329	61.4	2	P600	预览	样片与订购
20KP192A 20KP192CA	192	214.5 239.45	5	309	65.4	2	P600	预览	样片与订购
20KP180A 20KP180CA	180	201.1 224.49	5	291	69.4	2	P600	预览	样片与订购
20KP172A 20KP172CA	172	192.1 214.44	5	277	72.9	2	P600	预览	样片与订购
20KP160A 20KP160CA	160	178.7 199.49	5	258	78.3	2	P600	预览	样片与订购
20KP144A 20KP144CA	144	160.8 179.5	5	232	87.1	2	P600	预览	样片与订购
20KP132A 20KP132CA	132	147.4 164.54	5	213	94.8	2	P600	预览	样片与订购
20KP120A 20KP120CA	120	134 149.59	5	194	104.1	2	P600	预览	样片与订购
20KP112A 20KP112CA	112	125.1 139.65	5	182	111	2	P600	预览	样片与订购
20KP104A 20KP104CA	104	116.2 129.72	5	168	120.2	2	P600	预览	样片与订购
20KP96A 20KP96CA	96	107.2 119.67	5	155	130.3	2	P600	预览	样片与订购
20KP88A 20KP88CA	88	98.3 109.73	5	142	142.3	2	P600	预览	样片与订购
20KP80A 20KP80CA	80	89.4 99.8	5	130	155.4	2	P600	预览	样片与订购
20KP72A 20KP72CA	72	80.4 89.75	5	116	174.1	2	P600	预览	样片与订购
20KP68A 20KP68CA	68	76 84.84	5	110	183.6	2	P600	预览	样片与订购
20KP64A 20KP64CA	64	71.5 79.82	5	104	194.2	2	P600	预览	样片与订购
20KP60A 20KP60CA	60	67 74.79	5	97.6	207	2	P600	预览	样片与订购
20KP56A 20KP56CA	56	62.6 69.88	5	92.6	218.1	2	P600	预览	样片与订购
20KP52A 20KP52CA	52	58.1 64.86	5	85.8	235.4	2	P600	预览	样片与订购
20KP48A 20KP48CA	48	53.6 59.83	5	79.4	254.4	2	P600	预览	样片与订购
20KP44A 20KP44CA	44	49.1 54.81	5	72.7	277.9	2	P600	预览	样片与订购
20KP40A 20KP40CA	40	44.7 49.9	5	67.8	297.9	10	P600	预览	样片与订购
20KP36A 20KP36CA	36	40.2 44.88	5	61.5	328.5	20	P600	预览	样片与订购
20KP34A 20KP34CA	34	38 42.42	5	57.5	351.3	50	P600	预览	样片与订购
20KP32A 20KP32CA	32	35.74 39.9	5	54.3	372	150	P600	预览	样片与订购
20KP30A 20KP30CA	30	33.51 37.41	5	51.5	392.2	250	P600	预览	样片与订购
20KP28A 20KP28CA	28	31.28 34.92	50	48	420.8	800	P600	预览	样片与订购
20KP26A 20KP26CA	26	29.04 32.42	50	44.7	451.9	1000	P600	预览	样片与订购
20KP24A 20KP24CA	24	26.81 29.93	50	41.2	490.3	1500	P600	预览	样片与订购
20KP20A 20KP20CA	20	22.34 24.94	50	36.8	548.9	2000	P600	预览	样片与订购
20KP17A 20KP17CA	17	18.99 21.22	50	31	645.1	3000	P600	预览	样片与订购

工业级TVS

———

15KP

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
15KP280A 15KP280CA	280	312.8 349.45	5	454.5	33.2	2	P600	预览	样片与订购
15KP260A 15KP260CA	260	290.4 324.49	5	416.7	36.2	2	P600	预览	样片与订购
15KP240A 15KP240CA	240	268.1 299.53	5	384.6	39.3	2	P600	预览	样片与订购
15KP220A 15KP220CA	220	245.7 274.57	5	352.5	42.8	2	P600	预览	样片与订购
15KP200A 15KP200CA	200	223.4 249.61	5	319.1	47.3	2	P600	预览	样片与订购
15KP180A 15KP180CA	180	201.1 224.65	5	288.5	52.3	2	P600	预览	样片与订购
15KP170A 15KP170CA	170	189.9 212.17	5	272.7	55.4	2	P600	预览	样片与订购
15KP160A 15KP160CA	160	178.7 199.69	5	258.6	58.4	2	P600	预览	样片与订购
15KP150A 15KP150CA	150	167.6 187.21	5	241.9	62.4	2	P600	预览	样片与订购
15KP130A 15KP130CA	130	145.2 162.25	5	208.3	72.5	2	P600	预览	样片与订购
15KP120A 15KP120CA	120	134 149.76	5	192.3	78.5	2	P600	预览	样片与订购
15KP110A 15KP110CA	110	122.9 137.28	5	178.6	84.5	2	P600	预览	样片与订购
15KP100A 15KP100CA	100	111.7 124.8	5	161.3	93.6	2	P600	预览	样片与订购
15KP90A 15KP90CA	90	100.5 112.32	5	145.6	103.7	2	P600	预览	样片与订购
15KP85A 15KP85CA	85	94.9 106.08	5	137.6	109.7	2	P600	预览	样片与订购
15KP78A 15KP78CA	78	87.1 97.35	5	126.1	119.7	2	P600	预览	样片与订购
15KP75A 15KP75CA	75	83.8 93.6	5	122	123.8	2	P600	预览	样片与订购
15KP70A 15KP70CA	70	78.2 87.36	5	113.6	132.9	2	P600	预览	样片与订购
15KP64A 15KP64CA	64	71.5 79.87	5	104.2	144.9	2	P600	预览	样片与订购
15KP60A 15KP60CA	60	67 74.88	5	97.4	155	2	P600	预览	样片与订购
15KP58A 15KP58CA	58	64.8 72.39	5	93.8	161	2	P600	预览	样片与订购
15KP54A 15KP54CA	54	60.3 67.39	5	87.7	172.2	2	P600	预览	样片与订购
15KP51A 15KP51CA	51	57 63.65	5	82.9	182.1	2	P600	预览	样片与订购
15KP48A 15KP48CA	48	53.6 59.91	5	77.7	194.3	2	P600	预览	样片与订购
15KP45A 15KP45CA	45	50.3 56.16	5	72.8	207.4	2	P600	预览	样片与订购
15KP43A 15KP43CA	43	48 53.67	5	69.8	216.3	2	P600	预览	样片与订购
15KP40A 15KP40CA	40	44.7 49.92	5	65.8	229.5	2	P600	预览	样片与订购
15KP36A 15KP36CA	36	40.2 44.93	5	59.8	252.5	2	P600	预览	样片与订购
15KP33A 15KP33CA	33	36.9 41.19	5	54.7	276.1	2	P600	预览	样片与订购
15KP30A 15KP30CA	30	33.51 37.44	5	50.7	297.8	10	P600	预览	样片与订购
15KP28A 15KP28CA	28	31.28 34.95	5	47.5	317.9	25	P600	预览	样片与订购
15KP26A 15KP26CA	26	29.04 32.45	5	44	343.2	50	P600	预览	样片与订购
15KP24A 15KP24CA	24	26.81 29.95	5	40.7	371	150	P600	预览	样片与订购
15KP22A 15KP22CA	22	24.57 27.46	10	37.1	407	500	P600	预览	样片与订购
15KP20A 15KP20CA	20	22.34 24.96	20	34.3	440.2	1000	P600	预览	样片与订购
15KP18A 15KP18CA	18	20.11 22.65	50	30.9	488.7	1500	P600	预览	样片与订购
15KP17A 15KP17CA	17	18.99 21.22	50	29.3	515.4	2500	P600	预览	样片与订购

车规级TVS

———

P6KE-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
P6KE600A-Q P6KE600CA-Q	510	575.2 628.4	1	828	0.75	1	DO-15	预览	样片与订购
P6KE550A-Q P6KE550CA-Q	467	522.5 577.5	1	760	0.8	1	DO-15	预览	样片与订购
P6KE540A-Q P6KE540CA-Q	459	513 567	1	740	0.8	1	DO-15	预览	样片与订购
P6KE530A-Q P6KE530CA-Q	450	503.5 556.5	1	725	0.8	1	DO-15	预览	样片与订购
P6KE510A-Q P6KE510CA-Q	434	485 535	1	698	0.9	1	DO-15	预览	样片与订购
P6KE480A-Q P6KE480CA-Q	408	456 504	1	658	0.9	1	DO-15	预览	样片与订购
P6KE440A-Q P6KE440CA-Q	376	418 462	1	602	1	1	DO-15	预览	样片与订购
P6KE400A-Q P6KE400CA-Q	342	380 420	1	548	1.1	1	DO-15	预览	样片与订购
P6KE350A-Q P6KE350CA-Q	300	332 368	1	482	1.3	1	DO-15	预览	样片与订购
P6KE300A-Q P6KE300CA-Q	256	285 315	1	414	1.5	1	DO-15	预览	样片与订购
P6KE250A-Q P6KE250CA-Q	214	237 263	1	344	1.8	1	DO-15	预览	样片与订购
P6KE220A-Q P6KE220CA-Q	185	209 231	1	328	1.9	1	DO-15	预览	样片与订购
P6KE200A-Q P6KE200CA-Q	171	190 210	1	274	2.2	1	DO-15	预览	样片与订购
P6KE180A-Q P6KE180CA-Q	154	171 189	1	246	2.5	1	DO-15	预览	样片与订购
P6KE170A-Q P6KE170CA-Q	145	162 179	1	234	2.6	1	DO-15	预览	样片与订购
P6KE160A-Q P6KE160CA-Q	136	152 168	1	219	2.8	1	DO-15	预览	样片与订购
P6KE150A-Q P6KE150CA-Q	128	143 158	1	207	2.9	1	DO-15	预览	样片与订购
P6KE130A-Q P6KE130CA-Q	111	124 137	1	179	3.4	1	DO-15	预览	样片与订购
P6KE120A-Q P6KE120CA-Q	102	114 126	1	165	3.7	1	DO-15	预览	样片与订购
P6KE110A-Q P6KE110CA-Q	94	105 116	1	152	4	1	DO-15	预览	样片与订购
P6KE100A-Q P6KE100CA-Q	85.5	95 105	1	137	4.5	1	DO-15	预览	样片与订购
P6KE91A-Q P6KE91CA-Q	77.8	86.5 95.5	1	125	4.9	1	DO-15	预览	样片与订购
P6KE82A-Q P6KE82CA-Q	70.1	77.9 86.1	1	113	5.4	1	DO-15	预览	样片与订购
P6KE75A-Q P6KE75CA-Q	64.1	71.3 78.8	1	103	5.9	1	DO-15	预览	样片与订购
P6KE68A-Q P6KE68CA-Q	58.1	64.6 71.4	1	92	6.6	1	DO-15	预览	样片与订购
P6KE62A-Q P6KE62CA-Q	53	58.9 65.1	1	85	7.2	1	DO-15	预览	样片与订购
P6KE56A-Q P6KE56CA-Q	47.8	53.2 58.8	1	77	7.9	1	DO-15	预览	样片与订购
P6KE51A-Q P6KE51CA-Q	43.6	48.5 53.6	1	70.1	8.7	1	DO-15	预览	样片与订购
P6KE47A-Q P6KE47CA-Q	40.2	44.7 49.4	1	64.8	9.4	1	DO-15	预览	样片与订购
P6KE43A-Q P6KE43CA-Q	36.8	40.9 45.2	1	59.3	10.3	1	DO-15	预览	样片与订购
P6KE39A-Q P6KE39CA-Q	33.3	37.1 41	1	53.9	11.3	1	DO-15	预览	样片与订购
P6KE36A-Q P6KE36CA-Q	30.8	34.2 37.8	1	49.9	12.2	1	DO-15	预览	样片与订购
P6KE33A-Q P6KE33CA-Q	28.2	31.4 34.7	1	45.7	13.3	1	DO-15	预览	样片与订购
P6KE30A-Q P6KE30CA-Q	25.6	28.5 31.5	1	41.4	14.7	1	DO-15	预览	样片与订购
P6KE27A-Q P6KE27CA-Q	23.1	25.7 28.4	1	37.5	16.3	1	DO-15	预览	样片与订购
P6KE24A-Q P6KE24CA-Q	20.5	22.8 25.2	1	33.2	18.4	1	DO-15	预览	样片与订购
P6KE22A-Q P6KE22CA-Q	18.8	20.9 23.1	1	30.6	19.9	1	DO-15	预览	样片与订购
P6KE20A-Q P6KE20CA-Q	17.1	19 21	1	27.7	22	1	DO-15	预览	样片与订购
P6KE18A-Q P6KE18CA-Q	15.3	17.1 18.9	1	25.2	24.2	1	DO-15	预览	样片与订购
P6KE16A-Q P6KE16CA-Q	13.6	15.2 16.8	1	22.5	27.1	1	DO-15	预览	样片与订购
P6KE15A-Q P6KE15CA-Q	12.8	14.3 15.8	1	21.2	28.8	1	DO-15	预览	样片与订购
P6KE13A-Q P6KE13CA-Q	11.1	12.4 13.7	1	18.2	33.5	1	DO-15	预览	样片与订购
P6KE12A-Q P6KE12CA-Q	10.2	11.4 12.6	1	16.7	36.5	5	DO-15	预览	样片与订购
P6KE11A-Q P6KE11CA-Q	9.4	10.5 11.6	1	15.6	39.1	5	DO-15	预览	样片与订购
P6KE10A-Q P6KE10CA-Q	8.55	9.5 10.5	1	14.5	42.1	10	DO-15	预览	样片与订购
P6KE9.1A-Q P6KE9.1CA-Q	7.78	8.65 9.55	1	13.4	45.5	50	DO-15	预览	样片与订购
P6KE8.2A-Q P6KE8.2CA-Q	7.02	7.79 8.61	10	12.1	50.4	50	200	预览	样片与订购
P6KE7.5A-Q P6KE7.5CA-Q	6.4	7.13 7.88	10	11.3	54	500	DO-15	预览	样片与订购
P6KE6.8A-Q P6KE6.8CA-Q	5.8	6.45 7.14	10	10.5	58.1	1000	DO-15	预览	样片与订购

工业级TVS

———

5KP

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
5KP250A 5KP250CA	250	277 306	5	425	12	2	P600	预览	样片与订购
5KP220A 5KP220CA	220	246 272	5	371.1	13.7	2	P600	预览	样片与订购
5KP210A 5KP210CA	210	237 263	5	349.5	14.6	2	P600	预览	样片与订购
5KP200A 5KP200CA	200	224 247	5	329.2	15.5	2	P600	预览	样片与订购
5KP190A 5KP190CA	190	211 233	5	310	16.5	2	P600	预览	样片与订购
5KP180A 5KP180CA	180	201 222	5	292	17.5	2	P600	预览	样片与订购
5KP170A 5KP170CA	170	189 209	5	275	18.5	2	P600	预览	样片与订购
5KP160A 5KP160CA	160	178 197	5	259	19.7	2	P600	预览	样片与订购
5KP150A 5KP150CA	150	167 185	5	243	21	2	P600	预览	样片与订购
5KP130A 5KP130CA	130	144 159	5	209	24.4	2	P600	预览	样片与订购
5KP120A 5KP120CA	120	133 147	5	193	26.4	2	P600	预览	样片与订购
5KP110A 5KP110CA	110	122 135	5	177	28.8	2	P600	预览	样片与订购
5KP100A 5KP100CA	100	110 123	5	162	31.5	2	P600	预览	样片与订购
5KP90A 5KP90CA	90	100 111	5	146	34.9	2	P600	预览	样片与订购
5KP85A 5KP85CA	85	94.4 104	5	137	37.2	2	P600	预览	样片与订购
5KP78A 5KP78CA	78	86.7 95.8	5	126	40.5	2	P600	预览	样片与订购
5KP75A 5KP75CA	75	83.3 92.1	5	121	42.1	2	P600	预览	样片与订购
5KP70A 5KP70CA	70	77.8 86	5	113	45.1	2	P600	预览	样片与订购
5KP64A 5KP64CA	64	71.1 78.6	5	103	49.5	2	P600	预览	样片与订购
5KP60A 5KP60CA	60	66.7 73.7	5	96.8	52.7	2	P600	预览	样片与订购
5KP58A 5KP58CA	58	64.4 71.2	5	93.6	54.5	2	P600	预览	样片与订购
5KP54A 5KP54CA	54	60 66.3	5	87.1	58.6	2	P600	预览	样片与订购
5KP51A 5KP51CA	51	56.7 62.7	5	82.4	61.9	2	P600	预览	样片与订购
5KP48A 5KP48CA	48	53.3 58.9	5	77.4	65.9	2	P600	预览	样片与订购
5KP45A 5KP45CA	45	50 55.3	5	72.7	70.2	2	P600	预览	样片与订购
5KP43A 5KP43CA	43	47.8 52.8	5	69.4	73.5	2	P600	预览	样片与订购
5KP40A 5KP40CA	40	44.4 49.1	5	64.5	79.1	2	P600	预览	样片与订购
5KP36A 5KP36CA	36	40 44.2	5	58.1	87.8	2	P600	预览	样片与订购
5KP33A 5KP33CA	33	36.7 40.6	5	53.3	95.7	2	P600	预览	样片与订购
5KP30A 5KP30CA	30	33.3 36.8	5	48.4	105.4	2	P600	预览	样片与订购
5KP28A 5KP28CA	28	31.1 34.4	5	45.4	112.3	2	P600	预览	样片与订购
5KP26A 5KP26CA	26	28.9 28.9	5	42.1	121.1	2	P600	预览	样片与订购
5KP24A 5KP24CA	24	26.7 29.5	5	38.9	131.1	2	P600	预览	样片与订购
5KP22A 5KP22CA	22	24.4 26.9	5	35.5	143.7	2	P600	预览	样片与订购
5KP20A 5KP20CA	20	22.2 24.5	5	32.4	157.4	2	P600	预览	样片与订购
5KP18A 5KP18CA	18	20 22.1	5	29.2	174.7	2	P600	预览	样片与订购
5KP17A 5KP17CA	17	18.9 20.9	5	27.6	184.8	2	P600	预览	样片与订购
5KP16A 5KP16CA	16	17.8 19.7	5	26	196.2	2	P600	预览	样片与订购
5KP15A 5KP15CA	15	16.7 18.5	5	24.4	209	2	P600	预览	样片与订购
5KP14A 5KP14CA	14	15.6 17.2	5	23.2	219.8	2	P600	预览	样片与订购
5KP13A 5KP13CA	13	14.4 15.9	5	21.5	237.2	2	P600	预览	样片与订购
5KP12A 5KP12CA	12	13.3 14.7	5	19.9	256.3	2	P600	预览	样片与订购
5KP11A 5KP11CA	11	12.2 13.5	5	18.2	280.2	2	P600	预览	样片与订购
5KP10A 5KP10CA	10	11.1 12.3	5	17	300	10	P600	预览	样片与订购
5KP9.0A 5KP9.0CA	9	10 11.1	5	15.4	331.2	20	P600	预览	样片与订购
5KP8.5A 5KP8.5CA	8.5	9.44 10.4	5	14.4	354.2	20	P600	预览	样片与订购
5KP8.0A 5KP8.0CA	8	8.89 9.83	5	13.6	375	150	P600	预览	样片与订购
5KP7.5A 5KP7.5CA	7.5	8.33 9.21	5	12.9	395.3	250	P600	预览	样片与订购
5KP7.0A 5KP7.0CA	7	7.78 8.6	50	12	425	800	P600	预览	样片与订购
5KP6.5A 5KP6.5CA	6.5	7.22 7.98	50	11.2	455.4	1000	P600	预览	样片与订购
5KP6.0A 5KP6.0CA	6	6.67 7.37	50	10.3	495.1	2000	P600	预览	样片与订购
5KP5.0A 5KP5.0CA	5	6.4 7	50	9.2	554.3	3000	P600	预览	样片与订购

车规级TVS

———

SM8S

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
SM8S58A SM8S58CA	58	64.4 71.2	5	93.6	70.5	2	DO-218AB	预览	样片与订购
SM8S48A SM8S48CA	48	53.3 58.9	5	77.4	85.3	2	DO-218AB	预览	样片与订购
SM8S43A SM8S43CA	43	47.8 52.8	5	69.4	95.1	2	DO-218AB	预览	样片与订购
SM8S40A SM8S40CA	40	44.4 49.1	5	64.5	102	2	DO-218AB	预览	样片与订购
SM8S36A SM8S36CA	36	40 44.2	5	58.1	114	2	DO-218AB	预览	样片与订购
SM8S33A SM8S33CA	33	36.7 40.6	5	53.3	124	2	DO-218AB	预览	样片与订购
SM8S30A SM8S30CA	30	33.3 36.8	5	48.4	136	2	DO-218AB	预览	样片与订购
SM8S28A SM8S28CA	28	31.1 34.4	5	45.4	145	2	DO-218AB	预览	样片与订购
SM8S26A SM8S26CA	26	28.9 31.9	5	42.1	157	2	DO-218AB	预览	样片与订购
SM8S24A SM8S24CA	24	26.7 29.5	5	38.9	170	2	DO-218AB	预览	样片与订购
SM8S22A SM8S22CA	22	24.4 26.9	5	35.5	186	2	DO-218AB	预览	样片与订购
SM8S20A SM8S20CA	20	22.2 24.5	5	32.4	204	2	DO-218AB	预览	样片与订购
SM8S18A SM8S18CA	18	20 22.1	5	29.2	226	2	DO-218AB	预览	样片与订购

车规级TVS

———

5.0SMDJ-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
5.0SMDJ170A-Q 5.0SMDJ170CA-Q	170	189 209	1	275	18.2	2	SMC	预览	样片与订购
5.0SMDJ160A-Q 5.0SMDJ160CA-Q	160	178 197	1	259	19.3	2	SMC	预览	样片与订购
5.0SMDJ150A-Q 5.0SMDJ150CA-Q	150	167 185	1	243	20.6	2	SMC	预览	样片与订购
5.0SMDJ130A-Q 5.0SMDJ130CA-Q	130	144 159	1	209	24	2	SMC	预览	样片与订购
5.0SMDJ120A-Q 5.0SMDJ120CA-Q	120	133 147	1	193	26	2	SMC	预览	样片与订购
5.0SMDJ110A-Q 5.0SMDJ110CA-Q	110	122 135	1	177	28.3	2	SMC	预览	样片与订购
5.0SMDJ100A-Q 5.0SMDJ100CA-Q	100	111 123	1	162	30.9	2	SMC	预览	样片与订购
5.0SMDJ90A-Q 5.0SMDJ90CA-Q	90	100 111	1	146	34.3	2	SMC	预览	样片与订购
5.0SMDJ85A-Q 5.0SMDJ85CA-Q	85	94.4 104	1	137	36.5	2	SMC	预览	样片与订购
5.0SMDJ78A-Q 5.0SMDJ78CA-Q	78	86.7 95.8	1	126	39.7	2	SMC	预览	样片与订购
5.0SMDJ75A-Q 5.0SMDJ75CA-Q	75	83.3 92.1	1	121	41.4	2	SMC	预览	样片与订购
5.0SMDJ70A-Q 5.0SMDJ70CA-Q	70	77.8 86	1	113	44.3	2	SMC	预览	样片与订购
5.0SMDJ64A-Q 5.0SMDJ64CA-Q	64	71.1 78.6	1	103	48.6	2	SMC	预览	样片与订购
5.0SMDJ60A-Q 5.0SMDJ60CA-Q	60	66.7 73.7	1	96.8	51.7	2	SMC	预览	样片与订购
5.0SMDJ58A-Q 5.0SMDJ58CA-Q	58	64.4 71.2	1	93.6	53.5	2	SMC	预览	样片与订购
5.0SMDJ54A-Q 5.0SMDJ54CA-Q	54	60 66.3	1	87.1	57.5	2	SMC	预览	样片与订购
5.0SMDJ51A-Q 5.0SMDJ51CA-Q	51	56.7 62.7	1	82.4	60.7	2	SMC	预览	样片与订购
5.0SMDJ48A-Q 5.0SMDJ48CA-Q	48	53.3 58.9	1	77.4	64.7	2	SMC	预览	样片与订购
5.0SMDJ45A-Q 5.0SMDJ45CA-Q	45	50 55.3	1	72.7	68.8	2	SMC	预览	样片与订购
5.0SMDJ43A-Q 5.0SMDJ43CA-Q	43	47.8 52.8	1	69.4	72.1	2	SMC	预览	样片与订购
5.0SMDJ40A-Q 5.0SMDJ40CA-Q	40	44.4 49.1	1	64.5	77.6	2	SMC	预览	样片与订购
5.0SMDJ36A-Q 5.0SMDJ36CA-Q	36	40 44.2	1	58.1	86.1	2	SMC	预览	样片与订购
5.0SMDJ33A-Q 5.0SMDJ33CA-Q	33	36.7 40.6	1	53.3	93.9	2	SMC	预览	样片与订购
5.0SMDJ30A-Q 5.0SMDJ30CA-Q	30	33.3 36.8	1	48.4	103	2	SMC	预览	样片与订购
5.0SMDJ28A-Q 5.0SMDJ28CA-Q	28	31.1 34.4	1	45.4	110	2	SMC	预览	样片与订购
5.0SMDJ26A-Q 5.0SMDJ26CA-Q	26	28.9 31.9	1	42.1	119	2	SMC	预览	样片与订购
5.0SMDJ24A-Q 5.0SMDJ24CA-Q	24	26.7 29.5	1	38.9	129	2	SMC	预览	样片与订购
5.0SMDJ22A-Q 5.0SMDJ22CA-Q	22	24.4 26.9	1	35.5	141	5	SMC	预览	样片与订购
5.0SMDJ20A-Q 5.0SMDJ20CA-Q	20	22.2 24.5	1	32.4	155	5	SMC	预览	样片与订购
5.0SMDJ18A-Q 5.0SMDJ18CA-Q	18	20 22.1	1	29.2	172	10	SMC	预览	样片与订购
5.0SMDJ17A-Q 5.0SMDJ17CA-Q	17	18.9 20.9	1	27.6	181	20	SMC	预览	样片与订购
5.0SMDJ16A-Q 5.0SMDJ16CA-Q	16	17.8 19.7	1	26	193	50	SMC	预览	样片与订购
5.0SMDJ15A-Q 5.0SMDJ15CA-Q	15	16.7 18.5	1	24.4	205	100	SMC	预览	样片与订购
5.0SMDJ14A-Q 5.0SMDJ14CA-Q	14	15.6 17.2	10	23.2	216	200	SMC	预览	样片与订购
5.0SMDJ13A-Q 5.0SMDJ13CA-Q	13	14.4 15.9	10	21.5	233	500	SMC	预览	样片与订购
5.0SMDJ12A-Q 5.0SMDJ12CA-Q	12	13.3 14.7	10	19.9	252	800	SMC	预览	样片与订购
5.0SMDJ11A-Q 5.0SMDJ11CA-Q	11	12.2 13.5	10	18.2	275	800	SMC	预览	样片与订购

工业级TVS

———

1.5KE

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
1.5KE600A 1.5KE600CA	510	575.2 628.4	1	828	1.8	1	DO-201	预览	样片与订购
1.5KE550A 1.5KE550CA	467	522.5 577.5	1	760	2	1	DO-201	预览	样片与订购
1.5KE540A 1.5KE540CA	459	513 567	1	740	2	1	DO-201	预览	样片与订购
1.5KE530A 1.5KE530CA	450	503.5 556.5	1	725	2.1	1	DO-201	预览	样片与订购
1.5KE510A 1.5KE510CA	434	485 535	1	698	2.1	1	DO-201	预览	样片与订购
1.5KE480A 1.5KE480CA	408	456 504	1	658	2.3	1	DO-201	预览	样片与订购
1.5KE440A 1.5KE440CA	376	418 462	1	602	2.5	1	DO-201	预览	样片与订购
1.5KE400A 1.5KE400CA	342	380 420	1	548	2.8	1	DO-201	预览	样片与订购
1.5KE350A 1.5KE350CA	300	332 368	1	482	3.2	1	DO-201	预览	样片与订购
1.5KE300A 1.5KE300CA	256	285 315	1	414	3.7	1	DO-201	预览	样片与订购
1.5KE250A 1.5KE250CA	214	237 263	1	344	4.4	1	DO-201	预览	样片与订购
1.5KE220A 1.5KE220CA	185	209 231	1	328	4.6	1	DO-201	预览	样片与订购
1.5KE200A 1.5KE200CA	171	190 210	1	274	5.5	1	DO-201	预览	样片与订购
1.5KE180A 1.5KE180CA	154	171 189	1	246	6.2	1	DO-201	预览	样片与订购
1.5KE170A 1.5KE170CA	145	162 179	1	234	6.5	1	DO-201	预览	样片与订购
1.5KE160A 1.5KE160CA	136	152 168	1	219	6.9	1	DO-201	预览	样片与订购
1.5KE150A 1.5KE150CA	128	143 158	1	207	7.3	1	DO-201	预览	样片与订购
1.5KE130A 1.5KE130CA	111	124 137	1	179	8.5	1	DO-201	预览	样片与订购
1.5KE120A 1.5KE120CA	102	114 126	1	165	9.2	1	DO-201	预览	样片与订购
1.5KE110A 1.5KE110CA	94	105 116	1	152	10	1	DO-201	预览	样片与订购
1.5KE100A 1.5KE100CA	85.5	95 105	1	137	11.1	1	DO-201	预览	样片与订购
1.5KE91A 1.5KE91CA	77.8	86.5 95.5	1	125	12.2	1	DO-201	预览	样片与订购
1.5KE82A 1.5KE82CA	70.1	77.9 86.1	1	113	13.5	1	DO-201	预览	样片与订购
1.5KE75A 1.5KE75CA	64.1	71.3 78.8	1	103	14.8	1	DO-201	预览	样片与订购
1.5KE68A 1.5KE68CA	58.1	64.6 71.4	1	92	16.5	1	DO-201	预览	样片与订购
1.5KE62A 1.5KE62CA	53	58.9 65.1	1	92	16.5	1	DO-201	预览	样片与订购
1.5KE56A 1.5KE56CA	47.8	53.2 58.8	1	77	19.7	1	DO-201	预览	样片与订购
1.5KE51A 1.5KE51CA	43.6	48.5 53.6	1	70.1	21.7	1	DO-201	预览	样片与订购
1.5KE47A 1.5KE47CA	40.2	44.7 49.4	1	64.8	23.5	1	DO-201	预览	样片与订购
1.5KE43A 1.5KE43CA	36.8	40.9 45.2	1	59.3	25.6	1	DO-201	预览	样片与订购
1.5KE39A 1.5KE39CA	33.3	37.1 41	1	53.9	28.2	1	DO-201	预览	样片与订购
1.5KE36A 1.5KE36CA	30.8	34.2 37.8	1	49.9	30.5	1	DO-201	预览	样片与订购
1.5KE33A 1.5KE33CA	28.2	31.4 34.7	1	45.7	33.3	1	DO-201	预览	样片与订购
1.5KE30A 1.5KE30CA	25.6	28.5 31.5	1	41.4	36.7	1	DO-201	预览	样片与订购
1.5KE27A 1.5KE27CA	23.1	25.7 28.4	1	37.5	40.5	1	DO-201	预览	样片与订购
1.5KE24A 1.5KE24CA	20.5	22.8 25.2	1	33.2	45.8	1	DO-201	预览	样片与订购
1.5KE22A 1.5KE22CA	18.8	20.9 23.1	1	30.6	49.7	1	DO-201	预览	样片与订购
1.5KE20A 1.5KE20CA	17.1	19 21	1	27.7	54.9	1	DO-201	预览	样片与订购
1.5KE18A 1.5KE18CA	15.3	17.1 18.9	1	25.2	60.3	1	DO-201	预览	样片与订购
1.5KE16A 1.5KE16CA	13.6	15.2 16.8	1	22.5	67.6	1	DO-201	预览	样片与订购
1.5KE15A 1.5KE15CA	12.8	14.3 15.8	1	21.2	71.7	1	DO-201	预览	样片与订购
1.5KE13A 1.5KE13CA	11.1	12.4 13.7	1	18.2	83.5	1	DO-201	预览	样片与订购
1.5KE12A 1.5KE12CA	10.2	11.4 12.6	1	91	83.5	5	DO-201	预览	样片与订购
1.5KE11A 1.5KE11CA	9.4	10.5 11.6	1	15.6	97.4	5	DO-201	预览	样片与订购
1.5KE10A 1.5KE10CA	8.55	9.5 10.5	1	14.5	104.8	10	DO-201	预览	样片与订购
1.5KE9.1A 1.5KE9.1CA	7.78	8.65 9.55	1	13.4	113.4	50	DO-201	预览	样片与订购
1.5KE8.2A 1.5KE8.2CA	7.02	7.79 8.61	10	12.1	125.6	200	DO-201	预览	样片与订购
1.5KE7.5A 1.5KE7.5CA	6.4	7.13 7.88	10	11.3	134.5	500	DO-201	预览	样片与订购
1.5KE6.8A 1.5KE6.8CA	5.8	6.45 7.14	10	10.5	144.8	1000	DO-201	预览	样片与订购

车规级TVS

———

SMDJ-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
SMDJ220A-Q SMDJ220CA-Q	220	246 272	1	356	8.4	1	SMC	预览	样片与订购
SMDJ210A-Q SMDJ210CA-Q	210	237 263	1	340	8.8	1	SMC	预览	样片与订购
SMDJ200A-Q SMDJ200CA-Q	200	224 247	1	324	9.3	1	SMC	预览	样片与订购
SMDJ190A-Q SMDJ190CA-Q	190	211 233	1	308	9.7	1	SMC	预览	样片与订购
SMDJ180A-Q SMDJ180CA-Q	180	201 222	1	292	10.3	1	SMC	预览	样片与订购
SMDJ170A-Q SMDJ170CA-Q	170	189 209	1	275	10.9	1	SMC	预览	样片与订购
SMDJ160A-Q SMDJ160CA-Q	160	178 197	1	259	11.6	1	SMC	预览	样片与订购
SMDJ150A-Q SMDJ150CA-Q	150	167 185	1	243	12.3	1	SMC	预览	样片与订购
SMDJ130A-Q SMDJ130CA-Q	130	144 159	1	209	14.4	1	SMC	预览	样片与订购
SMDJ120A-Q SMDJ120CA-Q	120	133 147	1	193	15.5	1	SMC	预览	样片与订购
SMDJ110A-Q SMDJ110CA-Q	110	122 135	1	177	16.9	1	SMC	预览	样片与订购
SMDJ100A-Q SMDJ100CA-Q	100	111 123	1	162	18.5	1	SMC	预览	样片与订购
SMDJ90A-Q SMDJ90CA-Q	90	100 111	1	146	20.5	1	SMC	预览	样片与订购
SMDJ85A-Q SMDJ85CA-Q	85	94.4 104	1	137	21.9	1	SMC	预览	样片与订购
SMDJ78A-Q SMDJ78CA-Q	78	86.7 95.8	1	126	23.8	1	SMC	预览	样片与订购
SMDJ75A-Q SMDJ75CA-Q	75	83.3 92.1	1	121	24.8	1	SMC	预览	样片与订购
SMDJ70A-Q SMDJ70CA-Q	70	77.8 86	1	113	26.5	1	SMC	预览	样片与订购
SMDJ64A-Q SMDJ64CA-Q	64	71.1 78.6	1	103	29.1	1	SMC	预览	样片与订购
SMDJ60A-Q SMDJ60CA-Q	60	66.7 73.7	1	96.8	31	1	SMC	预览	样片与订购
SMDJ58A-Q SMDJ58CA-Q	58	64.4 71.2	1	93.6	32.1	1	SMC	预览	样片与订购
SMDJ54A-Q SMDJ54CA-Q	54	60 66.3	1	87.1	34.4	1	SMC	预览	样片与订购
SMDJ51A-Q SMDJ51CA-Q	51	56.7 62.7	1	82.4	36.4	1	SMC	预览	样片与订购
SMDJ48A-Q SMDJ48CA-Q	48	53.3 58.9	1	77.4	38.8	1	SMC	预览	样片与订购
SMDJ45A-Q SMDJ45CA-Q	45	50 55.3	1	72.7	41.3	1	SMC	预览	样片与订购
SMDJ43A-Q SMDJ43CA-Q	43	47.8 52.8	1	69.4	43.2	1	SMC	预览	样片与订购
SMDJ40A-Q SMDJ40CA-Q	40	44.4 49.1	1	64.5	46.5	1	SMC	预览	样片与订购
SMDJ36A-Q SMDJ36CA-Q	36	40 44.2	1	58.1	51.6	1	SMC	预览	样片与订购
SMDJ33A-Q SMDJ33CA-Q	33	36.7 40.6	1	53.3	56.3	1	SMC	预览	样片与订购
SMDJ30A-Q SMDJ30CA-Q	30	33.3 36.8	1	48.4	62	1	SMC	预览	样片与订购
SMDJ28A-Q SMDJ28CA-Q	28	31.1 34.4	1	45.4	66.1	1	SMC	预览	样片与订购
SMDJ26A-Q SMDJ26CA-Q	26	28.9 31.9	1	42.1	71.3	1	SMC	预览	样片与订购
SMDJ24A-Q SMDJ24CA-Q	24	26.7 29.5	1	38.9	77.1	1	SMC	预览	样片与订购
SMDJ22A-Q SMDJ22CA-Q	22	24.4 26.9	1	35.5	84.5	1	SMC	预览	样片与订购
SMDJ20A-Q SMDJ20CA-Q	20	22.2 24.5	1	32.4	92.6	1	SMC	预览	样片与订购
SMDJ18A-Q SMDJ18CA-Q	18	20 22.1	1	29.2	102.7	1	SMC	预览	样片与订购
SMDJ17A-Q SMDJ17CA-Q	17	18.9 20.9	1	27.6	108.7	1	SMC	预览	样片与订购
SMDJ16A-Q SMDJ16CA-Q	16	17.8 19.7	1	26	115.4	1	SMC	预览	样片与订购
SMDJ15A-Q SMDJ15CA-Q	15	16.7 18.5	1	24.4	123	1	SMC	预览	样片与订购
SMDJ14A-Q SMDJ14CA-Q	14	15.6 17.2	1	23.2	129.3	1	SMC	预览	样片与订购
SMDJ13A-Q SMDJ13CA-Q	13	14.4 15.9	1	21.5	139.5	1	SMC	预览	样片与订购
SMDJ12A-Q SMDJ12CA-Q	12	13.3 14.7	1	19.9	150.8	2	SMC	预览	样片与订购
SMDJ11A-Q SMDJ11CA-Q	11	12.2 13.5	1	18.2	164.8	2	SMC	预览	样片与订购
SMDJ10A-Q SMDJ10CA-Q	10	11.1 12.3	1	17	176.5	5	SMC	预览	样片与订购
SMDJ9.0A-Q SMDJ9.0CA-Q	9	10 11.1	1	15.4	194.8	10	SMC	预览	样片与订购
SMDJ8.5A-Q SMDJ8.5CA-Q	8.5	9.44 10.4	1	14.4	208.3	20	SMC	预览	样片与订购
SMDJ8.0A-Q SMDJ8.0CA-Q	8	8.89 9.83	1	13.6	220.6	50	SMC	预览	样片与订购
SMDJ7.5A-Q SMDJ7.5CA-Q	7.5	8.33 9.21	1	12.9	232.6	100	SMC	预览	样片与订购
SMDJ7.0A-Q SMDJ7.0CA-Q	7	7.78 8.6	10	12	250	200	SMC	预览	样片与订购
SMDJ6.5A-Q SMDJ6.5CA-Q	6.5	7.22 7.98	10	11.2	267.9	300	SMC	预览	样片与订购
SMDJ6.0A-Q SMDJ6.0CA-Q	6	6.67 7.37	10	10.3	291.3	600	SMC	预览	样片与订购
SMDJ5.0A-Q SMDJ5.0CA-Q	5	6.4 7	10	9.2	326.1	600	SMC	预览	样片与订购

工业级TVS

———

P6KE

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
P6KE600A P6KE600CA	510	575.2 628.4	1	828	0.75	1	DO-15	预览	样片与订购
P6KE550A P6KE550CA	467	522.5 577.5	1	760	0.8	1	DO-15	预览	样片与订购
P6KE540A P6KE540CA	459	513 567	1	740	0.8	1	DO-15	预览	样片与订购
P6KE530A P6KE530CA	450	503.5 556.5	1	725	0.8	1	DO-15	预览	样片与订购
P6KE510A P6KE510CA	434	485 535	1	698	0.9	1	DO-15	预览	样片与订购
P6KE480A P6KE480CA	408	456 504	1	658	0.9	1	DO-15	预览	样片与订购
P6KE440A P6KE440CA	376	418 462	1	602	1	1	DO-15	预览	样片与订购
P6KE400A P6KE400CA	342	380 420	1	548	1.1	1	DO-15	预览	样片与订购
P6KE350A P6KE350CA	300	332 368	1	482	1.3	1	DO-15	预览	样片与订购
P6KE250A P6KE250CA	214	237 263	1	344	1.8	1	DO-15	预览	样片与订购
P6KE220A P6KE220CA	185	209 231	1	328	1.9	1	DO-15	预览	样片与订购
P6KE200A P6KE200CA	171	190 210	1	274	2.2	1	DO-15	预览	样片与订购
P6KE180A P6KE180CA	154	171 189	1	246	2.5	1	DO-15	预览	样片与订购
P6KE170A P6KE170CA	145	162 179	1	234	2.6	1	DO-15	预览	样片与订购
P6KE160A P6KE160CA	136	152 168	1	219	2.8	1	DO-15	预览	样片与订购
P6KE150A P6KE150CA	128	143 158	1	207	2.9	1	DO-15	预览	样片与订购
P6KE130A P6KE130CA	111	124 137	1	179	3.4	1	DO-15	预览	样片与订购
P6KE120A P6KE120CA	102	114 126	1	165	3.7	1	DO-15	预览	样片与订购
P6KE110A P6KE110CA	94	105 116	1	152	4	1	DO-15	预览	样片与订购
P6KE100A P6KE100CA	85.5	95 105	1	137	4.5	1	DO-15	预览	样片与订购
P6KE91A P6KE91CA	77.8	86.5 95.5	1	125	4.9	1	DO-15	预览	样片与订购
P6KE82A P6KE82CA	70.1	77.9 86.1	1	113	5.4	1	DO-15	预览	样片与订购
P6KE75A P6KE75CA	64.1	71.3 78.8	1	103	5.9	1	DO-15	预览	样片与订购
P6KE68A P6KE68CA	58.1	64.6 71.4	1	92	6.6	1	DO-15	预览	样片与订购
P6KE62A P6KE62CA	53	58.9 65.1	1	85	7.2	1	DO-15	预览	样片与订购
P6KE62A P6KE62CA	53	58.9 65.1	1	85	7.2	1	DO-15	预览	样片与订购
P6KE56A P6KE56CA	47.8	53.2 58.8	1	77	7.9	1	DO-15	预览	样片与订购
P6KE51A P6KE51CA	43.6	48.5 53.6	1	70.1	8.7	1	DO-15	预览	样片与订购
P6KE47A P6KE47CA	40.2	44.7 49.4	1	64.8	9.4	1	DO-15	预览	样片与订购
P6KE43A P6KE43CA	36.8	40.9 45.2	1	59.3	10.3	1	DO-15	预览	样片与订购
P6KE39A P6KE39CA	33.3	37.1 41	1	53.9	11.3	1	DO-15	预览	样片与订购
P6KE36A P6KE36CA	30.8	34.2 37.8	1	49.9	12.2	1	DO-15	预览	样片与订购
P6KE33A P6KE33CA	28.2	31.4 34.7	1	45.7	13.3	1	DO-15	预览	样片与订购
P6KE30A P6KE30CA	25.6	28.5 31.5	1	41.4	14.7	1	DO-15	预览	样片与订购
P6KE27A P6KE27CA	23.1	25.7 28.4	1	37.5	16.3	1	DO-15	预览	样片与订购
P6KE24A P6KE24CA	20.5	22.8 25.2	1	33.2	18.4	1	DO-15	预览	样片与订购
P6KE22A P6KE22CA	18.8	20.9 23.1	1	30.6	19.9	1	DO-15	预览	样片与订购
P6KE20A P6KE20CA	17.1	19 21	1	27.7	22	1	DO-15	预览	样片与订购
P6KE18A P6KE18CA	15.3	17.1 18.9	1	25.2	24.2	1	DO-15	预览	样片与订购
P6KE16A P6KE16CA	13.6	15.2 16.8	1	22.5	27.1	1	DO-15	预览	样片与订购
P6KE15A P6KE15CA	12.8	14.3 15.8	1	21.2	28.8	1	DO-15	预览	样片与订购
P6KE13A P6KE13CA	11.1	12.4 13.7	1	18.2	33.5	1	DO-15	预览	样片与订购
P6KE12A P6KE12CA	10.2	11.4 12.6	1	16.7	36.5	5	DO-15	预览	样片与订购
P6KE11A P6KE11CA	9.4	10.5 11.6	1	15.6	39.1	5	DO-15	预览	样片与订购
P6KE10A P6KE10CA	8.55	9.5 10.5	1	14.5	42.1	10	DO-15	预览	样片与订购
P6KE9.1A P6KE9.1CA	7.78	8.65 9.55	1	13.4	45.5	50	DO-15	预览	样片与订购
P6KE8.2A P6KE8.2CA	7.02	7.79 8.61	10	12.1	50.4	200	DO-15	预览	样片与订购
P6KE7.5A P6KE7.5CA	6.4	7.13 7.88	10	11.3	54	500	DO-15	预览	样片与订购
P6KE6.8A P6KE6.8CA	5.8	6.45 7.14	10	10.5	58.1	1000	DO-15	预览	样片与订购

车规级TVS

———

1.5SMC-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
1.5SMC600A-Q 1.5SMC600CA-Q	510	575.2 628.4	1	828	2.5	1	SMC	预览	样片与订购
1.5SMC550A-Q 1.5SMC550CA-Q	467	522.5 577.5	1	760	2.7	1	SMC	预览	样片与订购
1.5SMC540A-Q 1.5SMC540CA-Q	459	513 567	1	740	2.8	1	SMC	预览	样片与订购
1.5SMC530A-Q 1.5SMC530CA-Q	450	503.5 556.5	1	725	2.8	1	SMC	预览	样片与订购
1.5SMC510A-Q 1.5SMC510CA-Q	434	485 535	1	698	2.9	1	SMC	预览	样片与订购
1.5SMC480A-Q 1.5SMC480CA-Q	408	456 504	1	658	3.1	1	SMC	预览	样片与订购
1.5SMC440A-Q 1.5SMC440CA-Q	376	418 462	1	602	3.4	1	SMC	预览	样片与订购
1.5SMC400A-Q 1.5SMC400CA-Q	342	380 420	1	548	3.7	1	SMC	预览	样片与订购
1.5SMC350A-Q 1.5SMC350CA-Q	300	332 368	1	482	3.2	1	SMC	预览	样片与订购
1.5SMC300A-Q 1.5SMC300CA-Q	256	285 315	1	414	3.7	1	SMC	预览	样片与订购
1.5SMC250A-Q 1.5SMC250CA-Q	214	237 263	1	344	4.4	1	SMC	预览	样片与订购
1.5SMC220A-Q 1.5SMC220CA-Q	185	209 231	1	328	4.6	1	SMC	预览	样片与订购
1.5SMC200A-Q 1.5SMC200CA-Q	171	190 210	1	274	5.5	1	SMC	预览	样片与订购
1.5SMC180A-Q 1.5SMC180CA-Q	154	171 189	1	246	6.2	1	SMC	预览	样片与订购
1.5SMC170A-Q 1.5SMC170CA-Q	145	162 179	1	234	6.5	1	SMC	预览	样片与订购
1.5SMC160A-Q 1.5SMC160CA-Q	136	152 168	1	219	6.9	1	SMC	预览	样片与订购
1.5SMC150A-Q 1.5SMC150CA-Q	128	143 158	1	207	7.3	1	SMC	预览	样片与订购
1.5SMC130A-Q 1.5SMC130CA-Q	111	124 137	1	179	8.5	1	SMC	预览	样片与订购
1.5SMC120A-Q 1.5SMC120CA-Q	102	114 126	1	165	9.2	1	SMC	预览	样片与订购
1.5SMC110A-Q 1.5SMC110CA-Q	94	105 116	1	152	10	1	SMC	预览	样片与订购
1.5SMC100A-Q 1.5SMC100CA-Q	85.5	95 105	1	137	11.1	1	SMC	预览	样片与订购
1.5SMC91A-Q 1.5SMC91CA-Q	77.8	86.5 95.5	1	125	12.2	1	SMC	预览	样片与订购
1.5SMC82A-Q 1.5SMC82CA-Q	70.1	77.9 86.1	1	113	13.5	1	SMC	预览	样片与订购
1.5SMC82A-Q 1.5SMC82CA-Q	70.1	77.9 86.1	1	113	13.5	1	SMC	预览	样片与订购
1.5SMC75A-Q 1.5SMC75CA-Q	64.1	71.3 78.8	1	103	14.8	1	SMC	预览	样片与订购
1.5SMC68A-Q 1.5SMC68CA-Q	58.1	64.6 71.4	1	92	16.5	1	SMC	预览	样片与订购
1.5SMC62A-Q 1.5SMC62CA-Q	53	58.9 65.1	1	85	17.9	1	SMC	预览	样片与订购
1.5SMC56A-Q 1.5SMC56CA-Q	47.8	53.2 58.8	1	77	19.7	1	SMC	预览	样片与订购
1.5SMC51A-Q 1.5SMC51CA-Q	43.6	48.5 53.6	1	70.1	21.7	1	SMC	预览	样片与订购
1.5SMC47A-Q 1.5SMC47CA-Q	40.2	44.7 49.4	1	64.8	23.5	1	SMC	预览	样片与订购
1.5SMC43A-Q 1.5SMC43CA-Q	36.8	40.9 45.2	1	59.3	25.6	1	SMC	预览	样片与订购
1.5SMC39A-Q 1.5SMC39CA-Q	33.3	37.1 41	1	53.9	28.2	1	SMC	预览	样片与订购
1.5SMC36A-Q 1.5SMC36CA-Q	30.8	34.2 37.8	1	49.9	30.5	1	SMC	预览	样片与订购
1.5SMC33A-Q 1.5SMC33CA-Q	28.2	31.4 34.7	1	45.7	33.3	1	SMC	预览	样片与订购
1.5SMC30A-Q 1.5SMC30CA-Q	25.6	28.5 31.5	1	41.4	36.7	1	SMC	预览	样片与订购
1.5SMC27A-Q 1.5SMC27CA-Q	23.1	25.7 28.4	1	37.5	40.5	1	SMC	预览	样片与订购
1.5SMC24A-Q 1.5SMC24CA-Q	20.5	22.8 25.2	1	33.2	45.8	1	SMC	预览	样片与订购
1.5SMC22A-Q 1.5SMC22CA-Q	18.8	20.9 23.1	1	30.6	49.7	1	SMC	预览	样片与订购
1.5SMC20A-Q 1.5SMC20CA-Q	17.1	19 21	1	27.7	54.9	1	SMC	预览	样片与订购
1.5SMC18A-Q 1.5SMC18CA-Q	15.3	17.1 18.9	1	25.2	60.3	1	SMC	预览	样片与订购
1.5SMC16A-Q 1.5SMC16CA-Q	13.6	15.2 16.8	1	22.5	67.6	1	SMC	预览	样片与订购
1.5SMC15A-Q 1.5SMC15CA-Q	12.8	14.3 15.8	1	21.2	71.7	1	SMC	预览	样片与订购
1.5SMC13A-Q 1.5SMC13CA-Q	11.1	12.4 13.7	1	18.2	83.5	1	SMC	预览	样片与订购
1.5SMC12A-Q 1.5SMC12CA-Q	10.2	11.4 12.6	1	16.7	91	5	SMC	预览	样片与订购
1.5SMC11A-Q 1.5SMC11CA-Q	9.4	10.5 11.6	1	15.6	97.4	5	SMC	预览	样片与订购
1.5SMC10A-Q 1.5SMC10CA-Q	8.55	9.5 10.5	1	14.5	104.8	10	SMC	预览	样片与订购
1.5SMC9.1A-Q 1.5SMC9.1CA-Q	7.78	8.65 9.55	1	13.4	113.4	50	SMC	预览	样片与订购
1.5SMC8.2A-Q 1.5SMC8.2CA-Q	7.02	7.79 8.61	10	12.1	125.6	200	SMC	预览	样片与订购
1.5SMC7.5A-Q 1.5SMC7.5CA-Q	6.4	7.13 7.88	10	11.3	134.5	500	SMC	预览	样片与订购
1.5SMC6.8A-Q 1.5SMC6.8CA-Q	5.8	6.45 7.14	10	10.5	144.8	1000	SMC	预览	样片与订购

工业级TVS

———

SA

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
SA220A SA220CA	220	246 272	1	356	1.4	1	DO-15	预览	样片与订购
SA210A SA210CA	210	237 263	1	340	1.5	1	DO-15	预览	样片与订购
SA200A SA200CA	200	224 247	1	324	1.5	1	DO-15	预览	样片与订购
SA190A SA190CA	190	211 233	1	308	1.6	1	DO-15	预览	样片与订购
SA180A SA180CA	180	201 222	1	292	1.7	1	DO-15	预览	样片与订购
SA170A SA170CA	170	189 209	1	275	1.9	1	DO-15	预览	样片与订购
SA160A SA160CA	160	178 197	1	259	2	1	DO-15	预览	样片与订购
SA150A SA150CA	150	167 185	1	243	2.1	1	DO-15	预览	样片与订购
SA130A SA130CA	130	144 159	1	209	2.4	1	DO-15	预览	样片与订购
SA130A SA130CA	130	144 159	1	209	2.4	1	DO-15	预览	样片与订购
SA120A SA120CA	120	133 147	1	193	2.6	1	DO-15	预览	样片与订购
SA110A SA110CA	110	122 135	1	177	2.9	1	DO-15	预览	样片与订购
SA100A SA100CA	100	111 123	1	162	3.1	1	DO-15	预览	样片与订购
SA90A SA90CA	90	100 111	1	146	3.5	1	DO-15	预览	样片与订购
SA85A SA85CA	85	94.4 104	1	137	3.7	1	DO-15	预览	样片与订购
SA78A SA78CA	78	86.7 95.8	1	126	4	1	DO-15	预览	样片与订购
SA75A SA75CA	75	83.3 92.1	1	121	4.2	1	DO-15	预览	样片与订购
SA70A SA70CA	70	77.8 86	1	113	4.5	1	DO-15	预览	样片与订购
SA64A SA64CA	64	71.1 78.6	1	103	5	1	DO-15	预览	样片与订购
SA60A SA60CA	60	66.7 73.7	1	96.8	5.3	1	DO-15	预览	样片与订购
SA58A SA58CA	58	64.4 71.2	1	93.6	5.4	1	DO-15	预览	样片与订购
SA54A SA54CA	54	60 66.3	1	87.1	5.9	1	DO-15	预览	样片与订购
SA51A SA51CA	51	56.7 62.7	1	82.4	6.2	1	DO-15	预览	样片与订购
SA48A SA48CA	48	53.3 58.9	1	77.4	6.6	1	DO-15	预览	样片与订购
SA45A SA45CA	45	50 55.3	1	72.7	7	1	DO-15	预览	样片与订购
SA43A SA43CA	43	47.8 52.8	1	69.4	7.3	1	DO-15	预览	样片与订购
SA40A SA40CA	40	44.4 49.1	1	64.5	7.9	1	DO-15	预览	样片与订购
SA36A SA36CA	36	40 44.2	1	58.1	8.8	1	DO-15	预览	样片与订购
SA33A SA33CA	33	36.7 40.6	1	53.3	9.6	1	DO-15	预览	样片与订购
SA30A SA30CA	30	33.3 36.8	1	48.4	10.5	1	DO-15	预览	样片与订购
SA28A SA28CA	28	31.1 34.4	1	45.4	11.2	1	DO-15	预览	样片与订购
SA26A SA26CA	26	28.9 31.9	1	42.1	12.1	1	DO-15	预览	样片与订购
SA24A SA24CA	24	26.7 29.5	1	38.9	13.1	1	DO-15	预览	样片与订购
SA22A SA22CA	22	24.4 26.9	1	35.5	14.4	1	DO-15	预览	样片与订购
SA20A SA20CA	20	22.2 24.5	1	32.4	15.7	1	DO-15	预览	样片与订购
SA18A SA18CA	18	20 22.1	1	29.2	17.5	1	DO-15	预览	样片与订购
SA17A SA17CA	17	18.9 20.9	1	27.6	18.5	1	DO-15	预览	样片与订购
SA16A SA16CA	16	17.8 19.7	1	26	19.6	1	DO-15	预览	样片与订购
SA15A SA15CA	15	16.7 18.5	1	24.4	20.9	1	DO-15	预览	样片与订购
SA14A SA14CA	14	15.6 17.2	1	23.2	22	1	DO-15	预览	样片与订购
SA13A SA13CA	13	14.4 15.9	1	21.5	23.7	1	DO-15	预览	样片与订购
SA12A SA12CA	12	13.3 14.7	1	19.9	25.6	1	DO-15	预览	样片与订购
SA11A SA11CA	11	12.2 13.5	1	18.2	28	1	DO-15	预览	样片与订购
SA10A SA10CA	10	11.1 12.3	1	17	30	3	DO-15	预览	样片与订购
SA9.0A SA9.0CA	9	10 11.1	1	15.4	33.1	5	DO-15	预览	样片与订购
SA8.5A SA8.5CA	8.5	9.44 10.4	1	14.4	35.4	10	DO-15	预览	样片与订购
SA8.0A SA8.0CA	8	8.89 9.83	1	13.6	37.5	25	DO-15	预览	样片与订购
SA7.5A SA7.5CA	7.5	8.33 9.21	1	12.9	39.5	50	DO-15	预览	样片与订购
SA7.0A SA7.0CA	7	7.78 8.6	10	12	42.5	150	DO-15	预览	样片与订购
SA6.5A SA6.5CA	6.5	7.22 7.98	10	11.2	45.5	400	DO-15	预览	样片与订购
SA6.0A SA6.0CA	6	6.67 7.37	10	10.3	49.5	600	DO-15	预览	样片与订购
SA5.0A SA5.0CA	5	6.4 7	10	9.2	55.4	600	DO-15	预览	样片与订购

车规级TVS

———

SMCJ-Q

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
SMCJ440A-Q SMCJ440CA-Q	440	492 543	1	713	2.1	1	SMC	预览	样片与订购
SMCJ400A-Q SMCJ400CA-Q	400	447 494	1	648	2.3	1	SMC	预览	样片与订购
SMCJ350A-Q SMCJ350CA-Q	350	391 432	1	567	2.6	1	SMC	预览	样片与订购
SMCJ300A-Q SMCJ300CA-Q	300	335 371	1	486	3.1	1	SMC	预览	样片与订购
SMCJ250A-Q SMCJ250CA-Q	250	279 309	1	405	3.7	1	SMC	预览	样片与订购
SMCJ220A-Q SMCJ220CA-Q	220	246 272	1	356	4.2	1	SMC	预览	样片与订购
SMCJ210A-Q SMCJ210CA-Q	210	237 263	1	340	4.4	1	SMC	预览	样片与订购
SMCJ200A-Q SMCJ200CA-Q	200	224 247	1	324	4.6	1	SMC	预览	样片与订购
SMCJ190A-Q SMCJ190CA-Q	190	211 233	1	308	4.8	1	SMC	预览	样片与订购
SMCJ180A-Q SMCJ180CA-Q	180	201 222	1	292	5.1	1	SMC	预览	样片与订购
SMCJ170A-Q SMCJ170CA-Q	170	189 209	1	275	5.5	1	SMC	预览	样片与订购
SMCJ160A-Q SMCJ160CA-Q	160	178 197	1	259	5.8	1	SMC	预览	样片与订购
SMCJ150A-Q SMCJ150CA-Q	150	167 185	1	243	6.2	1	SMC	预览	样片与订购
SMCJ130A-Q SMCJ130CA-Q	130	144 159	1	209	7.2	1	SMC	预览	样片与订购
SMCJ120A-Q SMCJ120CA-Q	120	133 147	1	193	7.8	1	SMC	预览	样片与订购
SMCJ110A-Q SMCJ110CA-Q	110	122 135	1	177	8.5	1	SMC	预览	样片与订购
SMCJ100A-Q SMCJ100CA-Q	100	111 123	1	162	9.3	1	SMC	预览	样片与订购
SMCJ90A-Q SMCJ90CA-Q	90	100 111	1	146	10.3	1	SMC	预览	样片与订购
SMCJ85A-Q SMCJ85CA-Q	85	94.4 104	1	137	11	1	SMC	预览	样片与订购
SMCJ78A-Q SMCJ78CA-Q	78	86.7 95.8	1	126	11.9	1	SMC	预览	样片与订购
SMCJ75A-Q SMCJ75CA-Q	75	83.3 92.1	1	121	12.4	1	SMC	预览	样片与订购
SMCJ70A-Q SMCJ70CA-Q	70	77.8 86	1	113	13.3	1	SMC	预览	样片与订购
SMCJ64A-Q SMCJ64CA-Q	64	71.1 78.6	1	103	14.6	1	SMC	预览	样片与订购
SMCJ60A-Q SMCJ60CA-Q	60	66.7 73.7	1	96.8	15.5	1	SMC	预览	样片与订购
SMCJ58A-Q SMCJ58CA-Q	58	64.4 71.2	1	93.6	16.1	1	SMC	预览	样片与订购
SMCJ54A-Q SMCJ54CA-Q	54	60 66.3	1	87.1	17.3	1	SMC	预览	样片与订购
SMCJ51A-Q SMCJ51CA-Q	51	56.7 62.7	1	82.4	18.2	1	SMC	预览	样片与订购
SMCJ48A-Q SMCJ48CA-Q	48	53.3 58.9	1	77.4	19.4	1	SMC	预览	样片与订购
SMCJ45A-Q SMCJ45CA-Q	45	50 55.3	1	72.7	20.6	1	SMC	预览	样片与订购
SMCJ43A-Q SMCJ43CA-Q	43	47.8 52.8	1	69.4	21.7	1	SMC	预览	样片与订购
SMCJ40A-Q SMCJ40CA-Q	40	44.4 49.1	1	64.5	23.3	1	SMC	预览	样片与订购
SMCJ36A-Q SMCJ36CA-Q	36	40 44.2	1	58.1	25.9	1	SMC	预览	样片与订购
SMCJ33A-Q SMCJ33CA-Q	33	36.7 40.6	1	53.3	28.2	1	SMC	预览	样片与订购
SMCJ30A-Q SMCJ30CA-Q	30	33.3 36.8	1	48.4	31	1	SMC	预览	样片与订购
SMCJ28A-Q SMCJ28CA-Q	28	31.1 34.4	1	45.4	33.1	1	SMC	预览	样片与订购
SMCJ26A-Q SMCJ26CA-Q	26	28.9 31.9	1	42.1	35.7	1	SMC	预览	样片与订购
SMCJ24A-Q SMCJ24CA-Q	24	26.7 29.5	1	38.9	38.6	1	SMC	预览	样片与订购
SMCJ22A-Q SMCJ22CA-Q	22	24.4 26.9	1	35.5	42.3	1	SMC	预览	样片与订购
SMCJ20A-Q SMCJ20CA-Q	20	22.2 24.5	1	32.4	46.3	1	SMC	预览	样片与订购
SMCJ18A-Q SMCJ18CA-Q	18	20 22.1	1	29.2	51.4	1	SMC	预览	样片与订购
SMCJ17A-Q SMCJ17CA-Q	17	18.9 20.9	1	27.6	54.4	1	SMC	预览	样片与订购
SMCJ16A-Q SMCJ16CA-Q	16	17.8 19.7	1	26	57.7	1	SMC	预览	样片与订购
SMCJ15A-Q SMCJ15CA-Q	15	16.7 18.5	1	24.4	61.5	1	SMC	预览	样片与订购

工业级TVS

———

P4KE

Part Number Uni. Bi.	Reverse Stand-Off Voltage VR(V)	Breakdown Voltage @IT VB MIn.(V) VB Max.(V)	Test Current IT(mA)	Maximum Clamping Voltage @IPP VC(V)	Peak Pulse Current IPP(A)	Reverse Leakage @VR IR(μA)	Package	specification
P4KE600A P4KE600CA	510	575.2 628.4	1	828	0.49	1	DO-41	预览	样片与订购
P4KE550A P4KE550CA	467	522.5 577.5	1	760	0.52	1	DO-41	预览	样片与订购
P4KE540A P4KE540CA	459	513 567	1	740	0.54	1	DO-41	预览	样片与订购
P4KE530A P4KE530CA	450	503.5 556.5	1	725	0.55	1	DO-41	预览	样片与订购
P4KE510A P4KE510CA	434	485 535	1	698	0.57	1	DO-41	预览	样片与订购
P4KE480A P4KE480CA	408	456 504	1	658	0.61	1	DO-41	预览	样片与订购
P4KE440A P4KE440CA	376	418 462	1	602	0.68	1	DO-41	预览	样片与订购
P4KE400A P4KE400CA	342	380 420	1	548	0.75	1	DO-41	预览	样片与订购
P4KE350A P4KE350CA	300	332 368	1	482	0.85	1	DO-41	预览	样片与订购
P4KE300A P4KE300CA	256	285 315	1	414	1	1	DO-41	预览	样片与订购
P4KE250A P4KE250CA	214	237 263	1	344	1.2	1	DO-41	预览	样片与订购
P4KE220A P4KE220CA	185	209 231	1	328	1.3	1	DO-41	预览	样片与订购
P4KE200A P4KE200CA	171	190 210	1	274	1.5	1	DO-41	预览	样片与订购
P4KE180A P4KE180CA	154	171 189	1	246	1.7	1	DO-41	预览	样片与订购
P4KE170A P4KE170CA	145	162 179	1	234	1.8	1	DO-41	预览	样片与订购

瞬态电压抑制二极管

静电抑制二极管

放电管

整流二极管

新能源汽车应用

网络通讯应用

监控安防应用

光伏储能系统保护

安规认证

环保证书

管理体系

主要合作机构

选型手册

企业新闻

产品新闻

通知通告

研发实力

生产品质

公司介绍

公司成就

发展历程

企业环境

企业文化

联系我们

加入我们

搜 索

高通流TVS

HP6KA-L-SD16

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Current Rating @8/20μs

Reverse Leakage @VDC

Package

高通流TVS

HP6KA-L-D16

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Current Rating @8/20μs

Reverse Leakage @VDC

Package

高通流TVS

HP6KA-L-S

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Current Rating @8/20μs

Reverse Leakage @VDC

Package

高通流TVS

HP3KA-L-D16

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Current Rating @8/20μs

Reverse Leakage @VDC

Package

高通流TVS

HP3KA-L-S

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Current Rating @8/20μs

Reverse Leakage @VDC

Package

工业级TVS

SM4F

Part Number

Reverse Stand-Off Voltage

Breakdown Voltage @IT

Test Current

Maximum Clamping Voltage @IPP

Peak Pulse Current

Reverse Leakage @VR

搜索
